Xu Qin, Qinghang Wang, Li Wang, Shouxin Xia, Haowei Zhai, Lingyu Zhao, Ying Zeng, Yan Song, and Bin Jiang, Interpretable machine learning-based stretch formability prediction of magnesium alloys, Int. J. Miner. Metall. Mater.,(2025). https://dx.doi.org/10.1007/s12613-024-3002-9 |
镁合金因其质轻、比强度高、阻尼减振等优点,具有广阔的应用前景,但其塑性变形能力较差,限制了其广泛应用。AZ31镁合金作为一种典型材料,其拉伸成形性研究对于拓展其应用具有重要意义。本研究旨在开发一个可解释的预测框架,通过结合极端梯度提升(XGBoost)模型和麻雀搜索算法(SSA),评估AZ31镁合金的拉伸成形性,以期为高成形性镁合金的开发提供理论支持和工具。研究从文献和实验中收集数据,提取了11个特征,包括微观结构(如晶粒尺寸、最大极强度、织构分散度等)、力学性能(如拉伸屈服强度、抗拉强度、断裂伸长率等)和测试条件(如板材厚度、冲头速度等)。通过皮尔逊相关系数和穷举筛选方法,确定了10个关键特征作为最终输入。基于这些特征,构建了SSA-XGBoost模型,并采用Erichsen指数(IE)作为模型输出,通过Shapley加性解释方法和XGBoost特征重要性分析,建立了关键特征与IE值之间的定量关系。研究结果表明,SSA-XGBoost模型表现出良好的预测性能,拟合优度(R²)达到0.91,显著优于传统机器学习模型。通过新数据集验证,模型预测的IE值与实验值之间的误差低于5%。研究发现,最大极强度(Imax)、拉伸屈服强度(TYS)、断裂伸长率(EL)、最大极位置的半径(r)、晶粒尺寸(GS)和强度差(∆S)是影响IE值的关键特征。本研究开发的SSA-XGBoost模型为AZ31镁合金拉伸成形性的预测提供了一个可靠且准确的工具,为高成形性镁合金的开发提供了新的思路和方法。
This study involved the development of an interpretable prediction framework to access the stretch formability of AZ31 magnesium alloys through the combination of the extreme gradient boosting (XGBoost) model with the sparrow search algorithm (SSA). Eleven features were extracted from the microstructures (e.g., grain size (GS), maximum pole intensity (Imax), degree of texture dispersion (μ), radius of maximum pole position (r), and angle of maximum pole position (A)), mechanical properties (e.g., tensile yield strength (TYS), ultimate tensile strength (UTS), elongation-to-failure (EL), and strength difference (∆S)) and test conditions (e.g., sheet thickness (t) and punch speed (v)) in the data collected from the literature and experiments. Pearson correlation coefficient and exhaustive screening methods identified ten key features (not including UTS) as the final inputs, and they enhanced the prediction accuracy of Index Erichsen (IE), which served as the model’s output. The newly developed SSA-XGBoost model exhibited an improved prediction performance, with a goodness of fit (R2) of 0.91 compared with traditional machine learning models. A new dataset (four samples) was prepared to validate the reliability and generalization capacity of this model, and below 5% errors were observed between predicted and experimental IE values. Based on this result, the quantitative relationship between the key features and IE values was established via Shapley additive explanation method and XGBoost feature importance analysis. Imax, TYS, EL, r, GS, and ΔS showed a crucial influence on the IE of 10 input features. This work offers a reliable and accurate tool for the prediction of the stretch formability of AZ31 magnesium alloys and provides insights into the development of high-formable magnesium alloys.
Magnesium (Mg) and its alloys are the most promising lightweight metallic materials with broad application prospects in the aerospace, automotive, and medical industries [1]. However, these materials frequently exhibit poor stretch formability at room temperature, which considerably limits their large-scale applications due to their low-symmetry hexagonal close-packed crystal structure [2]. A 2–3 mm Index Erichsen (IE), which is considerably lower than that beyond 15 mm in some aluminum (Al) alloys, was obtained in a strong basal-textured AZ31 alloy sheet [3–5]. Features of materials, particularly microstructural features, e.g., texture and grain size (GS), influence stretch formability. Texture weakening is generally an effective method for the activation of more basal slip systems, and it provides a large strain in the thickness direction [6–8]. The influence of GS on the formability of Mg alloys is a complex and unpredictable phenomenon. Kang et al. [9] and Park and Shin [10] pointed out that large GS is beneficial for the enhancement of formability through the increase in the work hardening capacity. This finding was mainly due to the activation of {1012} tensile twins in large grains during the Erichsen cupping test. However, Wei et al. [11] argued that grain refinement can activate more nonsubstrate slip systems, which improves formability. Machine learning techniques offer a powerful means of data analysis and enable the identification of potential influencing factors and patterns through the mining of large volumes of experimental data. Nevertheless, thus far, reports on the accurate prediction of stretch formability of Mg alloys are limited, and quantitative analysis of the factors affecting them remains lacking.
Machine learning algorithms, e.g., extreme gradient boosting (XGBoost), artificial neural network (ANN), long short-term memory (LSTM), support vector machine (SVM), random forest (RF), and regression tree (RT), have been used in the accurate prediction of the mechanical and corrosion properties of Mg alloys and establishment of the correlations between them and microstructures [12–18]. Zhang et al. [15] investigated the relationship between the texture and tensile properties of AZ31 Mg alloys using the ANN model and observed that with the increase in maximum pole intensity (Imax) and decrease in texture dispersion (μ), the strength was tremendously enhanced, but the ductility was gradually reduced for AZ31 Mg alloys. Xu et al. [14] built high-accuracy SVM and ANN models to predict the yield strength and elongation of AZ31 Mg alloys and optimized the alloying process through the adjustment of the solid-solution parameters and extrusion parameters. The RF algorithm was used in the work of Lu et al. [18] to model the calculation of corrosion potentials and currents in Mg alloys, and the results uncovered the mechanism underlying the influence of chemical composition and environmental variables on the corrosion potential and corrosion current of the samples. Therefore, in this work, machine learning was expected to be an useful method for the prediction of the stretch formability of Mg alloys and the quantitative description of the relationship between some factors and the IE value.
This study mainly aimed to accurately forecast the stretch formability of AZ31 Mg alloys via a suitable machine learning model. Through a comparison with the traditional algorithms mentioned above, a reliable XGBoost algorithm was developed by combining it with the sparrow search algorithm (SSA). Various performance metrics, including mean absolute error (MAE), root mean squared error (RMSE), and goodness of fit (R2), were used to evaluate the prediction performance of the newly developed SSA-XGBoost model. The quantitative relationship among microstructures, mechanical properties, testing conditions, and stretch formability of AZ31 Mg alloys was established and revealed via the Shapley additive explanation (SHAP) method and XGBoost feature importance analysis.

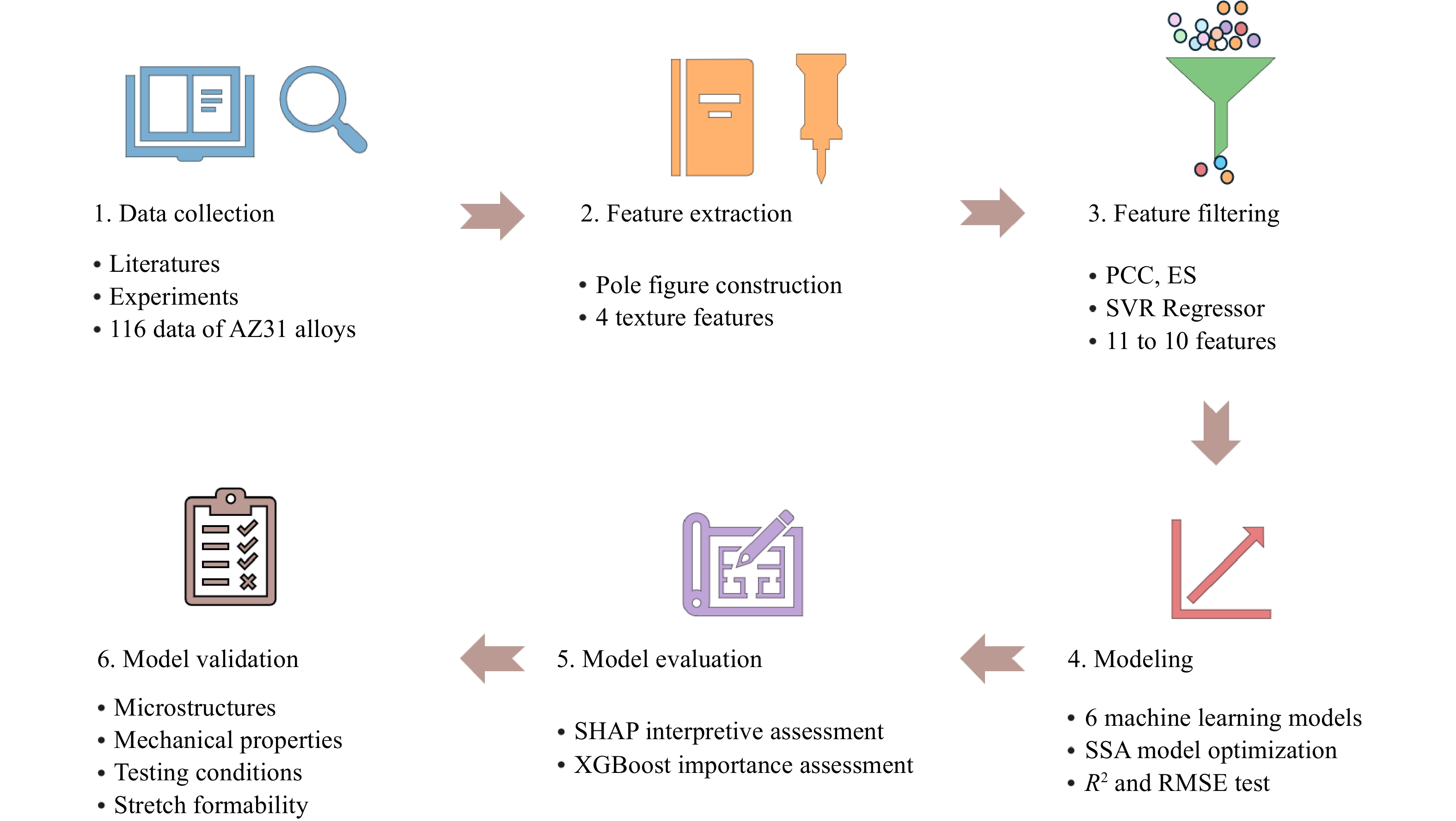

The workflow of this work (Fig. 1) comprised data collection, feature extraction, feature filtering, modeling, model evaluation, and model validation, with the six different parts covered in Sections 2.1 to 2.6.

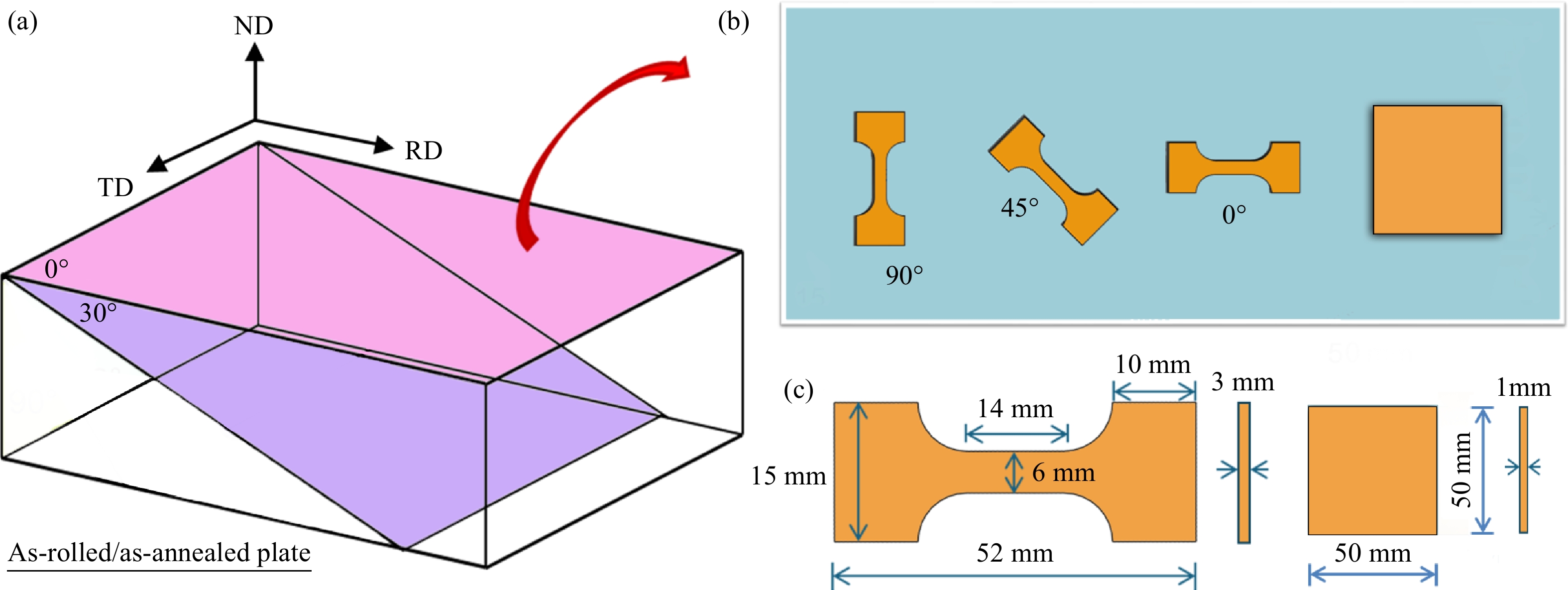

To control the variables and avoid the influence of alloying elements and secondary phase particles on the stretch formability of Mg alloys, we collected 116 data on AZ31 alloy sheets from published literature and experiments.

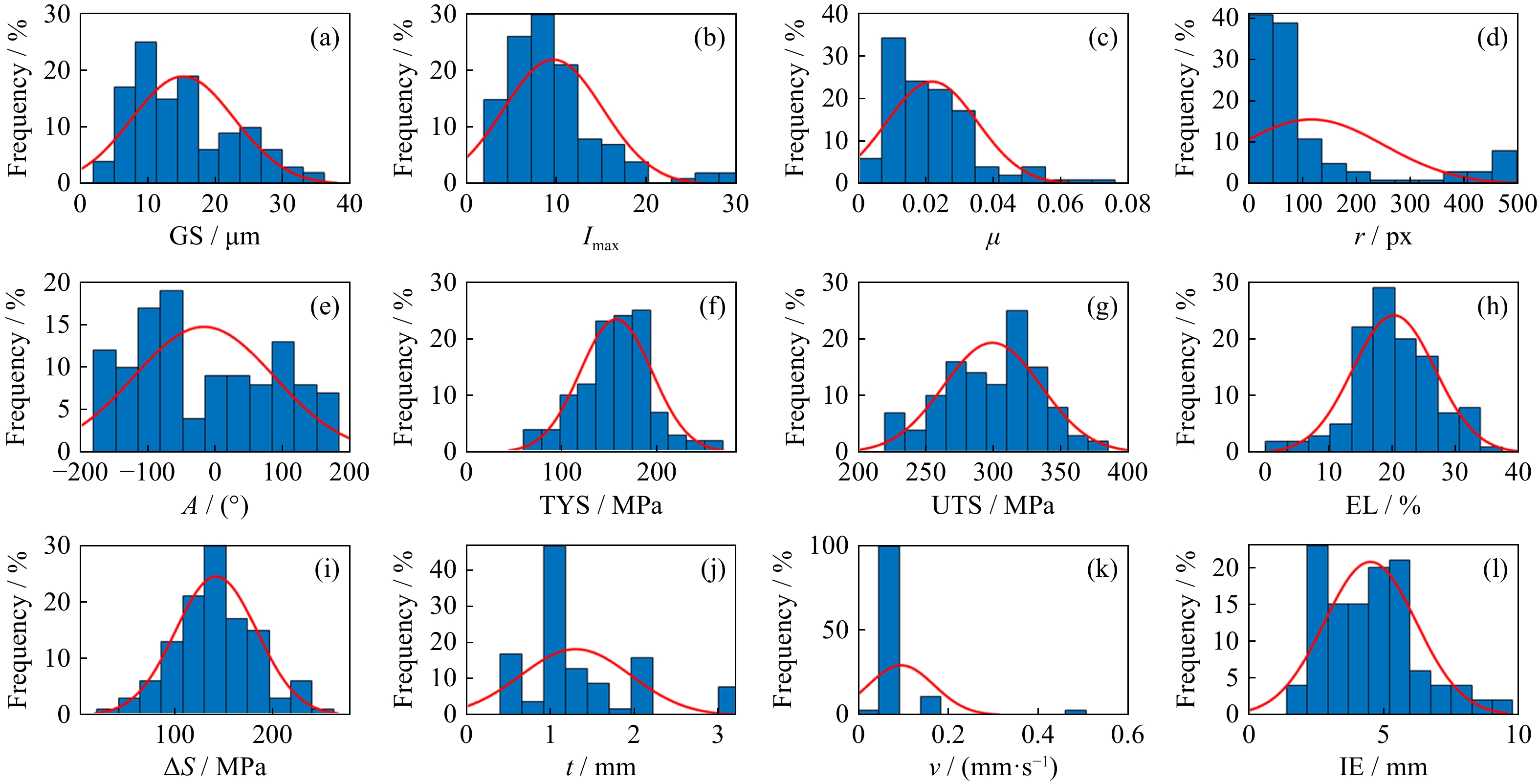

The inputs for the model included 11 parameters, which were divided into three categories:
(1) Microstructures: GS, Imax, μ, radius of maximum pole position (r), and angle of maximum pole position (A) [19].
(2) Mechanical properties: average tensile yield strength (TYS), average ultimate tensile strength (UTS), average elongation-to-failure (EL), and the strength difference ∆S (∆S = UTS–TYS) between average UTS and TYS. The ∆S indicates the work hardening capability of materials. The uniform formula of average TYS, UTS, and EL is expressed as follows [8]:
¯x=x0∘+2x45∘+x90∘4 | (1) |
where ¯x represents the average TYS, UTS, or EL; x0∘, x45∘, and x90∘ are the corresponding data on alloy sheets tensioned along the 0°, 45°, and 90° inclination toward the extrusion direction (ED) or rolling direction (RD), respectively.
(3) Test conditions: sheet thickness (t) and punch speed (v). Other test conditions, e.g., cup punch diameter, load, and deformation temperature, were constant in the collected literature. Thus, these factors were not considered as variables.
The model output is stretch formability, which is represented by the IE. The values of all the parameters roughly followed a Gaussian distribution (Fig. 2).

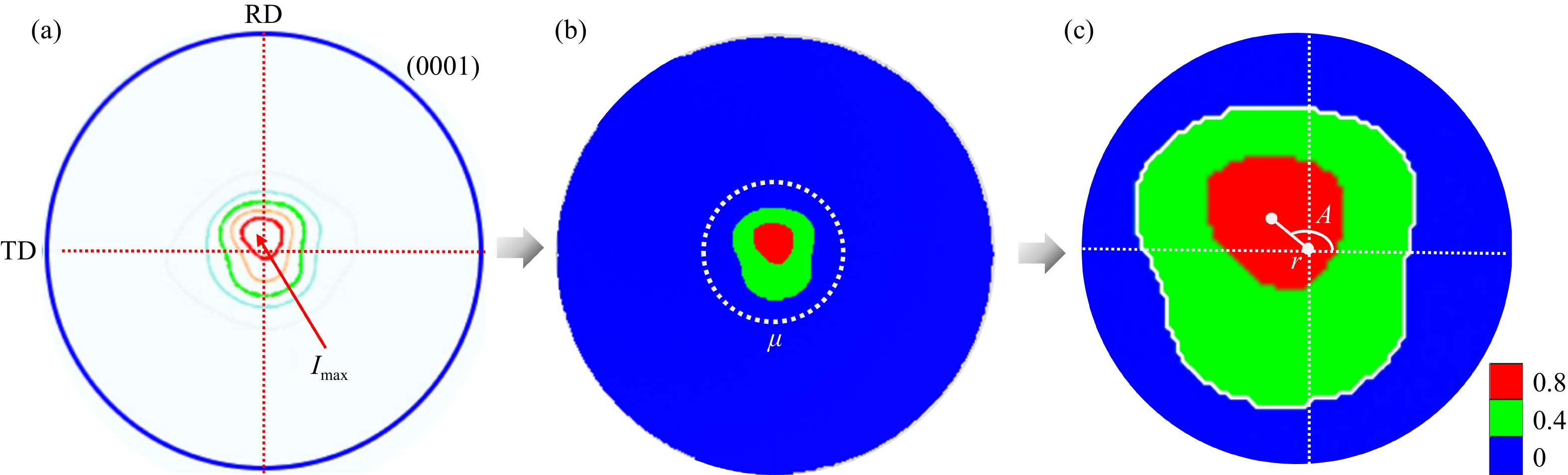

The four texture features were obtained from the (0001) pole figure of each AZ31 alloy sheet, and the detailed feature-extraction process, with the work of Suh et al. [20] as an example, is shown in Fig. 3. The extraction method is as follows:
(1) Image dimensions were uniformly set to 1000×1000 pixels (px). With the use of legends, the original pole intensityI0(x,y) was determined for each pixel point. Subsequently, the (0001) pole figure was normalized to eliminate dimensional differences between data (Fig. 3(a) and (b)) through Eq. (2):
I1=I0−IminImax−Imin | (2) |
where I1 and Imin represent the normalized and minimum pole intensities, respectively.
(2) The normalized pole figure was reconstructed based on various color thresholds, which were defined as high- (I2=0.8), medium- (I2=0.4), and low-density (I2=0) regions (Eq. (3)):
I2={0.8,ifI1≥0.8(highdensity)0.4,if0.4<I1<0.8(middledensity)0,ifI1≤0.2(lowdensity) | (3) |
(3) The texture-related parameters displayed in Fig. 3(c) were calculated to describe the texture characteristics using Eqs. (4)–(7):
Imax=max(I0(x,y)) | (4) |
μ=√∑ni=1(I2−¯I2)2n−1 | (5) |
r=√x2max+y2max | (6) |
A=atan2(ymax,xmax) | (7) |
where n refers to the total number of pixels (1000000), xmax and ymax indicate the positions of the pixel with maximum texture intensity, and ¯I2 represents the average I2 of all pixels.
Feature filtering was conducted to remove noisy and redundant irrelevant candidate features from the feature space while maintaining important information about the model, which reduced the dimensionality of inputs without losing crucial information for model construction [21]. Given the small initial variable dimensions, a two-step feature filtering process was performed on the candidate features. The Pearson correlation coefficient (PCC) method, which is an indicator of the linear correlation between two features, was initially performed to eliminate redundant features based on Eq. (8) [22]:
rab=(c∑(aibi)−∑ai∑bi)√[c∑ai2−(∑ai)2][c∑bi2−(∑bi)2] | (8) |
where c represents the sample size; ai and bi represent the ith observed values of two variables, respectively; rab denotes the value of the two fixed-distance variables. The rab value was between (–1, 1). The feature filtering threshold was set at 0.95 [22]. When rab > 0.95, the highly correlated features were separately removed from the feature space, and the remaining ones were used as inputs for further screening.
Subsequently, exhaustive screening (ES) was implemented for the systematic evaluation and selection of various possible combinations of features as inputs via a support vector regression (SVR) model for a given modeling task. The combinations of key features with the greatest effect on the stretch formability of alloy sheets were further used in this work.
The inputs comprised the key features obtained through the aforementioned screening process, and the IE served as the output. The regression prediction models were trained using six conventional machine learning algorithms, including XGBoost, ANN, LSTM, SVM, RF, and RT. The model accuracy was evaluated using Eqs. (9)–(11) [23]:
MAE=1m∑mi=1|yi−ˆyi| | (9) |
RMSE=√1m∑mi=1(yi−ˆyi)2 | (10) |
R2=1−∑mi=1(yi−ˆyi)2∑mi=1(yi−¯yi)2 | (11) |
where yi represents the true values; ˆyi denotes the model’s predicted values; ¯yiindicates the mean of all true values, and m is the number of samples. The best algorithm was selected after model evaluation. The SSA was introduced to further optimize the prediction model accuracy. The SSA exhibits a strong optimization capability and fast convergence speed, and it has been widely applied in fields such as power system optimization, medical image processing, and mechanical design optimization [24].
To further explain the mechanism underlying the influence of key features on stretch formability, we used the SHAP method to analyze the contribution of each feature to the prediction value, which was characterized by the SHAP value. The formula for the SHAP value ϕi(x) of the i-th key feature on the stretch formability is as follows [25]:
ϕi(x)=∑S⊆F∖{i}|S|!(|F|−|S|−1)!|F|![gS∪{i}(x)−gS(x)] | (12) |
where F indicates the set containing all key features, |F| refers to the total number of key features; S⊆F∖{i} represents a subset of all nonzero subsets excluding the i-th key feature; |S| denotes the number of key features in that subset; gS(x) is the prediction value of the performance model built on the S subset; gS∪{i}(x) corresponds to the prediction value of the performance model built on the S subset plus the i-th key feature; [gS∪{i}(x)−gS(x)] stands for the contribution of the i-th key feature to the performance prediction; |S|!(|F|−|S|−1)!/|F|! means the weight coefficient related to the number of key features. A positive or negative ϕi(x) value indicates the upward or downward effect of the feature value on the model’s prediction value, respectively.
In addition, feature importance analysis of the optimal XGBoost model was described; this model can automatically evaluate the importance of each feature to the model’s prediction result [26]. The frequency of use of each feature in the model was determined, and the higher the frequency of use, the greater the importance of the corresponding feature.
To verify the reliability and generalization performance of the model, we prepared tensile samples and Erichsen cupping samples from a new dataset prepared from commercial AZ31 as-rolled/as-annealed alloy sheets (Fig. 4). Initially, 3 mm thin pieces were cut at the angles of 0° and 30° away from the normal direction (ND) to the RD of the as-rolled and as-annealed (530°C@3 h) plates (Fig. 4(a)) and labeled as R0, R30, RA0, and RA30. Subsequently, the dog bone-shaped tensile samples were machined at angles of 0°, 45°, and 90° from these thin sheets (Fig. 4(b)). Fig. 4(c) shows the size of each tensile sample with a gauge length of 14 mm and a width of 6 mm. In addition, the square samples with dimensions of 50 mm × 50 mm × 1 mm were fabricated for the Erichsen cupping tests involving the R0, R30, RA0, and RA30 samples (Fig. 4(b) and (c)). Tensile tests were conducted on a CMT6305-300 KN universal testing machine with a strain rate of 10−3 s−1 at room temperature. Erichsen cupping tests were performed to ascertain the stretch formability of the samples on a GBW-60Z automatic cupping testing machine with a hemispherical punch of a diameter of 20 mm at a speed of 0.05 mm/s and at room temperature. Each test condition necessitated the use of three tensile samples and Erichsen cupping samples to guarantee the reproducibility of experiments.

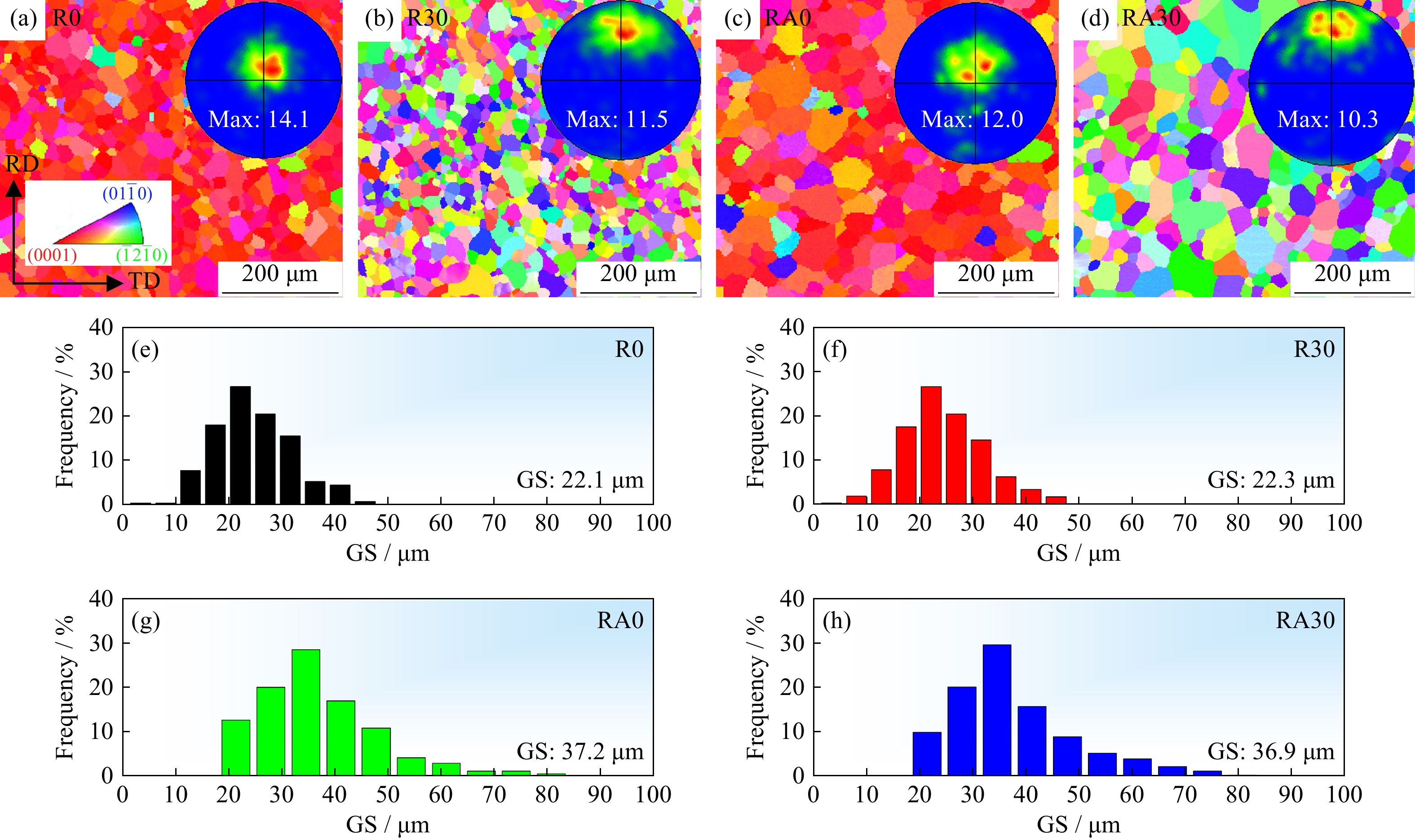

Electron backscatter diffraction technique (EBSD, JEOL JSM-7800F) was performed to observe the microstructures of all samples in this new dataset. The preparation of EBSD samples comprised grinding, washing, blow-drying, and electropolishing at a voltage of 20 V and an electric current of 0.03 A for 90 s at a temperature of −25°C using a specialized electrolyte called AC2. The step sizes for EBSD scanning were set at 0.5 μm. All EBSD data were subsequently analyzed using Channel 5 software.

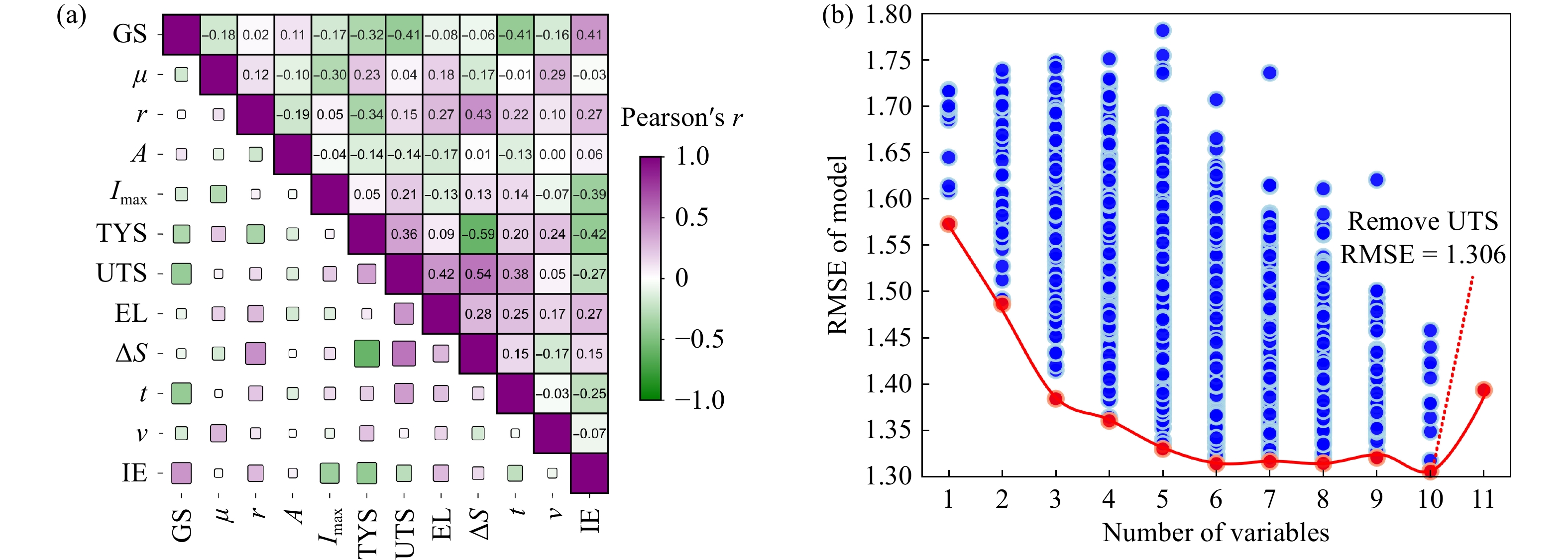

Fig. 5(a) displays the results of correlation analysis of individual features via the PCC method. For individual features, PCC was used to demonstrate the correlation screening process among 12 features. The findings indicate a strong positive correlation between ΔS, UTS, and TYS, given that ΔS directly reflects the relationship between UTS and TYS. However, no features had a PCC value beyond 0.95, which implies the presence of strong multicollinearity; thus, the removal of any variable at this stage is unnecessary [27].
Fig. 5(b) illustrates the outcome of the ES process. With the increase in the number of feature variables, the RMSE of the model displayed a downward trend and then an upward trend. When the number of input features exceeded 2, the optimal curve (marked by the red line) demonstrated a substantial reduction in the RMSE because additional features provided diverse and supplementary information about the dataset, which enhanced the model’s predictive capability and reduced the error. When the number of features increased to 11, the RMSE increased sharply due to the introduction of redundant features. When the number of features was 10, the corresponding model achieved the minimum RMSE of 1.306 through the removal of UTS. This result indicates that the ES method can effectively determine the key features and improve the screening efficiency.

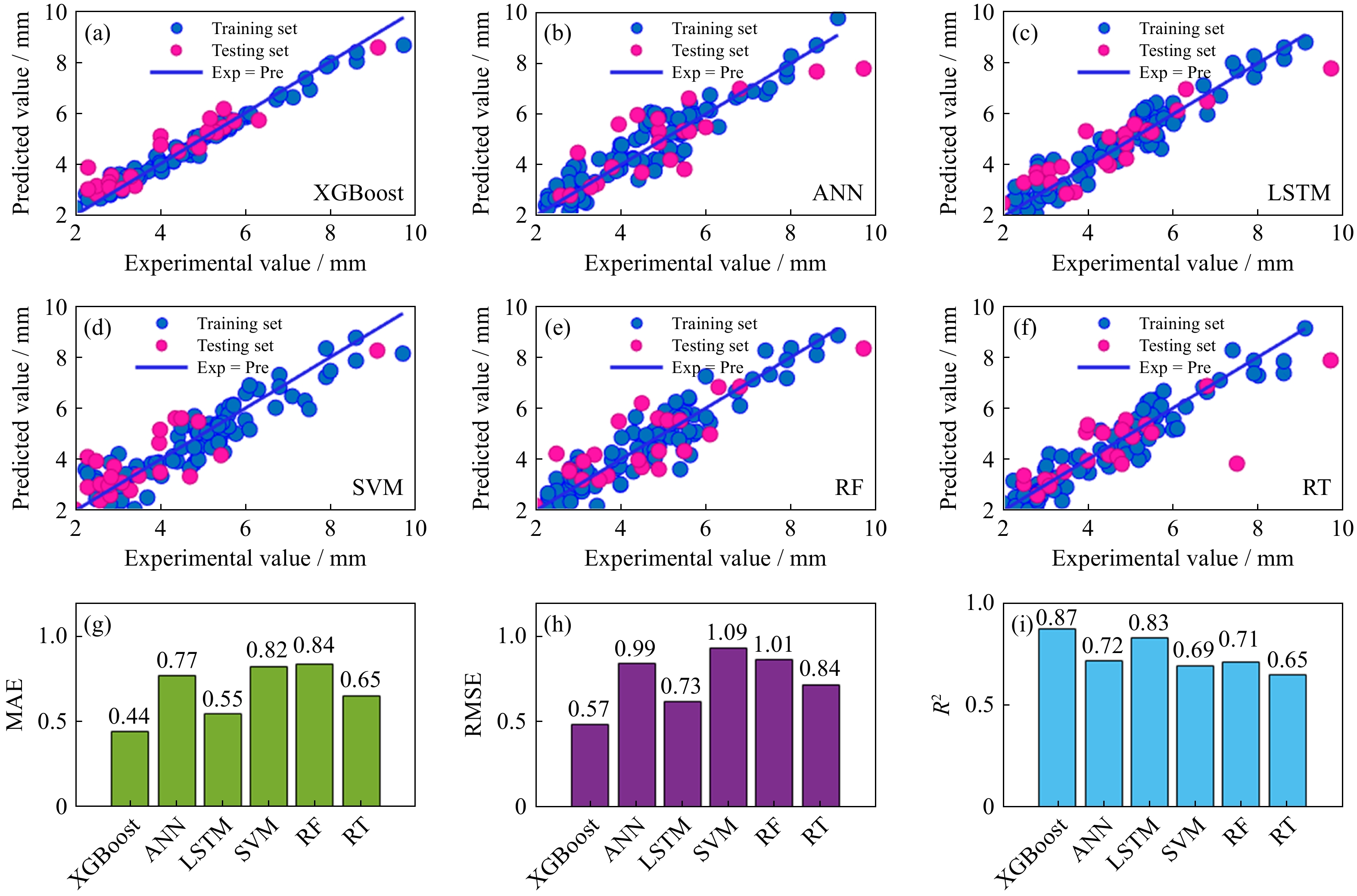

Fig. 6(a)–(f) shows the results obtained using the training and testing sets for six different algorithms, including XGBoost, ANN, LSTM, SVM, RF, and RT, and the corresponding MAE, RMSE, and R2 values of the testing set of the models are summarized in Fig. 6(g)–(i). Comparison of the XGBoost model with the other five machine learning models revealed that the XGBoost model had the highest performance prediction accuracy, with the MAE, RMSE, and R2 values of 0.44, 0.57, and 0.87, respectively. This finding was observed because the XGBoost model can handle high-dimensional feature spaces effectively by integrating multiple decision trees [28]; thus, it demonstrated superior performance in predicting the stretch formability of AZ31 Mg alloys. On the contrary, the other algorithms, such as SVM, RF, and RT, struggled to capture these interactions.
In the implementation of the XGBoost regression, the correct selection of parameters played a crucial role in ensuring the reliability of prediction results. In general, these parameters, including num_trees, max_depth, eta, and alpha, are manually adjusted during calculations to obtain high goodness-of-fit results. However, the subjective influence introduced by manual control is unavoidable and results in the entrapment of the model in a local optimum [29]. The SSA was introduced to the XGBoost model to address the subjective influence and local optimum problems caused by manual parameter adjustment. Table S1 (see the Supplementary Information) shows the hyperparameters optimized through SSA and their corresponding values. Fig. 7(a) shows the operation process of the SSA-XGBoost model, with the specific steps as follows:
(1) Random data split: the dataset was randomly divided into a training (80% of the data) and a test set (20% of the data).
(2) Fitness function construction: the fitness function used to optimize the XGBoost parameters was constructed based on the RMSE of the prediction model under various optimization iterations. The RMSE value was used as the fitness evaluation metric.

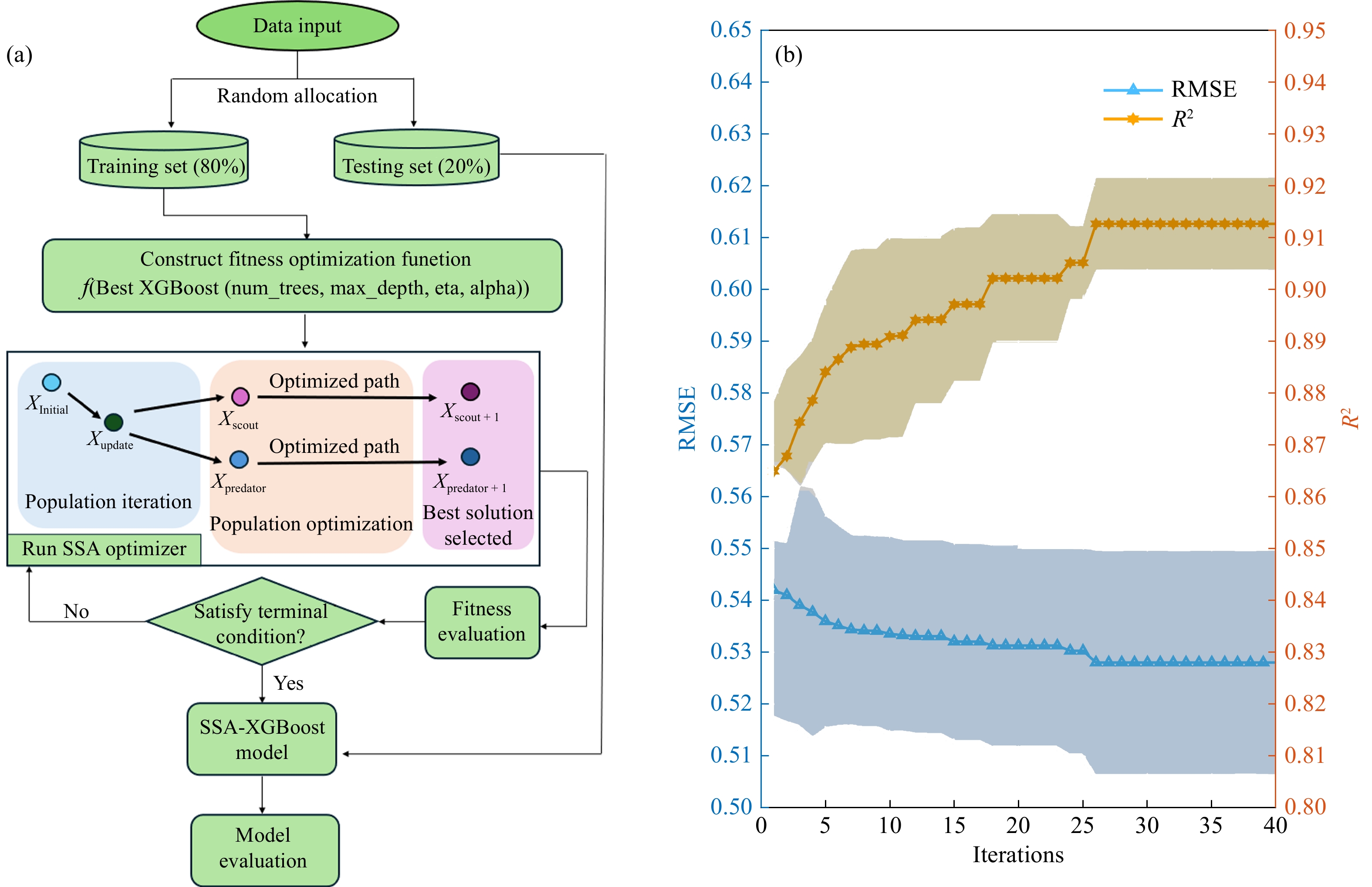

(3) SSA optimization of XGBoost parameters: the SSA was used for the iteratively optimized selection of optimal XGBoost hyperparameters. The fitness of parameter selection was evaluated, and optimization was continued until the iteration conditions were satisfied. The optimal hyperparameters were outputted.
(4) Establishment and evaluation of the SSA-XGBoost model: the SSA-XGBoost model was established using the optimized hyperparameters and evaluated.
The results of the model iteration are presented in Fig. 7(b). The model was run 10 times to prevent accidental errors and ensure the reliability of results. The shaded area represents the error range. Compared with the XGBoost model, the SSA-XGBoost model exhibited a higher R2 from 0.87 to 0.91, with a relative error of less than 2% across 10 runs. In addition, the RMSE decreased from 0.54 to 0.53, with a relative error of less than 3% across the 10 runs. This finding indicates that the SSA-XGBoost model possesses enhanced capabilities for fitting nonlinear relationships and controlling the dispersion of prediction results. Consequently, the integration of the SSA and XGBoost algorithms validly addressed the limitations of manual parameter adjustment and provided a reliable and efficient approach for the optimization of the XGBoost model parameters and improving the prediction model accuracy.

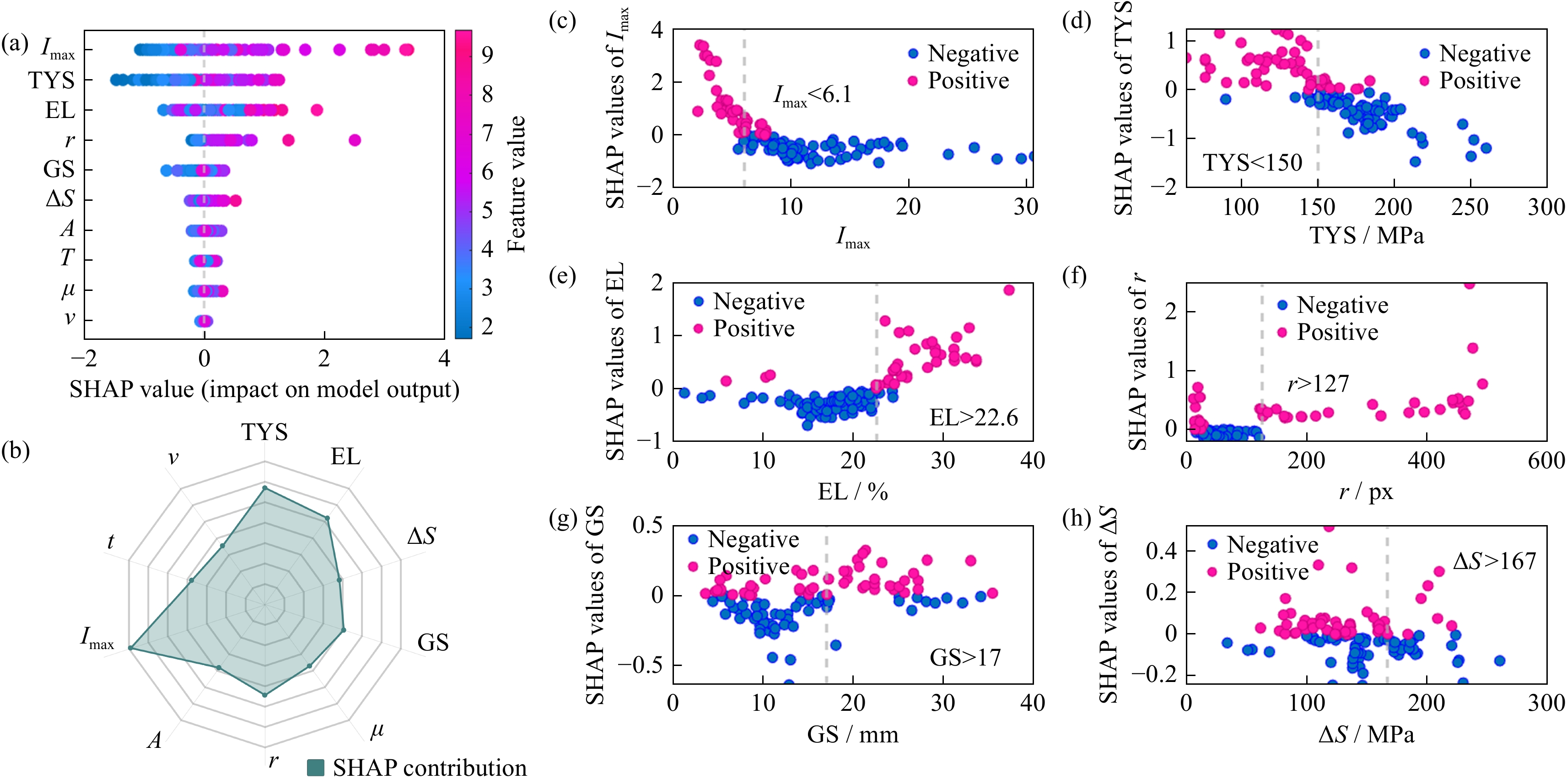

Fig. 8(a) and (b) illustrates the summary plot of SHAP values and the radar chart of feature contributions, respectively. The x-position of scatter points represents the influence of feature values on the model’s prediction, and the color of scatter points indicates the magnitude of feature values.
The most significant features that influence the IE regression prediction model include Imax, TYS, EL, r, GS, and ΔS. The effects of t, μ, A, and v were relatively smaller. Among these microstructural features, Imax, r, and GS exhibited the most significant effect on material anisotropy and strain localization, which led to a more pronounced effect on stretch formability. TYS, EL, and ΔS directly depend on Imax, r, and GS in Mg alloys [6–10], which make them the main influencing factors. By contrast, the effect of test conditions (t and v) on stretch formability was relatively less significant, and this finding may be attributed to the minor variations in both factors within the scope of testing, as documented in the collected literature.
Fig. 8(c)–(h) displays the SHAP values of the highest ranking features and their respective feature values. Certain critical values at which the SHAP values were predominantly positive (red points) or negative (blue points) on either side can be identified. When Imax < 6.1, the SHAP values were positive (Fig. 8(c)), and with the decrease in Imax, a high contribution to the enhancement of stretch formability was observed. This result is highly consistent with those of reported works indicating that the formation of weak texture is beneficial for reducing the plane anisotropy of Mg sheets during deformation through the launch of more basal slip systems and extension twins to accommodate thickness-direction strains [6–8,30]. As TYS < 150 MPa and EL > 22.6%, the corresponding SHAP values were also positive (Fig. 8(d) and (e)). A low TYS and a high EL indicate a reduced low deformation resistance and a high work hardening capacity, which can delay the appearance of microcrack initiation during the Erichsen cupping tests [9,31]. Furthermore, at r > 127 px, with the increase in r, the SHAP value was in direct proportion to it (Fig. 8(f)). Thus, as r increased, the basal texture feature gradually changed to the off-basal texture feature, which greatly enhanced the basal slip activity and further improved the IE during the Erichsen cupping test [32–33]. Compared with the abovementioned features, GS and ΔS exhibited minimal influence on the SHAP value, which implies that both parameters are not the primary determinants of the stretch formability of Mg alloys. As reported by Nakata and Kamado [34], although the difference in GS was depicted differently in various Mg series alloys, evident evidence of grain refinement effect was not observed on the enhanced stretch formability. Based on the above critical values, we can adjust the microstructural features to guide the design of high-formable Mg alloys.
Meanwhile, the XGBoost feature importance analysis was also performed. Fig. 9(a) shows the overall importance ranking characterized by a pie chart. The analysis results are consistent with those obtained via the SHAP method, with the top six screening factors (Imax, TYS, EL, r, ΔS, and GS). The next features were t, A, v, and μ. As a consequence of disparate measurement standards, the ranking of feature importance varied between the two analysis methods. The former is typically based on the evaluation of the overall model performance, and the latter relies on the evaluation of the local interpretability for each sample. Fig. 9(b)–(k) provides a detailed view of the relationships between individual features (Imax, TYS, EL, r, ΔS, GS, t, A, v, and μ) and IE, offering insights into the mechanism underlying the influence of each feature on the target variable. Evidently, with the gradual decrease in Imax and TYS and increase in EL, r, ΔS, and GS, the IE value showed an upward tendency. Compared with the top six screening factors, t, A, v, and μ showed a weak effect on the IE. Therefore, the integration of the SHAP method and XGBoost feature importance analysis confirmed the pivotal features and their quantitative influence on the stretch formability of AZ31 alloy sheets in this study.
To validate the reliability and generalization performance of the SSA-XGBoost model, we prepared a new dataset comprising four samples (labeled by R0, R30, RA0, and RA30), and their corresponding microstructural features are shown in Fig. 10. All samples exhibited a relatively uniform grain structure. The R0 sample was a typical basal-oriented feature with the c-axis of the majority of grains exhibiting a slight inclination of approximately 7° from the ND to the RD in the (0001) pole figure (Fig. 10(a)), and its mean GS was approximately 22.1 μm (Fig. 10(e)). For the R30 sample, the c-axis of most grains located at around the 37° position away from the ND toward the RD in the (0001) pole figure (Fig. 10(b)). The mean GS showed no change (about 22.3 μm, Fig. 10(f)) compared with the R0 sample. No difference was observed in the texture type between the samples before and after annealing. However, the Imax was weakened from 14.1 (R0) and 11.5 (R30) to 12.0 (RA0) and 10.3 (RA30), as shown in Fig. 10(a)–(d). Meanwhile, the mean GS increased to 37.2 and 36.9 μm for the RA0 and RA30 samples displayed in Fig. 10(g) and (h), respectively. In addition to GS and Imax, other characteristics, e.g., μ, r, and A, for all samples are summarized in Table 1.
Sample | GS / μm | Imax | r / px |
μ | A / (°) |
TYS / MPa |
EL / % |
ΔS / MPa |
t / mm |
v / (mm·s–1) |
IE (Experimental) / mm |
IE (Prediction) / mm |
R0 | 22.1 | 14.1 | 85.60 | 0.008 | 52.60 | 117.77 | 14.29 | 116.47 | 1 | 0.05 | 2.81 | 3.06 |
R30 | 22.3 | 11.5 | 302.29 | 0.011 | 85.46 | 69.39 | 23.48 | 151.07 | 1 | 0.05 | 6.54 | 6.32 |
RA0 | 37.2 | 12.0 | 112.80 | 0.009 | 60.95 | 107.63 | 14.73 | 121.23 | 1 | 0.05 | 3.36 | 3.32 |
RA30 | 36.9 | 10.3 | 300.43 | 0.010 | 86.95 | 61.62 | 25.34 | 152.13 | 1 | 0.05 | 6.92 | 6.73 |

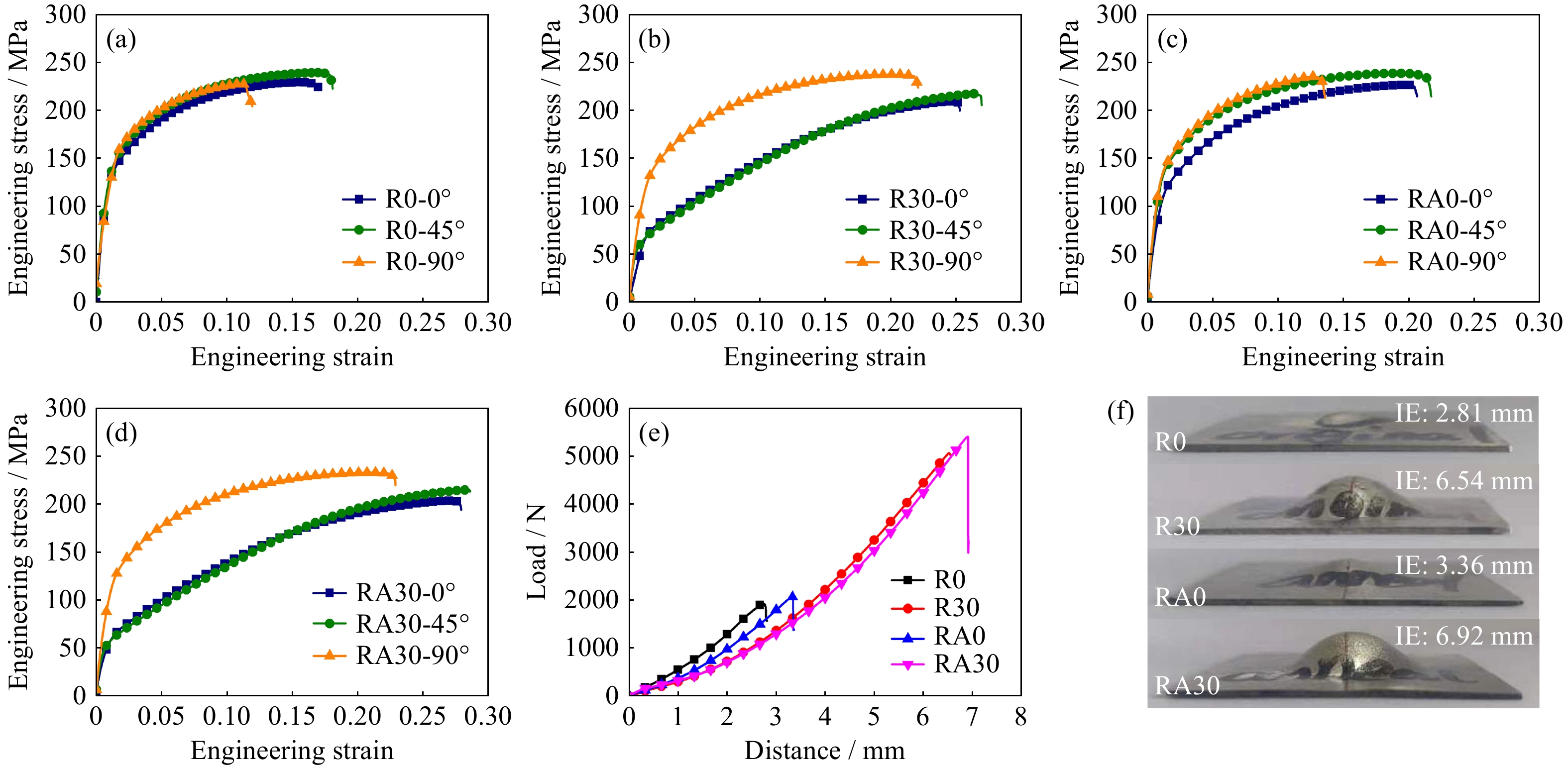

Fig. 11(a)–(d) shows the engineering tensile stress–strain curves of each sample measured at 0°, 45°, and 90° away from the ND to the RD. Table 1 provides the corresponding average tensile properties. A strong basal texture resulted in the high TYS and low EL of the R0 sample (Fig. 11(a)). However, given the tensile “soft” orientations (especially for those at 0° and 45°), which are conducive to the activation of the basal slip system, the R30 sample showed a low TYS and a high EL (Fig. 11(b)). After annealing, further weakening of the basal texture contributed to a lower TYS and a higher EL of the RA0 and RA30 samples (Figs. 11(c) and (d)) compared with the R0 and R30 samples, which abided by Schmid’s law very well [31,35–37]. In spite of the grain growth in the RA0 and RA30 samples, the positive effect of texture weakening on the enhanced EL value exceeded the negative influence of grain coarsening on them.
At given Erichsen cupping test conditions, e.g., t of 1 mm and v of 0.05 mm/s, the Erichsen results of the R0, R30, RA0, and RA30 samples were obtained (Fig. 11(e) and (f)). The corresponding IE acquired in the experiment and model prediction is labeled in Table 1. The RA30 sample exhibited the highest IE of 6.92 mm, followed by R30, RA0, and R0 samples, with values of 6.54, 3.36, and 2.81 mm, respectively. The discrepancy between the experimental and predicted IE was minimal, with a difference below 5%. This result indicates considerable potential for the quantitative prediction of the stretch formability of AZ31 alloy sheets via the newly developed SSA-XGBoost model. Combining the microstructural features and mechanical properties, we observed that with the decrease in Imax and average TYS, the IE showed a rising tendency, but it decreased with the decrease in the average EL. Thus, the Imax, TYS, and EL are the three key factors in this dataset that influenced the stretch formability of AZ31 alloy sheets, consistent with results of the SHAP method and XGBoost feature importance analysis (Figs. 8 and 9).
In addition, other features, such as r and GS, contributed to the overall effect. As the r increased, more {10–12} extension twins were activated, as revealed by the “S”-shaped stress–strain curves of the R30 and RA30 samples tensioned along the angles of 0° and 45° (Fig. 11(b) and (d)), providing better coordination for the thickness-direction strains. However, given the formation of off-basal texture, an evident tensile planar anisotropy, which is harmful to the enhancement of IE, was observed [38]. If we consider the effect of individual GS on stretch formability, twins can be easily activated in large grains to compensate for extra strains and increase the IE [9–10], which is also confirmed in the R0 and RA0 samples (Fig. 11(a) and (c)). Once other factors, except for GS, appear, such a proportional relationship may be invalid [39–41]. As shown in Fig. 10(a) and (b), despite a comparable average GS between the R0 and R30 samples, a notable discrepancy in the IE value was evident due to variation in the r value.
The developed SSA-XGBoost algorithm exhibited considerable potential in forecasting the stretch formability of AZ31 alloy sheets and quantitatively analyzing the key features of the IE value. This work offers insights into the development of high-formable Mg alloys.
This work involved the development of an interpretable prediction framework that comprehensively considers microstructures, mechanical properties, and testing conditions for the accurate prediction of the stretch formability of AZ31 Mg alloys. In addition, the relationship between some key variables and the IE was quantitatively analyzed. The findings are expected to provide guidance on the design of Mg alloys with high formability via this model. The main conclusions are as follows:
(1) The inputs for the model included 11 features, which were divided into three categories: (a) microstructures, e.g., GS, Imax, μ, r, and A; (b) mechanical properties, e.g., TYS, UTS, EL, and ∆S; (c) test conditions, e.g., t and v. Through the PCC and ES methods, ten key features (excluding UTS), as the final inputs, were determined to improve the prediction accuracy of the model.
(2) Compared with the conventional XGBoost, ANN, LSTM, SVM, RF, and RT algorithms, the newly developed SSA-XGBoost model exhibited a higher prediction accuracy with an R2 value of 0.91 while ensuring the model robustness.
(3) As revealed by the SHAP method and XGBoost feature importance analysis, the Imax, TYS, EL, r, GS, and ΔS significantly influenced the stretch formability of input features. When Imax < 6.1, TYS < 150 MPa, EL > 22.6%, and r > 127 px, the IE displayed an upward tendency. Compared with Imax, TYS, EL, and r, GS and ΔS exhibited a relatively weak effect on the IE.
(4) The SSA-XGBoost model was further validated under actual experimental conditions, with the error of IE value remaining within 5%. The predicted results demonstrated good agreement with the experimental data, which confirms the effectiveness and potential application of the SSA-XGBoost model in the prediction of the stretch formability of AZ31 Mg alloys.
