Search
Fig.
1.

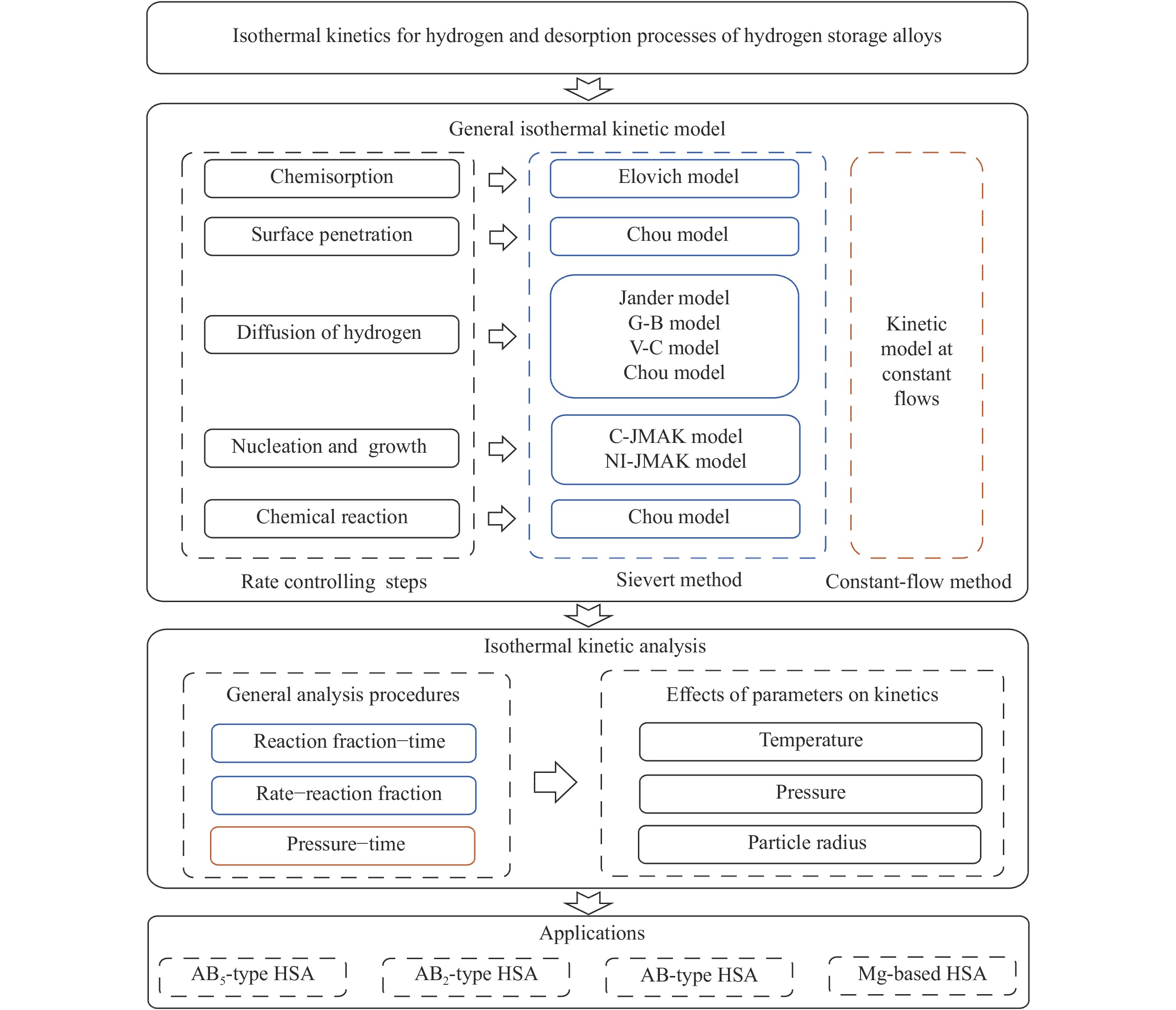

Framework diagram of this review.
| Cite this article as: |
Qian Li, Xi Lin, Qun Luo, Yuʼan Chen, Jingfeng Wang, Bin Jiang, and Fusheng Pan, Kinetics of the hydrogen absorption and desorption processes of hydrogen storage alloys: A review, Int. J. Miner. Metall. Mater., 29(2022), No. 1, pp.32-48. https://dx.doi.org/10.1007/s12613-021-2337-8
|
High hydrogen absorption and desorption rates are two significant index parameters for the applications of hydrogen storage tanks. The analysis of the hydrogen absorption and desorption behavior using the isothermal kinetic models is an efficient way to investigate the kinetic mechanism. Multitudinous kinetic models have been developed to describe the kinetic process. However, these kinetic models were deduced based on some assumptions and only appropriate for specific kinetic measurement methods and rate-controlling steps (RCSs), which sometimes lead to confusion during application. The kinetic analysis procedures using these kinetic models, as well as the key kinetic parameters, are unclear for many researchers who are unfamiliar with this field. These problems will prevent the kinetic models and their analysis methods from revealing the kinetic mechanism of hydrogen storage alloys. Thus, this review mainly focuses on the summarization of kinetic models based on different kinetic measurement methods and RCSs for the chemisorption, surface penetration, diffusion of hydrogen, nucleation and growth, and chemical reaction processes. The analysis procedures of kinetic experimental data are expounded, as well as the effects of temperature, hydrogen pressure, and particle radius. The applications of the kinetic models for different hydrogen storage alloys are also introduced.
Hydrogen storage is one of the key technologies to realize the applications of hydrogen energy, which can reduce environmental pollution and contribute to carbon neutrality. Hydrogen storage alloys (HSAs), such as LaNi5, TiFe, TiMn2, and Mg2Ni, are a type of potential hydrogen storage material because of their high volumetric hydrogen density, high safety, and applicable working temperature and pressure [1−3]. HSA is usually employed as a material for hydrogen storage tanks (HSTs) used in specific applications, such as thermoelectric cogeneration systems [4] and fuel cell forklifts [5]. However, the low hydrogen charging and discharging rates of HST, which are caused by the heat of the hydriding/dehydriding reactions, are the main bottleneck for their applications [6−7]. The enhanced kinetics of the hydrogen absorption and desorption reactions of HSA and the appropriate design of HST are two ways to improve the rate of HST. To enhance the kinetics of the hydrogen absorption and desorption reactions of HSA, it needs to be modified based on an in-depth understanding of its kinetic mechanism. The HST can be designed effectively using numerical simulation. In the mathematical model, the kinetic equation is a key governing equation and determines the accuracy of the simulation [6]. Thus, how to analyze the kinetic mechanism of the hydrogen absorption and desorption processes of HSA is a core topic for the applications of hydrogen energy.
Generally, the reactions can be mainly classified into the solid–solid, gas–solid, and liquid–solid reactions [8−12]. The hydriding/dehydriding reactions are typical gas–solid reactions. The kinetic mechanism of the hydriding/dehydriding reactions can be determined through the analysis of the hydrogen absorption and desorption behavior using the isothermal kinetic models. Both external factors (temperature and pressure) and internal factors (elementary composition, particle radius, particle surface states, and hydrogen diffusion coefficient) can influence the kinetic process of hydrogenation/dehydrogenation [13]. Numerous isothermal kinetic models, such as the Jander [14−19], Chou [20−26], and Johnson–Mehl–Avrami–Kolmogorov (JMAK) [27−32] models, have been proposed and extensively applied in the investigation of hydrogenation/dehydrogenation. The effects of the external factors are expressed in the kinetic models as the activation energy and pressure terms. By contrast, the effects of the internal factors, except for the particle radius, are difficult to express in the kinetic models explicitly. Thus, the rate constant is always used to represent the effects of the internal factors on hydrogenation and dehydrogenation in many kinetic models. Moreover, the volume expansion and contraction of particles during the hydrogen absorption and desorption processes could influence the prediction accuracy of the kinetic models for metal hydrides (MH) with large volume changes. However, some models rarely consider this factor. Thus, the appropriate kinetic model is indispensable to the analysis of the hydrogen absorption and desorption behavior.
Many processes exist objectively in the hydrogen absorption and desorption reactions of HSA. The hydrogen absorption and desorption processes can be generally divided into [12,33−35] (1) chemisorption, (2) surface penetration, (3) diffusion of hydrogen, (4) nucleation and growth, and (5) chemical reaction. However, the aforementioned isothermal kinetic models were deduced based on some assumptions and only appropriate for specific rate-controlling steps (RCS) and kinetic measurement methods. Thus, researchers without an in-depth understanding of kinetic models need the appropriate model to analyze experimental data. Many published reviews focused on the introduction of HSA [36−37] or its kinetic models [35,38] rather than the scope of application and kinetic analysis method according to the RCSs and kinetic measurement methods. Thus, we summarize the kinetic models according to different RCSs and kinetic measurement methods, as well as the progress of the development of new kinetic models.
This review mainly focuses on the isothermal kinetic models, kinetic parameters, and general analysis procedures of hydrogenation and dehydrogenation reactions. The framework of this review is shown in Fig. 1, as follows: (1) introducing the general isothermal kinetic model, including the model assumptions at different kinetic measurement methods and RCSs (Section 2); (2) summarizing the different analysis procedures of kinetic models, and the effects of temperature, pressure, and particle radius on the kinetics (Section 3); (3) illustrating the applications of the kinetic models for different types of HSA (Section 4).

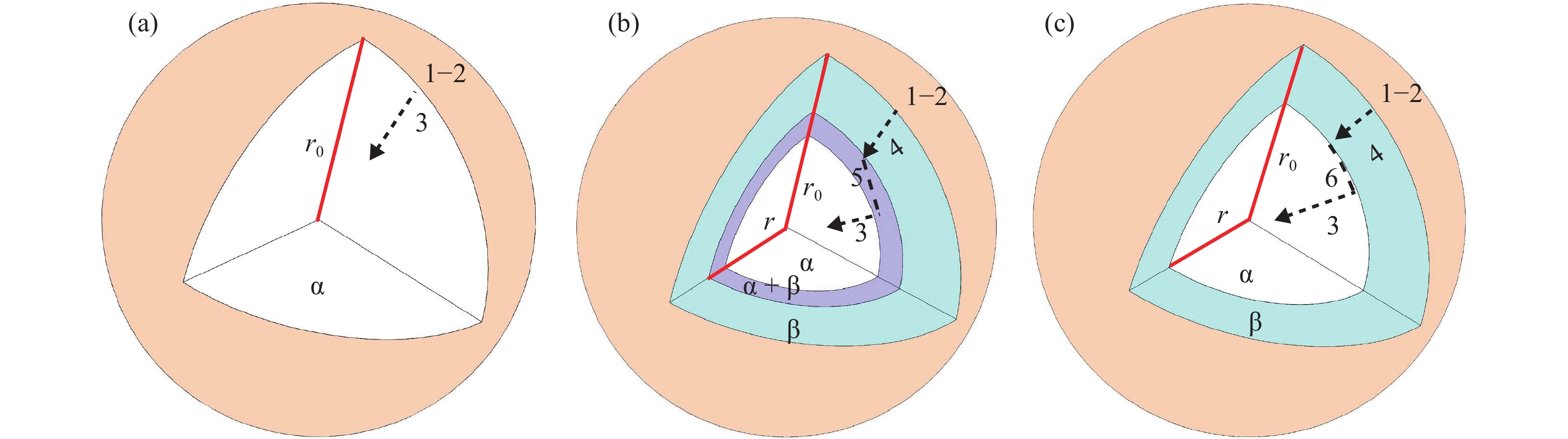

The general hydrogen absorption processes of metals or intermetallics are shown in Fig. 2. The hydrogen desorption of MH is the reverse process of hydrogen absorption. The hydrogen absorption processes can be described as follows: (a) The hydrogen molecules are physisorbed on the surface of the particle at a certain pressure. (b) The hydrogen molecules are dissociated to hydrogen atoms and chemisorbed on the surface of the metal (i.e., chemisorption). (c) The chemisorbed hydrogen atoms diffuse from the surface into the particle (i.e., surface penetration). (d) The MH nucleates and grows when the hydrogen concentration exceeds the solid solubility limit. Moreover, a chemical reaction occurs on the surface of MH in some HSAs with relatively low hydrogen solid solubility.
α represents the solid solution of hydrogen in alloys, which is formed first, as shown in Fig. 2(a). r0 and r are the radius of particle and unreacted core, respectively. When the diffusion rates of hydrogen atoms in the α phase are larger than the rates of chemisorption and surface penetration, the diffusion of hydrogen atoms in the α phase and physisorption are not regarded as the RCS. When the pressure of H2 is higher than the MH equilibrium pressure, the phase transition of α → β can occur. First, the β layer will be generated on the surface of the particle. Then, the β layer will grow along the radial direction of the particle. Thus, hydrogen must diffuse through the β layer to the front of the phase transition of α → β (i.e., diffusion of hydrogen atoms in the β phase). If the nucleation and growth rates of β are slow, then there will be an α + β two-phase region between α and β (as shown in Fig. 2(b)). If the nucleation and growth rates of β are fast, then the α + β two-phase region will decrease until it can hardly be observed. Thereby, the phase transition of α → β can be simplified by a chemical reaction (as shown in Fig. 2(c)). The interface between α and β can be simplified as a continuously moving interface, which has been used as the assumption in many kinetic models, such as the Jander and Chou models.

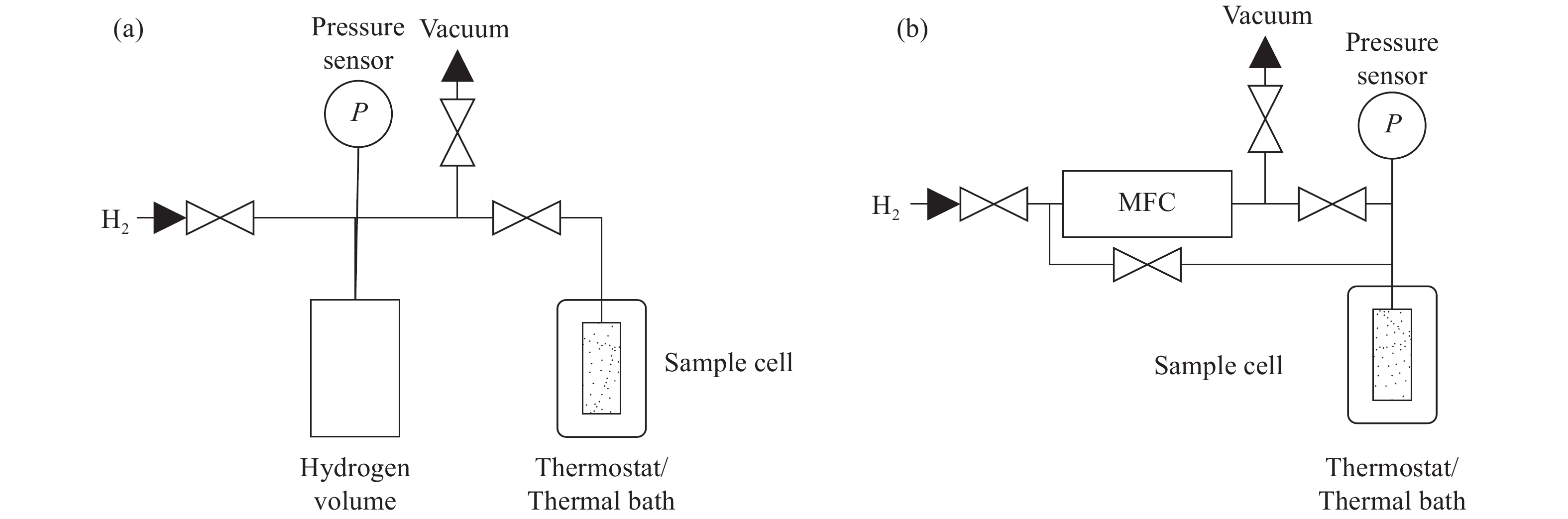

The main hydrogen absorption and desorption measurement methods are the Sievert and flowing volumetric methods [39], as shown in Fig. 3. The Sievert method is the most common measurement technique [39], which can be easily implemented using the system of known volume when the temperature and pressure are measured accurately. The hydrogen absorption or desorption capacity can be calculated by the modified state equation of ideal gas using pressure change. In most cases, the initial pressure of the hydrogen volume is higher than the platform pressure of the α–β equilibrium. The β layer will be generated rapidly, and the state of the particle shown in Fig. 2(a) can be ignored. Thus, kinetic models, such as the Jander, JMAK, and Chou models [14], can be applied in most cases.
In the flowing volumetric method, the change of hydrogen amount in the sample cell is controlled by the mass flow controller (MFC), shown in Fig. 3(b) [39]. When the pressure and void volume of the sample cell are known, the hydrogen absorption or desorption capacity of HSA can be easily calculated. If the volume of the sample cell is small, then the capacity of HSA has an approximately linear relationship with time. When the pressure is less than the MH equilibrium pressure, the phase transition of α → β cannot occur. In this situation, the hydrogen absorption process may be controlled by two RCSs at different pressure ranges [6]. Because of the continuous pressure change, the experiment using the flowing volumetric method is regarded as a suitable way to reveal the kinetic mechanism of hydrogenation or dehydrogenation at different pressure ranges. However, only a few studies using the flowing volumetric method and the corresponding kinetic model have been published.
The kinetic models applied to the hydrogen absorption and desorption processes using the Sievert method, which include chemisorption, surface penetration, diffusion of hydrogen, nucleation and growth, and chemical reaction, are given in this review.
The process of chemisorption can be expressed as follows:
| H2+2(ch)↔2H(ch) | (1) |
where (ch) is the empty site of chemisorption on the surface of the particle and H(ch) is the absorbed hydrogen. Generally, the process of chemisorption needs the activation energy E. With the increase of the percentage of the absorbed hydrogen on the particle surface (θch), the activation energy will increase, and the rate of chemisorption will decrease. The rate of chemisorption vch can be calculated by the Elovich equation [40], as follows:

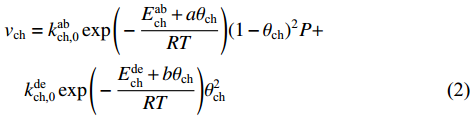

| vch=kabch,0exp(−Eabch+aθchRT)(1−θch)2P+kdech,0exp(−Edech+bθchRT)θ2ch | (2) |
where
| vch=kabch,0exp(−Eabch+aθchRT)P | (3) |
When θch has a medium value, Eq. (2) can be simplified as follows:
| vch=kabch,0exp(−Eabch+aθchRT)P+kdech,0exp(−Edech+bθchRT) | (4) |
Aside from the Elovich equation, the chemisorption rate can be expressed as follows [12]:
| vch=kchr0(P−Peq) | (5) |
where r0 is the initial particle radius, Peq is the MH equilibrium pressure, kch is the rate constant of chemisorption. In Eq. (5), the effects of particle radius and equilibrium pressure on the chemisorption rate are considered. Then, combined with the Arrhenius equation, Eq. (5) can be expressed as [12]
| ξ=kch,0r0exp(−ERT)(P−Peq)t | (6) |
where ξ is the reaction fraction and t is the time, kch,0 is the factor for the rate constant of chemisorption.
The process of surface penetration can be expressed as follows:
| H(ch)↔[H]+(ch) | (7) |
where [H] is hydrogen in the α or β phase. The rate of surface penetration vsp can be expressed as follows [12,33]:
| vsp=kabspθch−kdespCβ | (8) |
where
| vsp=kspr0(P1/2−P1/2eq) | (9) |
where ksp is the rate constants of surface penetration. Then, Eq. (9) can be changed to the form of reaction fraction with time, as follows:
| ξ=ksp,0r0exp(−ERT)(P1/2−P1/2eq)t | (10) |
where ksp,0 is the factor for the rate constant of surface penetration.
For the RCSs of chemisorption and surface penetration, the reaction fraction has a linear relationship with time. The main difference is the pressure term in the kinetic equations expressed in Eqs. (6) and (10). Thus, the effect of pressure on these two RCSs needs to be investigated.
Many kinetic models, such as the Jander [18], Ginstling–Brounshtein (G-B) [41], Valensi–Carter (V-C) [42], and Chou [33] models, have been used to describe the diffusion of hydrogen. These kinetic models are all derived based on the diffusion of hydrogen as RSC, with the temperature and pressure assumed to be constant during the hydrogen absorption and desorption processes.
(1) Jander model.
When the RCS is the diffusion of hydrogen, the reaction rate decreases proportionally with the thickness of the β layer. The Jander model assumes that the area of the α/β phase interface and the particle volume are constant [18,43]. Then, the moving rate of the α/β phase interface can be expressed based on Fick’s law, as follows:
| ρ∂r∂t=−DΔCr0−r | (11) |
where ρ is the density, D is the diffusion coefficient, ∆C is the hydrogen concentration difference between the surface and the α/β phase interface, and r is the radius of the α/β phase interface. The reaction fraction can be calculated by the following equation [44]:
| ξ=1−(rr0)d | (12) |
where d is the dimensionality. For spherical, cylindrical, and plate particles, d is equal to 3, 2, and 1, respectively. Combining Eqs. (11) and (12), the Jander model can be expressed as follows:
| [1−(1−ξ)1/d]2=2DΔCr20t=kdit | (13) |
where kdi is the rate constant of hydrogen diffusion. The form of the Jander model is concise. However, as the area of the α/β phase interface changes with the hydrogen absorption and desorption reactions, a deviation between the Jander model and the actual situation is observed. Thus, the Jander model is applied to the hydrogen absorption and desorption processes of small particles because of the slight change of the area of the α/β phase interface in small particles.
(2) G-B model.
The G-B model is developed based on the Jander model without the assumption that the area of the α/β phase interface is constant [41,45]. For the cylindrical particle, the moving rate of the α/β phase interface can be derived as follows:
| ρ∂r∂t=−DΔCrln(r0/r) | (14) |
For the spherical particle, the moving rate of the α/β phase interface can be derived as follows:
| ρ∂r∂t=−DΔCr0(r0−r)r | (15) |
Then, the G-B models for the cylindrical and spherical particles can be expressed as Eqs. (16) and (17), respectively:
| (1−ξ)ln(1−ξ)+ξ=4DΔCr20ρt=kdit | (16) |
| 1−23ξ−(1−ξ)2/3=2DΔCr20ρt=kdit | (17) |
The G-B model is more complex than the Jander model, but it is more accurate than the Jander model because it considers the area variation of the α/β phase interface.
(3) V-C model.
The V-C model considers the volume variation of the spherical particle before and after the hydrogen absorption and desorption processes. Thus, Eq. (11) can be modified as follows [42]:
| ρ∂r∂t=−DΔCr−r2/[zr30+r3(1−z)]1/3 | (18) |
where z is the volumetric expansion ratio. Then, the V-C model can be expressed as follows:
| z−[1+(z−1)ξ]2/3−(z−1)(1−ξ)2/3z−1=2DΔCr20ρt=kdit | (19) |
Given the volume expansion and contraction of particles, the equation of the V-C model becomes complex. In most cases, the alloy particle is small because of pulverization during the activation procedures. The effect of the volume expansion and contraction of particles on the kinetic curve obtained using the V-C model is inapparent compared with that obtained using the Jander model.
(4) Chou model.
The Chou model focuses on the physical interpretation of the generalized rate constant kdi [14,20−26,33,44]. The effect of temperature on kdi is embodied by the Arrhenius equation. The effect of pressure is embodied by the pressure term, which indicates the chemical driving force. Then, kdi can be expressed as follows:
| kdi=kdi,0r20exp(−ERT)(P1/2−P1/2eq) | (20) |
where ksp,0 is the factor for the rate constant of hydrogen diffusion. Similar to that of the Jander model, the equation of the Chou model for the RCS of the diffusion of hydrogen can be expressed as follows [33]:
| [1−(1−ξ)1/d]2=kdi,0r20exp(−ERT)(P1/2−P1/2eq)t | (21) |
Further considering the volume expansion and contraction of different particles, Eq. (21) can be modified as follows [44]. For the spherical particle:

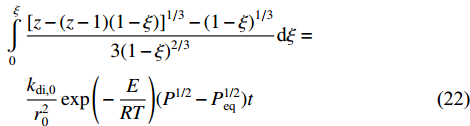

| ξ∫0[z−(z−1)(1−ξ)]1/3−(1−ξ)1/33(1−ξ)2/3dξ=kdi,0r20exp(−ERT)(P1/2−P1/2eq)t | (22) |
For the cylindrical particle:

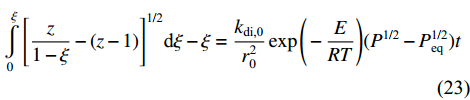

| ξ∫0[z1−ξ−(z−1)]1/2dξ−ξ=kdi,0r20exp(−ERT)(P1/2−P1/2eq)t | (23) |
For the plate particle:
| ξ2=kdi,0r20exp(−ERT)(P1/2−P1/2eq)t | (24) |
The Chou model describes the functional relationship between rate and temperature, pressure, particle radius, and equilibrium pressure. Moreover, the Chou model proposes the concept of “characteristic time tc,” whose value is equal to 1/kdi, to describe the time required for hydrogen absorption and desorption reactions to reach a specific reaction fraction (such as 100%, 80%, or 50%) [33].
Generally, the nucleation and growth processes can be described by the JMAK model.
(1) Classical JMAK (C-JMAK) model.
The well-known C-JMAK model can be expressed as follows [14,46−47]:
| ξ=1−exp(−kngtn) | (25) |
where n is the Avrami exponent, and kng is the rate constant of nucleation and growth. Generally, the value of n is equal to or greater than 0.5. Eq. (25) can be transformed into:
| [−ln(1−ξ)]1/n=(kng)1/nt | (26) |
or
| ln[−ln(1−ξ)]=nlnt+lnkng | (27) |
The RCS in the nucleation and growth processes may be the diffusion or movement of the interface [38]. Notably, this diffusion represents the diffusion of the hydrogen and metal atoms during the nucleation and growth processes. In Section 2.2.3, the diffusion of hydrogen indicates the long-range diffusion of the hydrogen atom in the β layer. The C-JMAK model has been widely applied to describe the hydrogen absorption and desorption processes of HSA because of its high practicality and the simplified form of its equation. In the C-JMAK model, the RCS should be evaluated based on the value of n. However, as the Avrami exponent n is the fitting value, the RCS corresponding to n should be further investigated for a specific hydrogen storage material (or refer to published works).
(2) Nucleation-index-incorporated JMAK (NI-JMAK) model.
The NI-JMAK model is developed from the C-JMAK model to consider the effect of the self-catalysis of the nucleation process [14,28]. The NI-JMAK model can be expressed as follows:
| ξ=1−exp{−kc+d/mng,0Beta(c,dm+1)exp(−cEn−dmEgRT)tc+d/m} | (28) |
where c is the nucleation index, m is the growth mode parameter, d/m is the growth index, En is the activation energy of nucleation, and Eg is the activation energy of growth. The NI-JMAK model utilizes five independent variables to describe the nucleation and growth processes under the isothermal condition. Because of the complicated form of the equation, its application to the hydrogen absorption and desorption processes of HSA is limited. However, the C-JMAK model is recommended as the fitting kinetic model for the RCS of nucleation and growth.
The chemical reaction process can be expressed as follows:
| [H](α/β)+M(α/β)↔MH(α/β) | (29) |
where [H](α/β), M(α/β), and MH(α/β) are the hydrogen, hydrogen storage, and metal hydride at the α/β phase interface, respectively. Many kinetic models, such as the contracting volume (CV) and Chou models, have been used to describe the chemical reaction process.
(1) CV model.
The chemical reaction process is simplified as the process of the movement of the α/β phase interface with a constant rate [48] and can be expressed as follows:
| ∂r∂t=−kint | (30) |
where kint is the moving rate of the α/β phase interface. Combining Eqs. (12) and (30), the equation of the CV model can be expressed as follows:
| 1−(1−ξ)1/d=kintr0t=kcrt | (31) |
where kcr is the rate constant of chemical reaction.
(2) Chou model.
The equation of the Chou model for the RCS of the chemical reaction process can be expressed as follows [33]:
| 1−(1−ξ)1/d=kcr,0r0exp(−ERT)(P1/2−P1/2eq)t | (32) |
where kcr,0 is the factor for the rate constant of chemical reaction. The comparison between the CV and Chou models shows that the forms of their equations are similar. However, the Chou model expands the rate constant kcr into a function of temperature, particle radius, pressure, and equilibrium pressure, which endows the model with more physical significance.
Many kinetic models suitable for the processes using the Sievert method have been introduced in this section according to the difference in RCSs. Generally, all kinetic models should be applied to fit the experimental data tested by the Sievert method so that the RCS can be decided. However, to reduce the workload of researchers, the following suggestions are given: (1) When the hydrogen pressure is far from the hydrogen absorption or desorption platform pressure, the diffusion of hydrogen, nucleation and growth, and chemical reaction are likely to be the RCS. By contrast, when the hydrogen pressure is close to the hydrogen absorption or desorption platform pressure, chemisorption or surface penetration is likely to be the RCS. (2) For the HSA with a small particle radius and volumetric expansion ratio, the effect of the α/β phase interface area and the volume expansion and contraction of particles can be ignored. Thus, the Jander or Chou model is proposed for this type of HSA.
Only a few studies focusing on kinetic models appropriated for the hydrogen absorption and desorption processes using the flowing volumetric method have been published. Lin et al. [6,49] employed a kinetic model at constant flow to analyze the hydrogen absorption and desorption processes of HSA using the flowing volumetric method. As the hydrogen flows are constants, the curve of reaction fraction with time is nearly linear when the hydrogen concentration is less than the maximum concentration of HSA. Thus, the curve of pressure with time is analyzed. Because of the continuous pressure curve, the effect of pressure on the kinetic process can be easily revealed.
The kinetic equation for the chemisorption process can be expressed as follows [6]:
| P=±r0Fkch,0exp(−ERT)+Peq | (33) |
where F is the flow per unit mass. “+” and “−” in “
| Peq=f(H/M)exp[−ΔHR(1T−1Tref)] | (34) |
where H/M is the hydrogen concentration (defined as the mole ratio of hydrogen and alloy), Tref is the reference temperature of the PCT curve, f(H/M) is the polynomial equation of the PCT curve at Tref. The hydrogen in the void area of the sample cell can be ignored when the volume of the void area is small. Then, H/M can be calculated by the following equation:
| H/M=(H/M)0±2M0VmFt | (35) |
where Vm is the standard molar volume of gas, M0 is the relative molar mass, and (H/M)0 is the initial hydrogen concentration.
The kinetic equation for the surface penetration process can be expressed as follows [6]:
| P=[±r0Fksp,0exp(−ERT)+√Peq]2 | (36) |
The kinetic equation for the diffusion of hydrogen can be expressed as follows [6]:
| P={r20F[1−(1−ξ)1/3]kdi,0exp(−ERT)(1−ξ)1/3+√Peq}2 | (37) |
where ξ can be calculated by the following equation:
| ξ=H/MH/Mmax | (38) |
where H/Mmax is the maximum of H/M.
The kinetic equation for the nucleation and growth processes can be expressed as follows:
| P=Peqexp[±Fkng,0exp(−ERT)n[−ln(1−ξ)]n−1n(1−ξ)] | (39) |
The kinetic equation for the hydrogen absorption of the chemical reaction process can be expressed as follows:
| P=[r0Fkcr,0exp(−ERT)(1−ξ)2/3+√Peq]2 | (40) |
The kinetic equation for the hydrogen desorption of the chemical reaction process can be expressed as follows:
| P=[−r0Fkcr,0exp(−ERT)ξ2/3+√Peq]2 | (41) |
Substituting Eqs. (34) and (35) into Eqs. (33), (36), (37), and (39) to (41), the equations of pressure with time at a constant flow are established for different processes. The form of the equation of the kinetic model at constant flow is complicated. The key to the kinetic model at constant flow is the accuracy of the prediction of Peq.

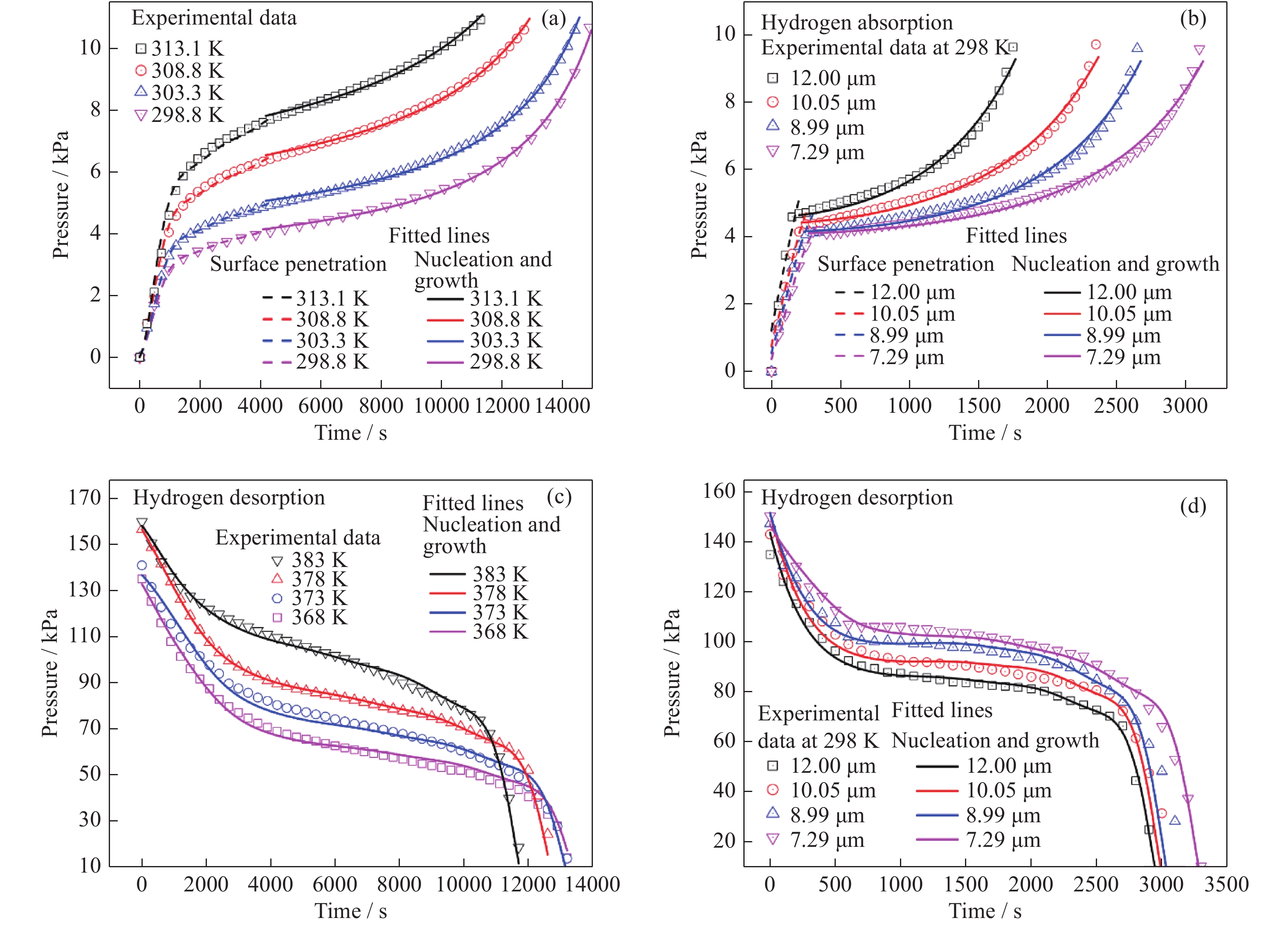

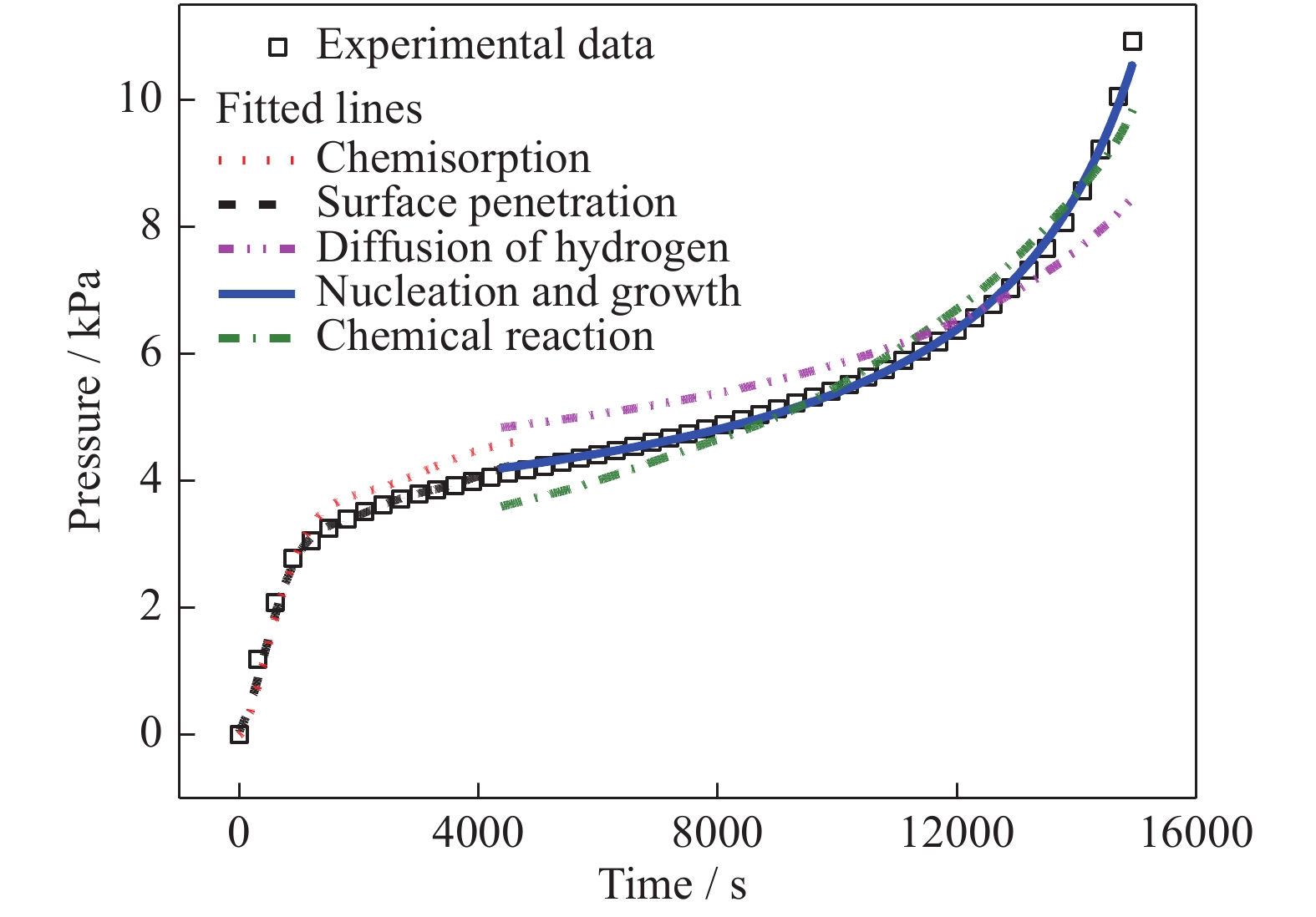

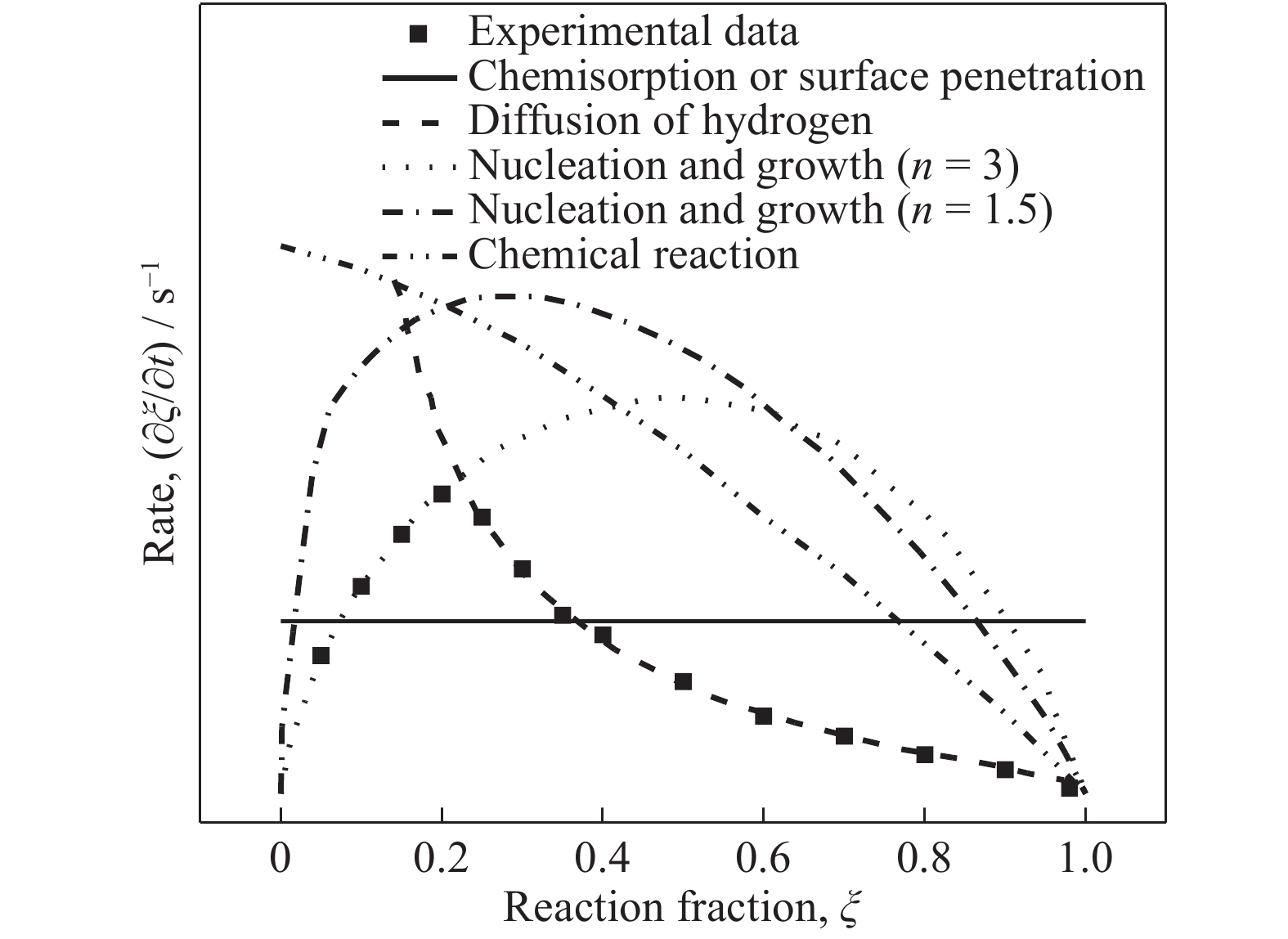

The kinetic models can be used to fit the experimental data of the hydrogen absorption and desorption reactions of HSA according to different kinetic measurement methods. The RCS of hydrogenation or dehydrogenation at different pressures, temperatures, and particle radii can be analyzed using the fitted results, as well as the values of activation energy and rate constant. In this section, the analysis of the experimental kinetic data is summarized.
According to the experimental data from different kinetic measurement methods, the analysis procedures have slight differences. For the Sievert method, the experimental data of reaction fraction with time, as well as the rate with reaction fraction, can be applied to analyze the kinetic mechanism. For the flowing volumetric method, the experimental data of pressure with time is applied. In this section, these analysis procedures are all summarized.

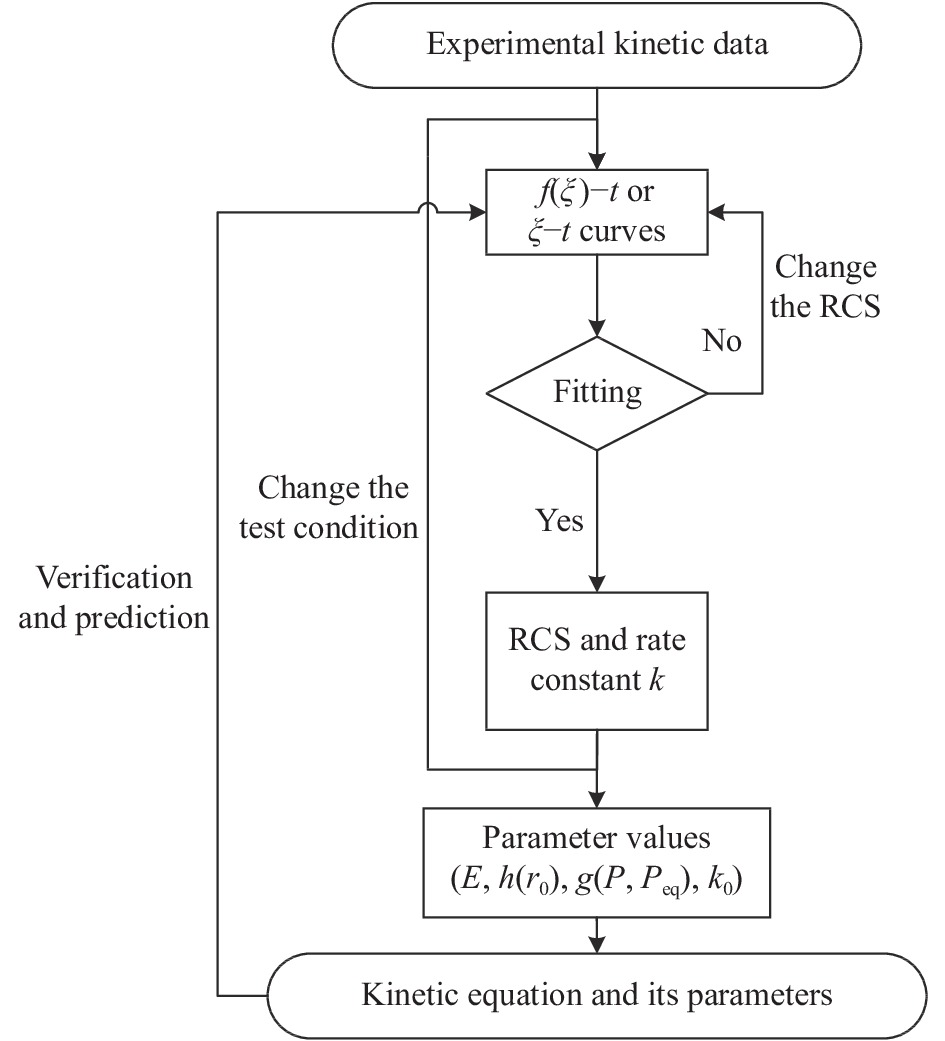

The kinetic model can be used to analyze the experimental kinetic data of reaction fraction ξ with time t. The hydrogen absorption and desorption processes of HSA are mostly controlled by chemisorption, surface permeation, diffusion of hydrogen, nucleation and growth, and chemical reaction. The general formula of the kinetic equation can be written as follows:
| f(ξ)=kt | (42) |
where f(ξ) is the function of ξ which depends on the type of RCS. The rate constant k can be derived as follows:
| k=k0exp(−ERT)h(r0)g(P,Peq) | (43) |
where h(r0) and g(P, Peq) are the influence terms of the particle radius and pressure, respectively, and k0 is the factor of rate constant. The analysis procedures are shown in Fig. 4. According to the fitted results of the f(ξ)–t curve using the kinetic models for different RCSs, the RCS and rate constant are determined. Then, repeating the fitting process using the f(ξ)–t curves under different test conditions, including temperature, pressure, and particle radius, the activation energy E, k0, h(r0), and g(P, Peq) are all determined.

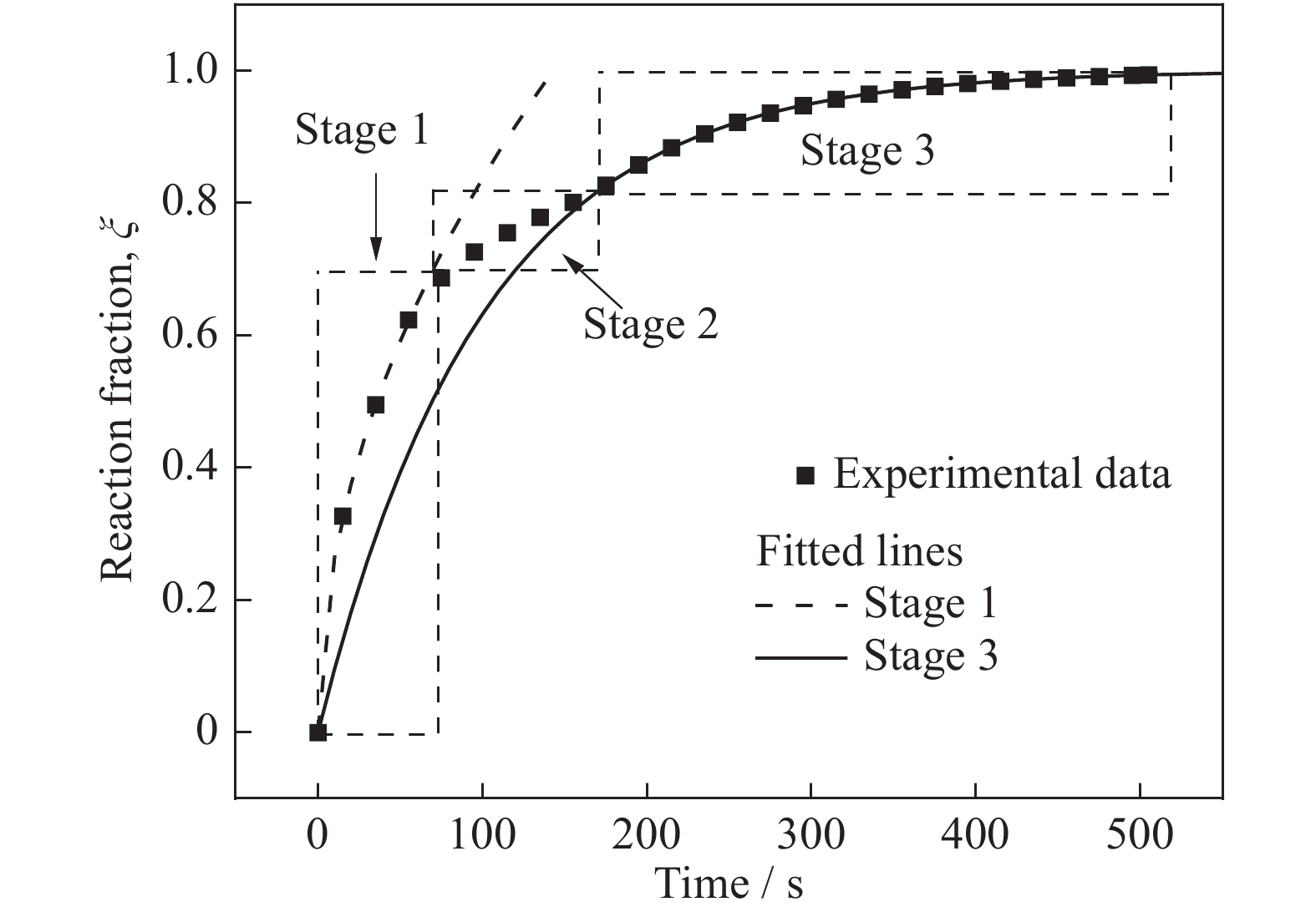

The RCS may change with the hydrogen concentration of some HSAs. Given the difference in f(ξ) for different RCSs, the multistage fitted results cannot be easily presented in one plot of f(ξ)–t visually. Thus, the plot of ξ–t is used to analyze the kinetic process, as shown in Fig. 5. Most kinetic models can be transformed into the form of ξ = f(t). A complete ξ–t curve can be processed in three stages. The RCS of Stages 1 and 3 can be determined by the corresponding kinetic model. Stage 2 is the transitional stage, and its RCS is mixed. Its hydrogen absorption and desorption rate v2 can be calculated by the following equation:
| v2=11/v1+1/v3 | (44) |
where v1 and v3 are the hydrogen absorption and desorption rates of Stages 1 and 3, respectively.
The plot of rate and reaction fraction can also be used to analyze the kinetic process tested by the Sievert method [12,50]. When the particle of HSA is spherical, regardless of particle volume change, ∂ξ/∂t and ξ can be plotted in Fig. 6 according to the kinetic models discussed in Section 2.2. For the chemisorption or surface penetration process, the rate does not change with the reaction fraction. Thus, the plot of ∂ξ/∂t–ξ is a straight line. For the diffusion of hydrogen, the rate decreases gradually with the increase of the reaction fraction. Thus, the plot of ∂ξ/∂t–ξ shows a semi-concave curve. For the nucleation and growth processes, the rate initially increases and subsequently decreases. Thus, the plot of ∂ξ/∂t–ξ shows a completely convex curve, which slightly differs with different n values. For the chemical reaction process, the rate also decreases gradually with the increase of the reaction fraction. However, the plot of ∂ξ/∂t–ξ shows a semi-convex curve. The comparison between the experimental data and the ∂ξ/∂t–ξ curves plotted in Fig. 6 shows that the rate is controlled by the nucleation and growth processes (n = 3) at ξ < 0.2, which then transform into the diffusion of hydrogen at ξ > 0.2. Thus, the plot of rate and reaction fraction can be applied to estimate the RCS at different reaction fraction ranges according to the line type.
The plot of pressure and time is used to analyze the kinetic process tested by the flowing volumetric method [6,49]. According to the kinetic model at constant flow discussed in Section 2.3, P and t, as well as the fitted results, can be plotted in Fig. 7. The precondition for the application of this kinetic analysis method is the equilibrium pressure equation, which can be determined from the experimental PCT curves [51−54]. When the pressure is lower than or close to the MH equilibrium pressure, the β phase cannot be generated, and the potential RCS is chemisorption or surface penetration. When the pressure is higher than the MH equilibrium pressure, the β phase layer can be generated rapidly, and the potential RCS is the diffusion of hydrogen, nucleation and growth, or chemical reaction. Thus, according to the fitted result, the RCS can be determined at different pressure ranges.
Given that the hydrogen absorption and desorption reactions of HSA are exothermic and endothermic processes, respectively, the temperature in the sample cell has a considerable effect on the reaction rate. The Arrhenius equation is a well-known equation used to embody the effect on the rate constant [55−56], which can be expressed as follows:
| k=Aexp(−ERT) | (45) |
where A is the pre-exponential factor. According to the fitted result of kinetic models, the values of rate constant k at different temperatures can be determined. Then, plotting the curve of lnk and 1/T, the value of E is evaluated. Table 1 shows the activation energy values of some typical HSAs. The activation energy values are compared in absorbed or desorbed one mol H2 in this work. Generally, k increases with temperature, and the value of E is positive. However, as k is related to the difference between pressure and equilibrium pressure, i.e., g (P, Peq) term in Eq. (43), the value of g (P, Peq) is considered to be close to the experimental data. Otherwise, the phenomenon that the value of k decreases with temperature may occur.
| No. | HSA | Test conditions | RCS | E / (kJ∙mol−1) | Ref. |
| 1 | LaNi5 | 293–333 K, P − Peq = 100 kPa | Chemisorption | 19.66 (ab) | [57] |
| 2 | LaNi4.5Al0.5 | 273–343 K, P − Peq = 32.4 kPa | Chemisorption | 39.77 (ab) | [58] |
| 3 | MmNi4.2Al0.8 | 288–308 K, 0.013 MPa | Diffusion of hydrogen | 48.09 (de) | [59] |
| 4 | La1.5Ni0.5Mg17 | 523–573 K, 0.755 MPa | Diffusion of hydrogen | 90 (ab) | [60] |
| 5 | ZrCo | 544–603 K, P/P0 = 0.9–1 MPa | Nucleation and growth | 120 (ab) | [61] |
| 6 | TiFe | 243–298 K, 0.02 MPa | Chemisorption | 3.35 (ab) | [62] |
| 7 | TiFe0.8Ni0.2 | 373–423 K, |Peq − P0.5|/Peqa | Diffusion of hydrogen | 53.13 (ab) | [63] |
| 8 | Zr0.2Ho0.8Co2 | 323–473 K, 0–5 MPa | ― | 15 (ab) | [64] |
| 9 | Ti33V20Cr47 | 293–353 K, 3.5 MPa | Diffusion of hydrogen | 25.7 (ab) | [65] |
| 10 | Mg2Ni | 528–623 K, 4 MPa | Diffusion of hydrogen | 44 (ab) | [22] |
| 11 | Mg1.9Ag0.1Ni | 523–573 K, 0.768 MPa | Diffusion of hydrogen | 52 (ab) | [66] |
| 12 | MgH2−5at%V | 453–573 K, 0.015 MPa | ― | 62 (de) | [67] |
| Note: aP0.5 is the pressure at the reaction fraction of 0.5. | |||||
DownLoad:
CSV
The driving force of the α → β phase transformation is the difference between hydrogen concentration and equilibrium hydrogen concentration, which is macroscopically represented by the difference between pressure and equilibrium pressure of HSA. Therefore, for the hydrogen absorption process, a high pressure leads to a fast hydrogen absorption rate. For the dehydrogenation process, a high pressure leads to a slow dehydrogenation rate. Notably, if the hydrogen absorption pressure is lower than the equilibrium pressure of α → β phase transformation, then only the hydrogen solid solution of the α phase will be generated. When the hydrogen absorption pressure is higher than the equilibrium pressure of the α → β phase transformation, the β phase layer will be generated on the surface of the particle rapidly. Therefore, the RCS will be different at different pressure ranges. The relationship between the rate constant and the pressure and equilibrium pressure can be expressed as follows:
| k=k0g(P,Peq) | (46) |
In the Chou model, g(P, Peq) is transformed into P1/2 −
| No. | HSA | Test conditions | RCS | g(P, Peq) | Ref. |
| 1 | LaNi5 | P − Peq = 50−200 kPa, 303 K | Chemisorption | P − Peq | [57] |
| 2 | LaNi4.5Al0.5 | P − Peq = 25.3−66.9 kPa, 298 K | Chemisorption | P − Peq | [58] |
| 3 | La1.5Ni0.5Mg17 | 0.256–0.992 MPa, 553 K | Diffusion of hydrogen | [(P − Peq)/Peq]2 | [60] |
| 4 | Mg2Ni | 0.275–1.133 MPa, 553 K | Diffusion of hydrogen | P1/2 − P1/2eq | [22] |
| 5 | MgH2−5at%V | 0.007–0.4 MPa, 533–673 K | ― | 1 − P/Peq | [68] |
| 6 | Mg−10wt%Ni | P − Peq = 20.1–54.6 kPa, 573 K | ― | [P − Peq]1.25 | [69] |
| 7 | ZrCo | <1 MPa, 300 K | Chemisorption | P2 | [70] |
| 8 | TiFe | 1.717–2.626 MPa, 294 K | Chemisorption | P − Peq | [62] |
| 9 | TiFe0.8Ni0.2 | 0.246–0.733 MPa, 408 K | ― | (Peq − P)/Peq | [71] |
DownLoad:
CSV
Generally, the specific surface area and diffusion cross section increase with the decrease of the particle radius [52,72−73]. Thus, decreasing the particle radius of HSA can enhance the hydrogen absorption and desorption rates. The relationship between rate constant and particle radius can be expressed as follows:
| k=k0h(r0) | (47) |
For different hydrogen absorption and desorption processes, the influence of particle radius is also different: for physical adsorption, chemical adsorption, surface penetration, and chemical reaction, h(r0) is generally expressed as 1/r0; for the diffusion of hydrogen, h(r0) is generally expressed as
The hydrogen absorption and desorption processes of HSA are complex and can be influenced by the preparation methods, powder particle state, and catalyst. Different kinds of HSA may have different RCSs; even the HSA with similar composition could have a different RCS. Notably, the kinetic model is semi-empirical. The completed hydrogen absorption and desorption kinetic mechanism should be further analyzed by conducting other experiments, such as scanning electron microscopy (SEM) and transmission electron microscopy (TEM) [74]. In this section, the kinetic studies of the hydrogen absorption and desorption processes of AB5-type, AB2-type, AB-type, and Mg-based HSAs are introduced.

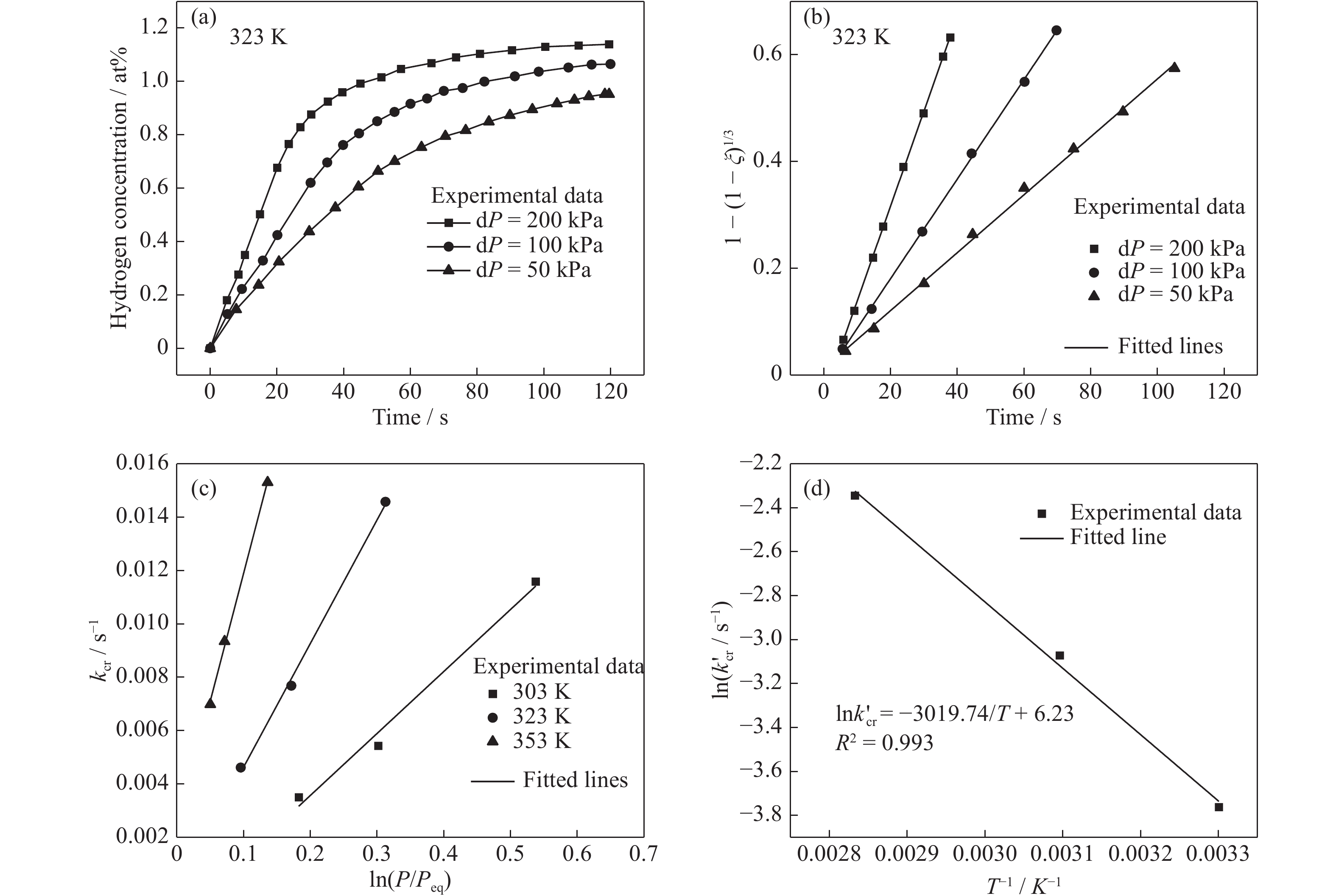

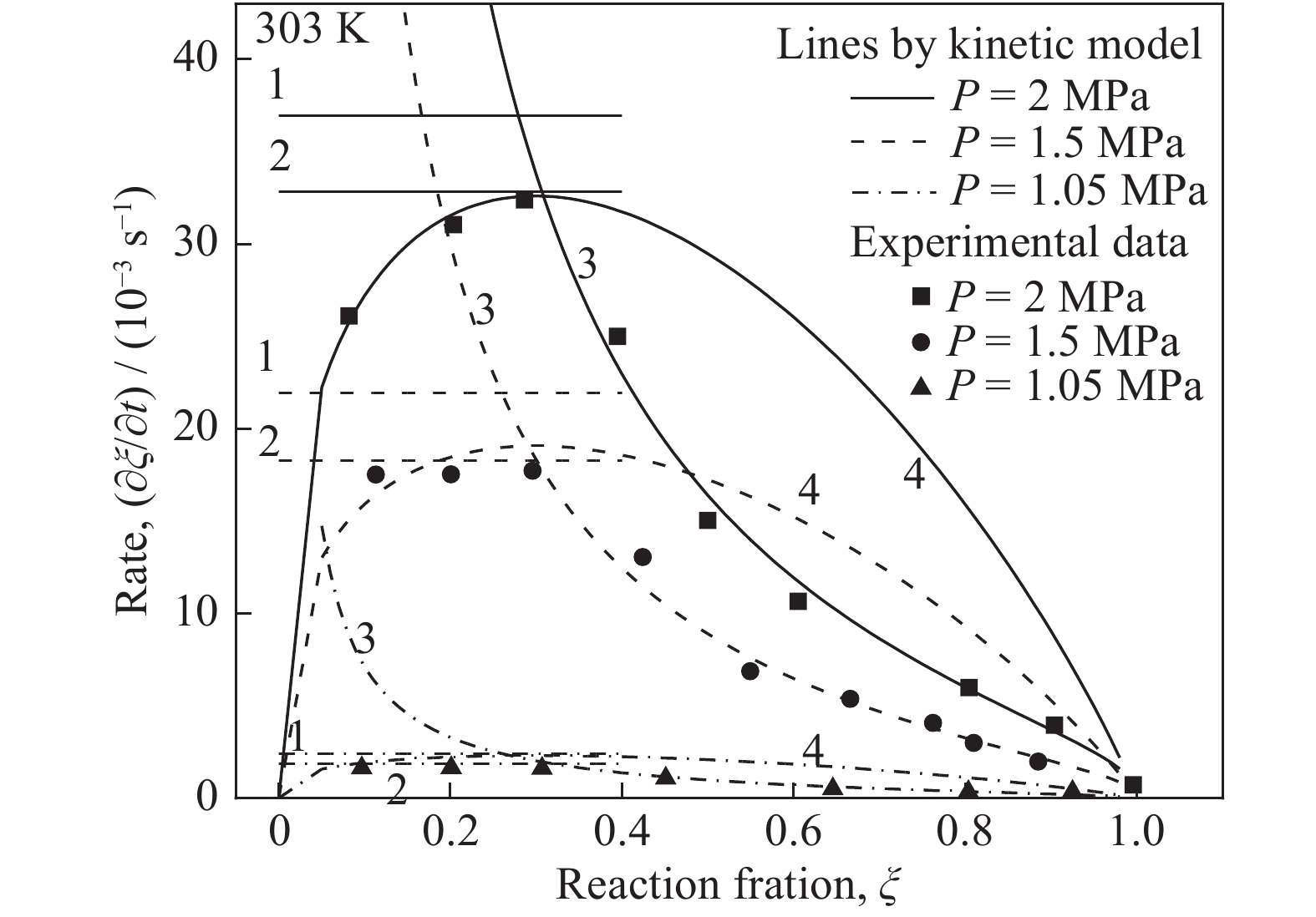

LaNi5 is a typical AB5-type HSA, and its hydrogen concentration curve at different pressure differences dP of hydrogen absorption pressure and equilibrium pressure is shown in Fig. 8(a) [75]. The maximum hydrogen concentration increases with the increase of dP. Based on the CV model, the curves of 1 − (1 − ξ)1/3 and t are plotted in Fig. 8(b). Notably, 1 − (1 − ξ)1/3 has a linear relationship with t, and the values of R2 are higher than 0.98. The fitted slopes are the value of the rate constant. Thus, the RCS for the hydrogen absorption process of LaNi5 is the chemical reaction. With the decrease of dP from 200 to 50 kPa, the rate constants kcr are 0.01457, 0.00768, and 0.00461 s−1. The equilibrium pressure Peq of the alloy at 323 K is approximately 530 kPa. Assuming that the form of g(P, Peq) in Eq. (43) is ln(P/Peq), the curve of kcr and ln(P/Peq) can be plotted in Fig. 8(c). The linear fitted result of kcr and ln(P/Peq) indicates that the form of g(P, Peq) in Eq. (43) can be evaluated as ln(P/Peq). Thus, the kinetic equation of LaNi5 can be written as follows:
| 1 - {(1 - \xi )^{1/3}} = k_{{\text{cr}}}' \ln (P/{P_{{\text{eq}}}})t = {k_{{\text{cr,0}}}}\exp \Bigg( - \frac{E}{{RT}}\Bigg)\ln (P/{P_{{\text{eq}}}})t | (48) |
where
Then, according to the experimental kinetic curves at different temperatures, the values of kcr and
| 1 - {(1 - \xi )^{1/3}} = 507.75\exp \Bigg( - \frac{{3019.74}}{T}\Bigg)\ln (P/{P_{{\text{eq}}}})t | (49) |
However, different researchers have different estimations of the RCS of the hydrogen absorption process of LaNi5 alloy [24,75−80]. Table 3 shows some published results for the RCS of LaNi5 alloys. Although the composition of LaNi5 alloy is the same, the RCS and activation energy evaluated by different researchers are different. This finding indicates that the hydriding/dehydriding kinetic mechanism of HSA is complex, which is related not only to the composition but also to the test conditions, preparation method of the alloy, particle and its surface states, and impurity. Thus, researchers should consider these factors when analyzing the kinetic mechanism and refer to other published works. Other characterization methods, such as SEM and TEM, are necessary [74,81].
| No. | Test conditions | Kinetic model | RCS | E / (kJ·mol−1) | Ref. |
| 1 | 288–353 K, <1 MPa | CV | Chemical reaction | 32.2 | [75] |
| 2 | 273–363 K, 0.5 MPa | ― | Nucleation and growth | 31.8 | [76] |
| 3 | 333–338 K, 2 MPa | ― | Mixed (chemisorption and diffusion of hydrogen) | ― | [77] |
| 4 | 298–323 K, Pr = 2–5a | C-JMAK (n = 1) | Nucleation and growth (one-dimensional diffusion) | 27 | [78] |
| 5 | 298–313 K, Pr = 2–5 | C-JMAK (n = 1) | Nucleation and growth (one-dimensional diffusion) | 30–40 | [79] |
| 6 | 303–333 K, Pr = 2 | Jander | Diffusion of hydrogen | 27.7 | [80] |
| 7 | 303 K, 0.6–1 MPa | Chou | Diffusion of hydrogen | ― | [24] |
| Note: a Pr is the ratio of pressure to equilibrium pressure. | |||||
DownLoad:
CSV
The substitution of alloying elements can change the RCS and activation energy of the hydrogen absorption and desorption processes in AB5 alloys [49,82−84]. The LaNi5−xAlx alloy is a common ternary AB5 alloy [82]. Fig. 9 shows the hydrogen absorption and desorption pressure curves of LaNi4.25Al0.75 [49] at different temperatures and particle radii tested by the flowing volumetric method. The fitted results indicate that the RCSs for the hydrogen absorption process of LaNi4.25Al0.75 at different pressure ranges are surface permeation and nucleation and growth of MH, whereas the RCS for the hydrogen desorption process is only the nucleation and growth of MH.
Moreover, because of the high cost of the elementary substance La, the mixed rare earth Mm can be used to replace La [85−86]. The RCS of MmNi5 alloy can be determined based on the curves of ∂ξ/∂t and ξ. Notably, the RCS of the hydrogen absorption process changes with the pressure and reaction fraction [50], as shown in Fig. 10. The lines are re-plotted according to the kinetic equations (6)−(8) given in Ref. [50]. At the initial stage of the hydrogen absorption reaction (ξ < 0.35), when the hydrogen absorption pressure P is low and close to the equilibrium pressure of 1 MPa (P ≤ 1.5 MPa), the RCS is surface permeation. When the hydrogen absorption pressure continues to increase, the RCS will change to nucleation and growth (n ≈ 1.55). With the further increase of the reaction fraction (ξ > 0.4), the RCS changes from surface penetration (or nucleation and growth) to the diffusion of hydrogen.
The AB2-type alloy has a Laves phase structure [87], such as Zr-based [23,88−89] and Ti-based alloy [90−91]. Ti1.02Cr1.0Fe0.7−xMn0.3Alx (0 ≤ x ≤ 0.1) is a typical Zr-based alloy, and its hydrogen desorption process can be described by the C-JMAK model (n = 1). The RCS is the nucleation and growth of MH (one-dimensional diffusion), and the activation energy is within 7.4−9.9 kJ∙mol−1 [92]. Moreover, because of the complex phase composition of AB2-type alloy with multiple MH phases, the hydrogen absorption and desorption mechanism may change with the processes of the hydrogen absorption and desorption reactions. The hydrogen absorption process of Zr0.2Ho0.8Fe2 alloy has two hydrogen absorption stages [93]. Although both stages can be fitted by the C-JMAK model (n = 1), the rate constant and activation energy are different. The activation energies of both stages are 24 and 2 kJ∙mol−1 [93].
ZrCo-based alloy is one of the typical AB-type HSA, and the RCS of the hydrogen absorption reaction in the temperature range of 544−603 K is nucleation and growth with the activation energy of 120 kJ∙mol−1 [61]. The fluorinated and Ni-plated ZrCo alloys are controlled by chemisorption, but the hydrogen absorption kinetics of Ni-plated ZrCo alloys is significantly improved because of the easy dissociation of H2 on Ni at the particle surface [94]. The C-JMAK model is used to analyze the hydrogen absorption kinetics curves of the ZrCo0.95Cr0.05 alloy [95]. The fitted results show that the values of n for ZrCo0.95Cr0.05 at 373, 348, and 323 K are 2.83, 1.36, and 1.07, respectively. Notably, with the decrease of temperature, the RCS of the hydrogen absorption reaction of ZrCo0.95Cr0.05 changes from the three-dimensional diffusion to the one-dimensional diffusion of nucleation and growth.
The kinetic properties of hydrogen absorption and desorption of pure Mg are poor but can be enhanced by alloying or adding catalysts [96−100]. Table 4 shows the kinetic results of Mg-based HSAs. For pure Mg, the hydrogen absorption reaction is initially controlled by chemisorption and subsequently controlled by the diffusion of hydrogen [109]. For MgH2, the hydrogen absorption reaction is controlled by the diffusion of hydrogen [110]. Recently, Shriniwasan et al. [81,111] investigated the hydrogen absorption mechanism of Mg by combining SEM and kinetic analysis. They determined that the RCSs of Mg are chemisorption at the initial stage, followed by the movement of the interface during the nucleation and growth processes, and finally, the diffusion of hydrogen [81].
| No. | HSAs | Preparation methods | Test conditions | Kinetic model | RCS | E / (kJ∙mol−1) | Ref. |
| 1 | Mg−30wt% LaNi5 | MA; HC | 302−423 K, 1 MPa | Chou | Surface penetration; Diffusion of hydrogen | 28.0 (ab); 25.2 (ab) | [25] |
| 2 | La1.5Ni0.5Mg17 | HC | 523−573 K, 0.755 MPa | Jander | Diffusion of hydrogen | 90 (ab) | [60] |
| 3 | Nd4Mg80Ni8 | Melting | 373−623 K, 3.4 MPa; 564−620 K, Vacuum | Chou | Diffusion of hydrogen (ab); Surface penetration (de) | 82.3 (ab) 97.5 (de) | [101] |
| 4 | Mg18In1Ni3 | MA | 493−583 K, Vacuum | C-JMAK (n = 1) | Nucleation and growth (one-dimensional diffusion) | 107 (de) | [102] |
| 5 | LaNiMg17 | MA | 553−623 K, 0.755 MPa | Chou | Diffusion of hydrogen | 71 (ab) | [103] |
| 6 | Mg−Y2O3; Mg−Y | Arc melting | 473−573 K, 3 MPa | C-JMAK | ― | 79.9 (ab) 56.2 (ab) | [104] |
| 7 | Mg80Ce18Ni2 | Melting | 523−585 K, 3.5 MPa | C-JMAK (n = 0.53) | Nucleation and growth (one-dimensional diffusion) | 63 (de) | [105] |
| 8 | Mg12NiY | Melting | 523−623 K, Vacuum | C-JMAK (n = 0.6−0.8) | ― | 44.96 (de) | [106] |
| 9 | Mg2In0.1Ni | Melting | 467−507 K, Vacuum | C-JMAK (n = 0.6−0.8) | Nucleation and growth (one-dimensional diffusion) | 28.9 (de) | [107] |
| 10 | Mg−TiH1.971−TiH1.5 | HC | 298−673 K, 4 MPa; 473−673 K, Vacuum | C-JMAK (n = 0.3−1.1) | Nucleation and growth (one-dimensional diffusion) | 12.5 (ab); 46.2 (de) | [108] |
DownLoad:
CSV
The alloying method can introduce a new phase to Mg [101,112−113], which can change/increase the reaction path of the hydrogen absorption and desorption processes [114−117], significantly reduce the activation energy and hydrogen desorption temperature of Mg alloy, and change the RCS. Mg2Ni is a typical binary Mg-based alloy [118−120]. The addition of Ni can considerably increase the rate of the hydrogen absorption and desorption reactions, and the temperature of the hydrogen desorption reaction of Mg2Ni is significantly lower than that of pure Mg. The rate of the hydrogen absorption reaction of Mg2Ni is linearly related to pressure, and the RCS is chemisorption with the activation energy of 19.6 kJ∙mol−1 [121].
Generally, two or more elements, such as Nd, Ni, Ce, Y, La, In, and Ag, are added to Mg to improve the kinetic properties of the Mg alloy [55,66,98,117,122−123]. The Mg18In1Ni3 alloy prepared by ball milling can absorb 3.8wt% hydrogen in 20 min at 553 K and desorb 1wt% hydrogen in 10 min at 493 K. The C-JMAK model was used to fit the hydrogen desorption kinetic curves, and the values of n are close to 1, indicating that the RCS was the one-dimensional diffusion of nucleation and growth [102]. The calculated activation energy was 107 kJ∙mol−1, which was lower than the 160 kJ∙mol−1 of pure Mg [41]. The Chou, Jander, and C-JMAK models have been used to systematically analyze the hydrogen absorption and desorption kinetics of Mg−Ni−La [60,103], Mg−Ni−Ce [124], and Mg−Ni−Nd [101]. The kinetic properties of the LaNiMg17 alloy prepared by the mechanical alloying (MA) method are improved because of the introduction of surface defects. The RCS of the hydrogen absorption and desorption reaction is the diffusion of hydrogen. The activation energy of the hydrogen absorption reaction of the LaNiMg17 alloy prepared by the MA method is 71 kJ∙mol−1 [103], whereas that of the La1.5Ni0.5Mg17 alloy prepared by the hydriding combustion (HC) method is 90 kJ∙mol−1 [60]. The hydrogen absorption reaction of the Nd4Mg80Ni8 alloy is controlled by the diffusion of hydrogen with the activation energy of 82.3 kJ∙mol−1 , whereas the hydrogen desorption reaction of the Nd4Mg80Ni8 alloy is controlled by surface penetration with the activation energy of 97.5 kJ∙mol−1 [101].
The addition of a catalyst to Mg is a common method to improve the kinetic performance of the hydrogen absorption and desorption reactions [125]. The catalysts mainly include oxides, complex hydrides, and La and Ni compounds [104,126−128]. For Mg−Y2O3 and Mg−Y composite powders prepared by arc plasma melting, Mg−Y2O3 can adsorb 5wt% (573 K) hydrogen at 100 s, whereas Mg−Y only adsorbs 2.3wt% hydrogen under the same conditions [104]. The C-JMAK model was used to analyze the kinetics of the two powders, and the values of activation energy were 79.9 and 56.2 kJ∙mol−1. The high pre-exponential factor was the reason for the fast hydrogen absorption rate of Mg−Y2O3 [104]. The hydrogen absorption kinetics of Mg−xwt%LaNi5 (x = 10−50) composites prepared by the MA, microwave sintering, and traditional sintering methods were determined as follows [25]: (1) The RCS of Mg−xwt%LaNi5 was the diffusion of hydrogen, and the kinetic properties of Mg−xwt%LaNi5 were enhanced with the increase of LaNi5 content. (2) Mg−30wt%LaNi5 prepared by mechanical ball milling was controlled by surface penetration, whereas the alloys prepared by HC and microwave sintering were controlled by the diffusion of hydrogen atoms. The hydrogen absorption and desorption rates and the kinetic mechanism can be influenced by the amount of catalyst or catalytic phase and the preparation method.
Kinetics is significant for the development of HSA and the design of the HST using numerical simulation. In this paper, we review the kinetic models and their corresponding analysis procedures, as well as their applications to HSA. The development of theoretical kinetic models lagged behind experimental investigations. Many kinetic models only use the rate constant to express the effect of temperature or pressure on reaction rate, and only a few models can express the relationship between reaction fraction and multiple factors, such as temperature, pressure, and particle size. Most kinetic models are constructed based on the isothermal process, and only the NI-JMAK model can extend to the non-isothermal condition using the parameters obtained from the isothermal condition. The application of kinetic models faces the problem that some kinetic models are presented as differential equations of reaction rate, which cannot be conveniently applied in practice. Therefore, a model that has analytical formulas, is applicable under isothermal and non-isothermal conditions, and considers multiple factors is desirable for further hydrogenation and dehydrogenation kinetic analysis.
The kinetic mechanism of the hydrogen absorption and desorption reactions of AB5-type, AB2-type, AB-type, and Mg-based HSAs is not the same, which is related to the composition of the alloys, preparation methods, powder particle states, type and content of catalysts, and test conditions of hydrogen absorption and desorption. In general, alloying and adding catalysts can improve the hydrogen absorption and desorption kinetics of the alloy and reduce the activation energy but do not necessarily change the RCS. According to the current research results, most of the hydrogen absorption and desorption processes are controlled by the diffusion of hydrogen or the nucleation and growth of MH. Thus, we propose the use of the kinetic models for the diffusion of hydrogen or the nucleation and growth processes to analyze the experimental data and the use of other kinetic models for other RCSs. After obtaining the best-fit model, the kinetic parameters, such as the rate constant, activation energy, Avrami exponent, and forms of the pressure and particle radius terms, can be determined according to the fitted results. Notably, accurate and unambiguous experimental data are the prerequisite for kinetic analysis. Then, the accurate kinetic equation and its parameters can be used in the mathematical model to design the HST. In the future, a high-accuracy and concise kinetic model is necessary to describe the actual hydrogen absorption and desorption processes of HSA. The kinetic analysis may be combined with in situ experiments or molecular dynamics theory to explain the kinetic mechanism. We believe that this review is helpful for researchers focusing on the kinetic mechanism of HSA or the design of the HST by providing systematic fundamentals, analysis procedures, and application of kinetic models.
This work was financially supported by the Chongqing Special Key Project of Technology Innovation and Application Development, China (No. cstc2019jscx-dxwtB0029), the National Natural Science Foundation of China (Nos. 51871143 and U2102212), the Science and Technology Committee of Shanghai, China (No. 19010500400), and the Shanghai Rising-Star Program (No. 21QA1403200).
All authors certify that they have no affiliations with or involvement in any organization or entity with any financial interest or non-financial interest in the subject matter or materials discussed in this manuscript.
| [1] |
B. Sakintuna, F. Lamari-Darkrim, and M. Hirscher, Metal hydride materials for solid hydrogen storage: A review, Int. J. Hydrogen Energy, 32(2007), No. 9, p. 1121. DOI: 10.1016/j.ijhydene.2006.11.022
|
| [2] |
T.Y. Wei, K.L. Lim, Y.S. Tseng, and S.L.I. Chan, A review on the characterization of hydrogen in hydrogen storage materials, Renewable Sustainable Energy Rev., 79(2017), p. 1122. DOI: 10.1016/j.rser.2017.05.132
|
| [3] |
Y. Li, L.N. Cheng, W.K. Miao, C.X. Wang, D.Z. Kuang, and S.M. Han, Nd−Mg−Ni alloy electrodes modified by reduced graphene oxide with improved electrochemical kinetics, Int. J. Miner. Metall. Mater., 27(2020), No. 3, p. 391. DOI: 10.1007/s12613-019-1880-z
|
| [4] |
H.Q. Nguyen and B. Shabani, Proton exchange membrane fuel cells heat recovery opportunities for combined heating/cooling and power applications, Energy Convers. Manage., 204(2020), art. No. 112328. DOI: 10.1016/j.enconman.2019.112328
|
| [5] |
C.S. Park, K. Jung, S.U. Jeong, K.S. Kang, Y.H. Lee, Y.S. Park, and B.H. Park, Development of hydrogen storage reactor using composite of metal hydride materials with ENG, Int. J. Hydrogen Energy, 45(2020), No. 51, p. 27434. DOI: 10.1016/j.ijhydene.2020.07.062
|
| [6] |
X. Lin, H.G. Yang, Q. Zhu, and Q. Li, Numerical simulation of a metal hydride tank with LaNi4.25Al0.75 using a novel kinetic model at constant flows, Chem. Eng. J., 401(2020), art. No. 126115. DOI: 10.1016/j.cej.2020.126115
|
| [7] |
Y. Ye, J.F. Lu, J. Ding, W.L. Wang, and J.Y. Yan, Numerical simulation on the storage performance of a phase change materials based metal hydride hydrogen storage tank, Appl. Energy, 278(2020), art. No. 115682. DOI: 10.1016/j.apenergy.2020.115682
|
| [8] |
W.C. He, X.W. Lü, C.Y. Ding, and Z.M. Yan, Oxidation pathway and kinetics of titania slag powders during cooling process in air, Int. J. Miner. Metall. Mater., 28(2021), No. 6, p. 981. DOI: 10.1007/s12613-020-2019-y
|
| [9] |
X.Y. Shen, Y.Y. Liang, H.M. Shao, Y. Sun, Y. Liu, and Y.C. Zhai, Extraction and kinetic analysis of Pb and Sr from the leaching residue of zinc oxide ore, Int. J. Miner. Metall. Mater., 28(2021), No. 2, p. 201. DOI: 10.1007/s12613-020-1972-9
|
| [10] |
M.M. Sun, J.L. Zhang, K.J. Li, K. Guo, Z.M. Wang, and C.H. Jiang, Gasification kinetics of bulk coke in the CO2/CO/H2/H2O/N2 system simulating the atmosphere in the industrial blast furnace, Int. J. Miner. Metall. Mater., 26(2019), No. 10, p. 1247. DOI: 10.1007/s12613-019-1846-1
|
| [11] |
X.F. Zhu, T.A. Zhang, and G.Z. Lü, Kinetics of carbonated decomposition of hydrogarnet with different silica saturation coefficients, Int. J. Miner. Metall. Mater., 27(2020), No. 4, p. 472. DOI: 10.1007/s12613-019-1913-7
|
| [12] |
C.S. Wang, X.H. Wang, Y.Q. Lei, C.P. Chen, and Q.D. Wang, The hydriding kinetics of MlNi5—I. Development of the model, Int. J. Hydrogen Energy, 21(1996), No. 6, p. 471. DOI: 10.1016/0360-3199(95)00109-3
|
| [13] |
T.Z. Si, X.Y. Zhang, J.J. Feng, X.L. Ding, and Y.T. Li, Enhancing hydrogen sorption in MgH2 by controlling particle size and contact of Ni catalysts, Rare Met., 40(2021), No. 4, p. 995. DOI: 10.1007/s12598-018-1087-x
|
| [14] |
Y.P. Pang and Q. Li, A review on kinetic models and corresponding analysis methods for hydrogen storage materials, Int. J. Hydrogen Energy, 41(2016), No. 40, p. 18072. DOI: 10.1016/j.ijhydene.2016.08.018
|
| [15] |
G. Chen, Y. Zhang, J. Chen, X.L. Guo, Y.F. Zhu, and L.Q. Li, Enhancing hydrogen storage performances of MgH2 by Ni nano-particles over mesoporous carbon CMK-3, Nanotechnol., 29(2018), No. 26, art. No. 265705. DOI: 10.1088/1361-6528/aabcf3
|
| [16] |
L.E.R. Vega, D.R. Leiva, R.M. Leal Neto, W.B. Silva, R.A. Silva, T.T. Ishikawa, C.S. Kiminami, and W.J. Botta, Improved ball milling method for the synthesis of nanocrystalline TiFe compound ready to absorb hydrogen, Int. J. Hydrogen Energy, 45(2020), No. 3, p. 2084. DOI: 10.1016/j.ijhydene.2019.11.035
|
| [17] |
H.Q. Kou, H. He, W.H. Luo, T. Tang, Z.Y. Huang, H. Wang, J.C. Bao, Y. Xue, S.H. Pei, and W.D. Liu, Effects of ball milling on hydrogen sorption properties and microstructure of ZrCo alloy, Fusion Eng. Des., 138(2019), p. 68. DOI: 10.1016/j.fusengdes.2018.11.006
|
| [18] |
W. Jander, Reaktionen im festen Zustande Bei höheren Temperaturen. Reaktionsgeschwindigkeiten endotherm verlaufender Umsetzungen, Z. Anorg. Allg. Chem., 163(1927), No. 1, p. 1. DOI: 10.1002/zaac.19271630102
|
| [19] |
Z.J. Cao, L.Z. Ouyang, H. Wang, J.W. Liu, L.X. Sun, M. Felderhoff, and M. Zhu, Development of ZrFeV alloys for hybrid hydrogen storage system, Int. J. Hydrogen Energy, 41(2016), No. 26, p. 11242. DOI: 10.1016/j.ijhydene.2016.04.083
|
| [20] |
K.C. Chou, Q. Li, Q. Lin, L.J. Jiang, and K.D. Xu, Kinetics of absorption and desorption of hydrogen in alloy powder, Int. J. Hydrogen Energy, 30(2005), No. 3, p. 301. DOI: 10.1016/j.ijhydene.2004.04.006
|
| [21] |
Q. Li, K.C. Chou, Q. Lin, L.J. Jiang, and F. Zhan, Influence of the initial hydrogen pressure on the hydriding kinetics of the Mg2−xAlxNi (x = 0, 0.1) alloys, Int. J. Hydrogen Energy, 29(2004), No. 13, p. 1383. DOI: 10.1016/j.ijhydene.2004.01.007
|
| [22] |
Q. Luo, X.H. An, Y.B. Pan, X. Zhang, J.Y. Zhang, and Q. Li, The hydriding kinetics of Mg-Ni based hydrogen storage alloys: A comparative study on Chou model and Jander model, Int. J. Hydrogen Energy, 35(2010), No. 15, p. 7842. DOI: 10.1016/j.ijhydene.2010.05.073
|
| [23] |
X.Y. Cui, Q. Li, K.C. Chou, S.L. Chen, G.W. Lin, and K.D. Xu, A comparative study on the hydriding kinetics of Zr-based AB2 hydrogen storage alloys, Intermetallics, 16(2008), No. 5, p. 662. DOI: 10.1016/j.intermet.2008.02.009
|
| [24] |
X.H. An, Y.B. Pan, Q. Luo, X. Zhang, J.Y. Zhang, and Q. Li, Application of a new kinetic model for the hydriding kinetics of LaNi5−xAlx (0 ≤ x ≤ 1.0) alloys, J. Alloys Compd., 506(2010), No. 1, p. 63. DOI: 10.1016/j.jallcom.2010.07.016
|
| [25] |
Y.B. Pan, Y.F. Wu, and Q. Li, Modeling and analyzing the hydriding kinetics of Mg–LaNi5 composites by Chou model, Int. J. Hydrogen Energy, 36(2011), No. 20, p. 12892. DOI: 10.1016/j.ijhydene.2011.06.145
|
| [26] |
Q. Li, L.J. Jiang, K.C. Chou, Q. Lin, F. Zhan, K.D. Xu, X.G. Lu, and J.Y. Zhang, Effect of hydrogen pressure on hydriding kinetics in the Mg2−xAgxNi-H (x = 0.05, 0.1) system, J. Alloys Compd., 399(2005), No. 1-2, p. 101. DOI: 10.1016/j.jallcom.2005.03.010
|
| [27] |
Q. Luo, J.D. Li, B. Li, B. Liu, H.Y. Shao, and Q. Li, Kinetics in Mg-based hydrogen storage materials: Enhancement and mechanism, J. Magnesium Alloys, 7(2019), No. 1, p. 58. DOI: 10.1016/j.jma.2018.12.001
|
| [28] |
Y.P. Pang, D.K. Sun, Q.F. Gu, K.C. Chou, X.L. Wang, and Q. Li, Comprehensive determination of kinetic parameters in solid-state phase transitions: An extended jonhson–mehl–avrami–kolomogorov model with analytical solutions, Cryst. Growth Des., 16(2016), No. 4, p. 2404. DOI: 10.1021/acs.cgd.6b00187
|
| [29] |
Q. Luo, Q.F. Gu, B. Liu, T.F. Zhang, W.Q. Liu, and Q. Li, Achieving superior cycling stability by in situ forming NdH2–Mg–Mg2Ni nanocomposites, J. Mater. Chem. A, 6(2018), No. 46, p. 23308. DOI: 10.1039/C8TA06668J
|
| [30] |
Y.H. Zhang, W. Zhang, J.L. Gao, X. Wei, T.T. Zhai, and Y. Cai, Improved hydrogen storage kinetics of Mg-based alloys by substituting La with Sm, Int. J. Hydrogen Energy, 45(2020), No. 41, p. 21588. DOI: 10.1016/j.ijhydene.2020.05.144
|
| [31] |
X.L. Yang, Q.H. Hou, L.B. Yu, and J.Q. Zhang, Improvement of the hydrogen storage characteristics of MgH2 with a flake Ni nano-catalyst composite, Dalton Trans., 50(2021), No. 5, p. 1797. DOI: 10.1039/D0DT03627G
|
| [32] |
Y.H. Zhang, X. Wei, W. Zhang, Z.M. Yuan, J.L. Gao, Y. Qi, and H.P. Ren, Effect of milling duration on hydrogen storage thermodynamics and kinetics of Mg-based alloy, Int. J. Hydrogen Energy, 45(2020), No. 58, p. 33832. DOI: 10.1016/j.ijhydene.2020.09.144
|
| [33] |
K.C. Chou and K.D. Xu, A new model for hydriding and dehydriding reactions in intermetallics, Intermetallics, 15(2007), No. 5-6, p. 767. DOI: 10.1016/j.intermet.2006.10.004
|
| [34] |
A. Khawam and D.R. Flanagan, Solid-state kinetic models: Basics and mathematical fundamentals, J. Phys. Chem. B, 110(2006), No. 35, p. 17315. DOI: 10.1021/jp062746a
|
| [35] |
J. Bloch and M.H. Mintz, Kinetics and mechanisms of metal hydrides formation—A review, J. Alloys Compd., 253-254(1997), p. 529. DOI: 10.1016/S0925-8388(96)03070-8
|
| [36] |
J.F. Song, J. She, D.L. Chen, and F.S. Pan, Latest research advances on magnesium and magnesium alloys worldwide, J. Magnesium Alloys, 8(2020), No. 1, p. 1. DOI: 10.1016/j.jma.2020.02.003
|
| [37] |
W. Jiang, H. Wang, and M. Zhu, AlH3 as a hydrogen storage material: Recent advances, prospects and challenges, Rare Met., 40(2021), No. 12, p. 3337. DOI: 10.1007/s12598-021-01769-2
|
| [38] |
P.S. Rudman, Hydriding and dehydriding kinetics, J. Less Common Met., 89(1983), No. 1, p. 93. DOI: 10.1016/0022-5088(83)90253-9
|
| [39] |
D.P. Broom, Hydrogen Storage Materials: The Characterisation of Their Storage Properties, Springer, London, 2011.
|
| [40] |
C. Aharoni and F.C. Tompkins, Kinetics of adsorption and desorption and the elovich equation, Adv. Catal., 21(1970), p. 1.
|
| [41] |
A. Ginstling and B. Brounshtein, Concerning the diffusion kinetics of reactions in spherical particles, J. Appl. Chem. USSR, 23(1950), p. 1327.
|
| [42] |
R.E. Carter, Kinetic model for solid-state reactions, J. Chem. Phys., 34(1961), No. 6, p. 2010. DOI: 10.1063/1.1731812
|
| [43] |
F. Booth, A note on the theory of surface diffusion reactions, Trans. Faraday Soc., 44(1948), art. No. 796. DOI: 10.1039/tf9484400796
|
| [44] |
K.C. Chou, Q. Luo, Q. Li, and J.Y. Zhang, Influence of the density of oxide on oxidation kinetics, Intermetallics, 47(2014), p. 17. DOI: 10.1016/j.intermet.2013.11.024
|
| [45] |
J. Crank, The Mathematics of Diffusion, 2nd ed., Oxford university press, London, 1979.
|
| [46] |
A.T.W. Kempen, F. Sommer, and E.J. Mittemeijer, Determination and interpretation of isothermal and non-isothermal transformation kinetics; the effective activation energies in terms of nucleation and growth, J. Mater. Sci., 37(2002), No. 7, p. 1321. DOI: 10.1023/A:1014556109351
|
| [47] |
J.W. Christian, Eutectoidal transformations, [in] The Theory of Transformations in Metals and Alloys, Amsterdam, Elsevier, 2002, p. 797.
|
| [48] |
J.T. Carstensen, Stability of solids and solid dosage forms, J. Pharm. Sci., 63(1974), No. 1, p. 1. DOI: 10.1002/jps.2600630103
|
| [49] |
X. Lin, W. Xie, Q. Zhu, H.G. Yang, and Q. Li, Rational optimization of metal hydride tank with LaNi4.25Al0.75 as hydrogen storage medium, Chem. Eng. J., 421(2021), art. No. 127844. DOI: 10.1016/j.cej.2020.127844
|
| [50] |
X.H. Wang, C.S. Wang, C.P. Chen, Y.Q. Lei and Q.D. Wang, The hydriding kinetics of MlNi5—II. Experimental results, Int. J. Hydrogen Energy, 21(1996), No. 6, p. 479. DOI: 10.1016/0360-3199(95)00111-5
|
| [51] |
X. Lin, D.K. Sun, S.L. Chen, Q. Zhu, H.Y. Leng, and Q. Li, Numerical analysis on pulverization and self-densification for hydrogen storage performance of a metal hydride tank, Appl. Therm. Eng., 161(2019), art. No. 114129. DOI: 10.1016/j.applthermaleng.2019.114129
|
| [52] |
X. Lin, Q. Zhu, H.Y. Leng, H.G. Yang, T. Lyu, and Q. Li, Numerical analysis of the effects of particle radius and porosity on hydrogen absorption performances in metal hydride tank, Appl. Energy, 250(2019), p. 1065. DOI: 10.1016/j.apenergy.2019.04.181
|
| [53] |
J. Nam, J. Ko, and H. Ju, Three-dimensional modeling and simulation of hydrogen absorption in metal hydride hydrogen storage vessels, Appl. Energy, 89(2012), No. 1, p. 164. DOI: 10.1016/j.apenergy.2011.06.015
|
| [54] |
D. Wang, Y.Q. Wang, Z.N. Huang, F.S. Yang, Z. Wu, L. Zheng, L. Wu, and Z.X. Zhang, Design optimization and sensitivity analysis of the radiation mini-channel metal hydride reactor, Energy, 173(2019), p. 443. DOI: 10.1016/j.energy.2019.02.033
|
| [55] |
T. Yang, P. Wang, C.Q. Xia, Q. Li, C.Y. Liang, and Y.H. Zhang, Characterization of microstructure, hydrogen storage kinetics and thermodynamics of a melt-spun Mg86Y10Ni4 alloy, Int. J. Hydrogen Energy, 44(2019), No. 13, p. 6728. DOI: 10.1016/j.ijhydene.2019.01.148
|
| [56] |
Y.H. Zhang, X.F. Li, Y. Cai, Y. Qi, S.H. Guo, and D.L. Zhao, Improved hydrogen storage performances of Mg−Y−Ni−Cu alloys by melt spinning, Renew. Energy, 138(2019), p. 263. DOI: 10.1016/j.renene.2019.01.106
|
| [57] |
K.S. Nahm, W.Y. Kim, S.P. Hong, and W.Y. Lee, The reaction kinetics of hydrogen storage in LaNi5, Int. J. Hydrogen Energy, 17(1992), No. 5, p. 333. DOI: 10.1016/0360-3199(92)90169-W
|
| [58] |
J.W. Oh, C.Y. Kim, K.S. Nahm, and K.S. Sim, The hydriding kinetics of LaNi4.5Al0.5 with hydrogen, J. Alloys Compd., 278(1998), No. 1-2, p. 270. DOI: 10.1016/S0925-8388(98)00565-9
|
| [59] |
M.N. Mungole and R. Balasubramaniam, Hydrogen desorption kinetics in MmNi4.2Al0.8−H system, Int. J. Hydrogen Energy, 23(1998), No. 5, p. 349. DOI: 10.1016/S0360-3199(97)00050-5
|
| [60] |
Q. Li, Q. Lin, K.C. Chou, L.J. Jiang, and F. Zhan, Hydriding kinetics of the La1.5Ni0.5Mg17−H system prepared by hydriding combustion synthesis, Intermetallics, 12(2004), No. 12, p. 1293. DOI: 10.1016/j.intermet.2004.03.024
|
| [61] |
R.A. Jat, S.C. Parida, J. Nuwad, R. Agarwal, and S.G. Kulkarni, Hydrogen sorption−desorption studies on ZrCo−hydrogen system, J. Therm. Anal. Calorim., 112(2013), No. 1, p. 37. DOI: 10.1007/s10973-012-2783-7
|
| [62] |
L. Jai-Young, C.N. Park, and S.M. Pyun, The activation processes and hydriding kinetics of FeTi, J. Less Common Met., 89(1983), No. 1, p. 163. DOI: 10.1016/0022-5088(83)90262-X
|
| [63] |
E. Bershadsky, A. Klyuch, and M. Ron, Hydrogen absorption and desorption kinetics of TiFe0.8Ni0.2H, Int. J. Hydrogen Energy, 20(1995), No. 1, p. 29. DOI: 10.1016/0360-3199(93)E0011-9
|
| [64] |
R. Ramesh, Y.V.G.S. Murti, K.V. Reddy, K.V.S. Rama Rao, and T.P. Das, The kinetics of hydrogen absorption in Zr1−xHoxCo2 (x = 0.4, 0.6 and 0.8) alloys, J. Alloys Compd., 205(1994), No. 1-2, p. 211. DOI: 10.1016/0925-8388(94)90791-9
|
| [65] |
X.C. Kong, J.L. Du, K. Wang, Z.L. Li, and Z. Wu, Kinetics of hydrogen absorption for Ti33V20Cr47 alloy powder, Rare Met. Mater. Eng., 41(2012), No. 11, p. 1899. DOI: 10.1016/S1875-5372(13)60018-1
|
| [66] |
Q. Li, K.C. Chou, Q. Lin, L.J. Jiang, and F. Zhan, Hydrogen absorption and desorption kinetics of Ag−Mg−Ni alloys, Int. J. Hydrogen Energy, 29(2004), No. 8, p. 843. DOI: 10.1016/j.ijhydene.2003.10.002
|
| [67] |
G. Liang, J. Huot, S. Boily, A. Van Neste, and R. Schulz, Hydrogen storage properties of the mechanically milled MgH2−V nanocomposite, J. Alloys Compd., 291(1999), No. 1-2, p. 295. DOI: 10.1016/S0925-8388(99)00268-6
|
| [68] |
G. Liang, J. Huot, S. Boily, and R. Schulz, Hydrogen desorption kinetics of a mechanically milled MgH2+5at.%V nanocomposite, J. Alloys Compd., 305(2000), No. 1-2, p. 239. DOI: 10.1016/S0925-8388(00)00708-8
|
| [69] |
E. Akiba, K. Nomura, S. Ono, and S. Suda, Kinetics of the reaction between Mg–Ni alloys and H2, Int. J. Hydrogen Energy, 7(1982), No. 10, p. 787. DOI: 10.1016/0360-3199(82)90069-6
|
| [70] |
R.D. Penzhorn, M. Sirch, A.N. Perevezentsev, and A.N. Borisenko, Hydrogen sorption rate by intermetallic compounds suitable for tritium storage, Fusion Technol., 28(1995), No. 3P2, p. 1399. DOI: 10.13182/FST95-A30607
|
| [71] |
E. Bershadsky, Y. Josephy, and M. Ron, Investigation of kinetics and structural changes in TiFe0.8 Ni0.2 after prolonged cycling, J. Less Common Met., 172-174(1991), p. 1036. DOI: 10.1016/S0022-5088(06)80009-3
|
| [72] |
Y.F. Liu, K. Zhong, K. Luo, M.X. Gao, H.G. Pan, and Q.D. Wang, Size-dependent kinetic enhancement in hydrogen absorption and desorption of the Li–Mg–N–H system, J. Am. Chem. Soc., 131(2009), No. 5, p. 1862. DOI: 10.1021/ja806565t
|
| [73] |
K. Zhong, Y.F. Liu, M.X. Gao, J.H. Wang, H. Miao, and H.G. Pan, Electrochemical kinetic performance of V−Ti−based hydrogen storage alloy electrode with different particle sizes, Int. J. Hydrogen Energy, 33(2008), No. 1, p. 149. DOI: 10.1016/j.ijhydene.2007.09.006
|
| [74] |
S. Shriniwasan, H.Y. Tien, M. Tanniru, and S.S.V. Tatiparti, On the parameters of Johnson-Mehl-Avrami-Kolmogorov equation for the hydride growth mechanisms: A case of MgH2, J. Alloys Compd., 742(2018), p. 1002. DOI: 10.1016/j.jallcom.2017.12.283
|
| [75] |
M. Miyamoto, K. Yamaji, and Y. Nakata, Reaction kinetics of LaNi5, J. Less Common Met., 89(1983), No. 1, p. 111. DOI: 10.1016/0022-5088(83)90254-0
|
| [76] |
O. Boser, Hydrogen sorption in LaNi5, J. Less Common Met., 46(1976), No. 1, p. 91. DOI: 10.1016/0022-5088(76)90182-X
|
| [77] |
P.D. Goodell and P.S. Rudman, Hydriding and dehydriding rates of the LaNi5−H system, J. Less Common Met., 89(1983), No. 1, p. 117. DOI: 10.1016/0022-5088(83)90255-2
|
| [78] |
J.T. Koh, A.J. Goudy, P. Huang, and G. Zhou, A comparison of the hydriding and dehydriding kinetics of LaNI5 hydride, J. Less Common Met., 153(1989), No. 1, p. 89. DOI: 10.1016/0022-5088(89)90536-5
|
| [79] |
A. Zarynow, A.J. Goudy, R.G. Schweibenz, and K.R. Clay, The effect of the partial replacement of nickelin LaNi5 hydride with iron, cobalt, and copper on absorption and desorption kinetics, J. Less Common Met., 172-174(1991), p. 1009. DOI: 10.1016/S0022-5088(06)80006-8
|
| [80] |
P. Muthukumar, A. Satheesh, M. Linder, R. Mertz, and M. Groll, Studies on hydriding kinetics of some La-based metal hydride alloys, Int. J. Hydrogen Energy, 34(2009), No. 17, p. 7253. DOI: 10.1016/j.ijhydene.2009.06.075
|
| [81] |
S. Shriniwasan, H. Goswami, H.Y. Tien, M. Tanniru, F. Ebrahimi, and S.S.V. Tatiparti, Contributions of multiple phenomena towards hydrogenation: A case of Mg, J. Alloys Compd., 40(2015), No. 39, p. 13518. DOI: 10.1016/j.ijhydene.2015.08.018
|
| [82] |
G.L. Liu, D.M. Chen, Y.M. Wang, and K. Yang, Experimental and computational investigations of LaNi5−xAlx (x = 0, 0.25, 0.5, 0.75 and 1.0) tritium-storage alloys, J. Mater. Sci. Technol., 34(2018), No. 9, p. 1699. DOI: 10.1016/j.jmst.2018.01.007
|
| [83] |
X.L. Wang and S. Suda, Effects of Al-substitution on hydriding reaction rates of LaNi5−xAlx, J. Alloys Compd., 191(1993), No. 1, p. 5. DOI: 10.1016/0925-8388(93)90262-L
|
| [84] |
J.M. Joubert, V. Paul-Boncour, F. Cuevas, J.X. Zhang, and M. Latroche, LaNi5 related AB5 compounds: Structure, properties and applications, J. Alloys Compd., 862(2021), art. No. 158163. DOI: 10.1016/j.jallcom.2020.158163
|
| [85] |
R. Balasubramaniam, M.N. Mungole, and K.N. Rai, Hydriding properties of MmNi5 system with aluminium, manganese and tin substitutions, J. Alloys Compd., 196(1993), No. 1-2, p. 63. DOI: 10.1016/0925-8388(93)90571-4
|
| [86] |
M. Jurczyk, W. Rajewski, W. Majchrzycki, and G. Wójcik, Mechanically alloyed MmNi5-type materials for metal hydride electrodes, J. Alloys Compd., 290(1999), No. 1-2, p. 262. DOI: 10.1016/S0925-8388(99)00202-9
|
| [87] |
M. Kandavel, V.V. Bhat, A. Rougier, L. Aymard, G.A. Nazri, and J.M. Tarascon, Improvement of hydrogen storage properties of the AB2 Laves phase alloys for automotive application, Int. J. Hydrogen Energy, 33(2008), No. 14, p. 3754. DOI: 10.1016/j.ijhydene.2008.04.042
|
| [88] |
F.C. Ruiz, E.B. Castro, H.A. Peretti, and A. Visintin, Study of the different ZrxNiy phases of Zr-based AB2 materials, Int. J. Hydrogen Energy, 35(2010), No. 18, p. 9879. DOI: 10.1016/j.ijhydene.2009.10.004
|
| [89] |
C.B. Wan, X.P. Jiang, X.H. Yin, and X. Ju, High-capacity Zr-based AB2-type alloys as metal hydride battery anodes, J. Alloys Compd., 828(2020), art. No. 154402. DOI: 10.1016/j.jallcom.2020.154402
|
| [90] |
Y.H. Xu, C.P. Chen, X.L. Wang, Y.Q. Lei, and Q.D. Wang, The cycle life and surface properties of Ti-based AB2 metal hydride electrodes, J. Alloys Compd., 337(2002), No. 1-2, p. 214. DOI: 10.1016/S0925-8388(01)01917-X
|
| [91] |
U. Ulmer, M. Dieterich, A. Pohl, R. Dittmeyer, M. Linder, and M. Fichtner, Study of the structural, thermodynamic and cyclic effects of vanadium and titanium substitution in laves-phase AB2 hydrogen storage alloys, Int. J. Hydrogen Energy, 42(2017), No. 31, p. 20103. DOI: 10.1016/j.ijhydene.2017.06.137
|
| [92] |
J.G. Li, Y.R. Guo, X.J. Jiang, S. Li, and X.G. Li, Hydrogen storage performances, kinetics and microstructure of Ti1.02Cr1.0Fe0.7−xMn0.3Alx alloy by Al substituting for Fe, Renew. Energy, 153(2020), p. 1140. DOI: 10.1016/j.renene.2020.02.035
|
| [93] |
T.R. Kesavan, S. Ramaprabhu, K.V.S. Rama Rao, and T.P. Das, Hydrogen absorption and kinetic studies in Zr0.2Ho0.8Fe2, J. Alloys Compd., 244(1996), No. 1-2, p. 164. DOI: 10.1016/S0925-8388(96)02413-9
|
| [94] |
F. Wang, R.F. Li, C.P. Ding, J. Wan, R.H. Yu, and Z.M. Wang, Effect of catalytic Ni coating with different depositing time on the hydrogen storage properties of ZrCo alloy, Int. J. Hydrogen Energy, 41(2016), No. 39, p. 17421. DOI: 10.1016/j.ijhydene.2016.07.077
|
| [95] |
L.L. Luo, X.Q. Ye, G.H. Zhang, H.Q. Kou, R.J. Xiong, G. Sang, R.H. Yu, and D.L. Zhao, Enhancement of hydrogenation kinetics and thermodynamic properties of ZrCo1–x Cr x (x = 0–0.1) alloys for hydrogen storage, Chin. Phys. B, 29(2020), No. 8, art. No. 088801. DOI: 10.1088/1674-1056/ab9289
|
| [96] |
J. Zhang, S. Yan, G.L. Xia, X.J. Zhou, X.Z. Lu, L.P. Yu, X.B. Yu, and P. Peng, Stabilization of low-valence transition metal towards advanced catalytic effects on the hydrogen storage performance of magnesium hydride, J. Magnesium Alloys, 9(2021), No. 2, p. 647. DOI: 10.1016/j.jma.2020.02.029
|
| [97] |
P.Y. Yao, Y. Jiang, Y. Liu, C.Z. Wu, K.C. Chou, T. Lyu, and Q. Li, Catalytic effect of Ni@rGO on the hydrogen storage properties of MgH2, J. Magnesium Alloys, 8(2020), No. 2, p. 461. DOI: 10.1016/j.jma.2019.06.006
|
| [98] |
L.Z. Ouyang, F. Liu, H. Wang, J.W. Liu, X.S. Yang, L.X. Sun, and M. Zhu, Magnesium-based hydrogen storage compounds: A review, J. Alloys Compd., 832(2020), art. No. 154865. DOI: 10.1016/j.jallcom.2020.154865
|
| [99] |
M. Ismail, M.S. Yahya, N.A. Sazelee, N.A. Ali, F.A.H. Yap, and N.S. Mustafa, The effect of K2SiF6 on the MgH2 hydrogen storage properties, J. Magnesium Alloys, 8(2020), No. 3, p. 832. DOI: 10.1016/j.jma.2020.04.002
|
| [100] |
P. Meena, R. Singh, V.K. Sharma, and I.P. Jain, Role of NiMn9.3Al4.0Co14.1Fe3.6 alloy on dehydrogenation kinetics of MgH2, J. Magnesium Alloys, 6(2018), No. 3, p. 318. DOI: 10.1016/j.jma.2018.05.007
|
| [101] |
Q. Luo, Q.F. Gu, J.Y. Zhang, S.L. Chen, K.C. Chou, and Q. Li, Phase equilibria, crystal structure and hydriding/dehydriding mechanism of Nd4Mg80Ni8 compound, Sci. Rep., 5(2015), art. No. 15385. DOI: 10.1038/srep15385
|
| [102] |
Y.S. Lu, M. Zhu, H. Wang, Z.M. Li, L.Z. Ouyang, and J.W. Liu, Reversible de-/hydriding characteristics of a novel Mg18In1Ni3 alloy, Int. J. Hydrogen Energy, 39(2014), No. 26, p. 14033. DOI: 10.1016/j.ijhydene.2014.07.016
|
| [103] |
Q. Li, K.C. Chou, K.D. Xu, Q. Lin, L.J. Jiang, and F. Zhan, Determination and interpretation of the hydriding and dehydriding kinetics in mechanically alloyed LaNiMg17 composite, J. Alloys Compd., 387(2005), No. 1-2, p. 86. DOI: 10.1016/j.jallcom.2004.06.034
|
| [104] |
S. Long, J.X. Zou, X. Chen, X.Q. Zeng, and W.J. Ding, A comparison study of Mg−Y2O3 and Mg−Y hydrogen storage composite powders prepared through arc plasma method, J. Alloys Compd., 615(2014), p. S684. DOI: 10.1016/j.jallcom.2013.11.159
|
| [105] |
L.Z. Ouyang, X.S. Yang, M. Zhu, J.W. Liu, H.W. Dong, D.L. Sun, J. Zou, and X.D. Yao, Enhanced hydrogen storage kinetics and stability by synergistic effects of in situ formed CeH2.73 and Ni in CeH2.73−MgH2−Ni nanocomposites, J. Phys. Chem. C, 118(2014), No. 15, p. 7808. DOI: 10.1021/jp500439n
|
| [106] |
Y. Sun, D.B. Wang, J.M. Wang, B.Z. Liu, and Q.M. Peng, Hydrogen storage properties of ultrahigh pressure Mg12NiY alloys with a superfine LPSO structure, Int. J. Hydrogen Energy, 44(2019), No. 41, p. 23179. DOI: 10.1016/j.ijhydene.2019.06.191
|
| [107] |
L.Z. Ouyang, Z.J. Cao, H. Wang, J.W. Liu, D.L. Sun, Q.A. Zhang, and M. Zhu, Dual-tuning effect of In on the thermodynamic and kinetic properties of Mg2Ni dehydrogenation, Int. J. Hydrogen Energy, 38(2013), No. 21, p. 8881. DOI: 10.1016/j.ijhydene.2013.05.027
|
| [108] |
T. Liu, C.G. Chen, F. Wang, and X.G. Li, Enhanced hydrogen storage properties of magnesium by the synergic catalytic effect of TiH1.971 and TiH1.5 nanoparticles at room temperature, J. Power Sources, 267(2014), p. 69. DOI: 10.1016/j.jpowsour.2014.05.066
|
| [109] |
C.M. Stander, Kinetics of formation of magnesium hydride from magnesium and hydrogen, Z. Phys. Chem., 104(1977), No. 4-6, p. 229. DOI: 10.1524/zpch.1977.104.4-6.229
|
| [110] |
M.H. Mintz, Z. Gavra, and Z. Hadari, Kinetic study of the reaction between hydrogen and magnesium, catalyzed by addition of indium, J. Inorg. Nucl. Chem., 40(1978), No. 5, p. 765. DOI: 10.1016/0022-1902(78)80147-X
|
| [111] |
S. Shriniwasan, H.Y. Tien, M. Tanniru, F. Ebrahimi, and S.S.V. Tatiparti, Transition from interfacial to diffusional growth during hydrogenation of Mg, Mater. Lett., 161(2015), p. 271. DOI: 10.1016/j.matlet.2015.08.116
|
| [112] |
P. Trivedi and K.C. Nune, Bioactivity, cytocompatibility and effect of cells on degradation behavior of Mg–2Zn–2Gd alloy, Nanomater. Energy, 8(2019), No. 2, p. 117. DOI: 10.1680/jnaen.18.00019
|
| [113] |
T.C. Xie, H. Shi, H.B. Wang, Q. Luo, Q. Li, and K.C. Chou, Thermodynamic prediction of thermal diffusivity and thermal conductivity in Mg–Zn–La/Ce system, J. Mater. Sci. Technol., 97(2022), p. 147. DOI: 10.1016/j.jmst.2021.04.044
|
| [114] |
Y. Li, Q.F. Gu, Q. Li, and T.F. Zhang, In-situ synchrotron X-ray diffraction investigation on hydrogen-induced decomposition of long period stacking ordered structure in Mg-Ni-Y system, Scripta Mater., 127(2017), p. 102. DOI: 10.1016/j.scriptamat.2016.09.011
|
| [115] |
G. Liang, Synthesis and hydrogen storage properties of Mg-based alloys, J. Alloys Compd., 370(2004), No. 1-2, p. 123. DOI: 10.1016/j.jallcom.2003.09.031
|
| [116] |
H. Yong, S.H. Guo, Z.M. Yuan, Y. Qi, D.L. Zhao, and Y.H. Zhang, Improved hydrogen storage kinetics and thermodynamics of RE−Mg-based alloy by co-doping Ce−Y, Int. J. Hydrogen Energy, 44(2019), No. 31, p. 16765. DOI: 10.1016/j.ijhydene.2019.04.281
|
| [117] |
K.B. Wu, Q. Luo, S.L. Chen, Q.F. Gu, K.C. Chou, X.L. Wang, and Q. Li, Phase equilibria of Ce−Mg−Ni ternary system at 673 K and hydrogen storage properties of selected alloy, Int. J. Hydrogen Energy, 41(2016), No. 3, p. 1725. DOI: 10.1016/j.ijhydene.2015.11.068
|
| [118] |
D. Khan, J.X. Zou, X.Q. Zeng, and W.J. Ding, Hydrogen storage properties of nanocrystalline Mg2Ni prepared from compressed 2MgH2−Ni powder, Int. J. Hydrogen Energy, 43(2018), No. 49, p. 22391. DOI: 10.1016/j.ijhydene.2018.10.055
|
| [119] |
M.H. Li, Y.F. Zhu, C. Yang, J.G. Zhang, W. Chen, and L.Q. Li, Enhanced electrochemical hydrogen storage properties of Mg2NiH4 by coating with nano-nickel, Int. J. Hydrogen Energy, 40(2015), No. 40, p. 13949.
|
| [120] |
T. Kohno, S. Tsuruta, and M. Kanda, The hydrogen storage properties of new Mg2Ni alloy, J. Electrochem. Soc., 143(1996), No. 9, p. L198. DOI: 10.1149/1.1837085
|
| [121] |
J.S. Han and J.Y. Lee, A study of the hydriding kinetics of Mg2Ni, J. Less Common Met., 131(1987), No. 1-2, p. 109. DOI: 10.1016/0022-5088(87)90506-6
|
| [122] |
L.Q. Li, I. Saita, K. Saito, and T. Akiyama, Effect of synthesis temperature on the hydriding behaviors of Mg−Ni−Cu ternary hydrogen storage alloys synthesized by hydriding combustion synthesis, J. Alloys Compd., 372(2004), No. 1-2, p. 218. DOI: 10.1016/j.jallcom.2003.08.108
|
| [123] |
H.J. Lin, C. Zhang, H. Wang, L.Z. Ouyang, Y.F. Zhu, L.Q. Li, W.H. Wang, and M. Zhu, Controlling nanocrystallization and hydrogen storage property of Mg-based amorphous alloy via a gas-solid reaction, J. Alloys Compd., 685(2016), p. 272. DOI: 10.1016/j.jallcom.2016.05.286
|
| [124] |
J.J. Jiang, H.Y. Leng, J. Meng, K.C. Chou, and Q. Li, Hydrogen storage characterization of Mg17Ni1.5Ce0.5/5 wt.% Graphite synthesized by mechanical milling and subsequent microwave sintering, Int. J. Energy Res., 37(2013), No. 7, p. 726. DOI: 10.1002/er.2980
|
| [125] |
Z.Y. Lu, H.J. Yu, X. Lu, M.C. Song, F.Y. Wu, J.G. Zheng, Z.F. Yuan, and L.T. Zhang, Two-dimensional vanadium nanosheets as a remarkably effective catalyst for hydrogen storage in MgH2, Rare Met., 40(2021), No. 11, p. 3195. DOI: 10.1007/s12598-021-01764-7
|
| [126] |
Z.Q. Lan, L. Zeng, G. Jiong, X. Huang, H.Z. Liu, N. Hua, and J. Guo, Synthetical catalysis of nickel and graphene on enhanced hydrogen storage properties of magnesium, Int. J. Hydrogen Energy, 44(2019), No. 45, p. 24849. DOI: 10.1016/j.ijhydene.2019.07.247
|
| [127] |
G. Liang, J. Huot, S. Boily, A. Van Neste, and R. Schulz, Hydrogen storage in mechanically milled Mg−LaNi5 and MgH2−LaNi5 composites, J. Alloys Compd., 297(2000), No. 1-2, p. 261. DOI: 10.1016/S0925-8388(99)00592-7
|
| [128] |
M. Ismail, Y. Zhao, X.B. Yu, and S.X. Dou, Improved hydrogen storage performance of MgH2−NaAlH4 composite by addition of TiF3, Int. J. Hydrogen Energy, 37(2012), No. 10, p. 8395. DOI: 10.1016/j.ijhydene.2012.02.117
|
| [1] | Wan-liang Mi, Zhao-sen Liu, Toru Kimura, Atsunori Kamegawa, Hai-liang Wang. Crystal structure and hydrogen storage properties of (La,Ce)Ni5-xMx (M=Al, Fe, or Co) alloys [J]. International Journal of Minerals, Metallurgy and Materials, 2019, 26(1): 108-113. DOI: 10.1007/s12613-019-1714-z |
| [2] | Jian-zheng Song, Zi-yang Zhao, Xin Zhao, Rui-dong Fu, Shu-min Han. Hydrogen storage properties of MgH2 co-catalyzed by LaH3 and NbH [J]. International Journal of Minerals, Metallurgy and Materials, 2017, 24(10): 1183-1191. DOI: 10.1007/s12613-017-1509-z |
| [3] | Jin-fang Ma, Guang-wei Wang, Jian-liang Zhang, Xin-yu Li, Zheng-jian Liu, Ke-xin Jiao, Jian Guo. Reduction behavior and kinetics of vanadium-titanium sinters under high potential oxygen enriched pulverized coal injection [J]. International Journal of Minerals, Metallurgy and Materials, 2017, 24(5): 493-503. DOI: 10.1007/s12613-017-1430-5 |
| [4] | Hai-bin Zuo, Wei-wei Geng, Jian-liang Zhang, Guang-wei Wang. Comparison of kinetic models for isothermal CO2 gasification of coal char-biomass char blended char [J]. International Journal of Minerals, Metallurgy and Materials, 2015, 22(4): 363-370. DOI: 10.1007/s12613-015-1081-3 |
| [5] | Yuan Li, Yang Tao, Quan Huo. Effect of stoichiometry and Cu-substitution on the phase structure and hydrogen storage properties of Ml-Mg-Ni-based alloys [J]. International Journal of Minerals, Metallurgy and Materials, 2015, 22(1): 86-93. DOI: 10.1007/s12613-015-1047-5 |
| [6] | Xue-ping Ren, Fang-fang Zhang, Qing-miao Guo, Hong-liang Hou, Yao-qi Wang. Hydrogen absorption behavior of TA15 alloy [J]. International Journal of Minerals, Metallurgy and Materials, 2011, 18(2): 210-215. DOI: 10.1007/s12613-011-0424-y |
| [7] | Qian Li, Kuangdi Xu, Kuochih Chou, Xionggang Lu, Qin Lin. Kinetics of hydrogen absorption and desorption of a mechanically milled MgH2+5at%V nanocomposite [J]. International Journal of Minerals, Metallurgy and Materials, 2006, 13(4): 359-362. DOI: 10.1016/S1005-8850(06)60074-1 |
| [8] | Xuebin Yu, Zhu Wu, Baojia Xia, Taizhong Huang, Jinzhou Chen, Naixin Xu. Effect of VFe addition on hydrogen storage behavior of TiMn1.5-based alloys [J]. International Journal of Minerals, Metallurgy and Materials, 2004, 11(3): 263-267. |
| [9] | ZHAO Chuang, LIN Qin, CHEN Ning, YE Wen, MA Li. Development of Rare Earth Hydrogen Storage Alloys: Correlation Between Structure, Stability, and Hydrating Properties [J]. International Journal of Minerals, Metallurgy and Materials, 1997, 4(4): 28-33. |
| [10] | LIN Qin, CHEN Ning, YE Wen, LIU Renmin. Kinetics of Hydrogen Absorption in Hydrogen Storage Alloy [J]. International Journal of Minerals, Metallurgy and Materials, 1997, 4(2): 34-37. |
| 1. | Keer Li, Wei Chen, Jinyu Zhang, et al. Making titanium alloys ultrahigh strength and toughness synergy through deformation kinks-mediated hierarchical α-precipitation. Journal of Materials Science & Technology, 2025, 207: 142. DOI:10.1016/j.jmst.2024.04.035 |
| 2. | Xiao Liu, Dandan He, Biwu Zhu, et al. Periodical mixed grain and mechanical properties of as-cast AZ31 magnesium alloy corrugated slab after single-pass medium-strain rate rolling with subsequent annealing. Journal of Alloys and Compounds, 2025, 1014: 178741. DOI:10.1016/j.jallcom.2025.178741 |
| 3. | Hariprasath Ganesan, Godehard Sutmann. Modeling segregated solutes in plastically deformed alloys using coupled molecular dynamics-Monte Carlo simulations. Journal of Materials Science & Technology, 2025, 213: 98. DOI:10.1016/j.jmst.2024.06.030 |
| 4. | Jingli Li, Huicong Chen, Di Wu, et al. Strain rate-dependent tension-compression asymmetry in cast Mg-Gd-Y alloy: Insights into slip and twinning mechanisms. Journal of Materials Science & Technology, 2025, 219: 134. DOI:10.1016/j.jmst.2024.10.024 |
| 5. | M.Y. Wang, D.B. He, W.B. Bi, et al. Shock consolidation and spallation in nanopowdered Mg: Contributed by deformation twinning and disordering. Journal of Materials Science & Technology, 2025, 224: 105. DOI:10.1016/j.jmst.2024.10.041 |
| 6. | Qiang Lang, Hongyang Wang, Xiangyu Wang, et al. Mechanistic insights into the strengthening of Mg-alloy and steel lap joints using a flexible heat source. Journal of Materials Science & Technology, 2025, 227: 41. DOI:10.1016/j.jmst.2024.10.056 |
| 7. | Xinyi Wang, Hanna M. Breunig, Peng Peng. Broad range material-to-system screening of metal–organic frameworks for hydrogen storage using machine learning. Applied Energy, 2025, 383: 125346. DOI:10.1016/j.apenergy.2025.125346 |
| 8. | Huijun Han, Juyeol Baek, Cheolhwan Yoon, et al. In-situ quantitative measurement of phase-sensitive hydrogen diffusion in metals. Journal of Materials Science & Technology, 2025, 229: 279. DOI:10.1016/j.jmst.2024.12.050 |
| 9. | Yichen Su, Leevan Ling. Greedy trial subspace selection in meshfree time-stepping scheme with applications in coupled bulk-surface pattern formations. Mathematics and Computers in Simulation, 2025, 228: 498. DOI:10.1016/j.matcom.2024.09.018 |
| 10. | Ahmad Alobaid, Mohammed Kamil, Khalil Abdelrazek Khalil. Metal hydrides for solid hydrogen storage: Experimental insights, suitability evaluation, and innovative technical considerations for stationary and mobile applications. International Journal of Hydrogen Energy, 2025, 128: 432. DOI:10.1016/j.ijhydene.2025.04.232 |
| 11. | Zhu Jiaqi, Xu Jin, Li Ruihan, et al. Effect of rare earth hydrides on hydrogen absorption and desorption properties of CeMgNi hydrogen storage alloy. International Journal of Hydrogen Energy, 2025, 130: 17. DOI:10.1016/j.ijhydene.2025.04.287 |
| 12. | Bin Li, Xuhao Peng, Yan Yang, et al. Enhancement mechanism of low alloying (Mn, Al) and plastic deformation for hydrogen storage kinetics of Mg alloy. Separation and Purification Technology, 2025, 353: 128350. DOI:10.1016/j.seppur.2024.128350 |
| 13. | Wengang Bu, Aimin Ju, Liang Zhou, et al. Vanadium-enhanced Mg-Ni alloys: Advancing zero pollution and zero emission hydrogen storage for a circular economy. Journal of Environmental Management, 2025, 382: 125351. DOI:10.1016/j.jenvman.2025.125351 |
| 14. | E. Nemukula, C. B. Mtshali, F. Nemangwele, et al. Metal Hydrides for Sustainable Hydrogen Storage: A Review. International Journal of Energy Research, 2025, 2025(1) DOI:10.1155/er/6300225 |
| 15. | Dongsheng Zhou, Chunling Zheng, Yanghuan Zhang, et al. An overview of RE-Mg-based alloys for hydrogen storage: Structure, properties, progresses and perspectives. Journal of Magnesium and Alloys, 2025, 13(1): 41. DOI:10.1016/j.jma.2024.12.020 |
| 16. | Tingyan Wang, Lian Tang, Yitong Zhang, et al. Interaction between Hydrogen and Magnesium Films: From Hydrogenochromism to Applications. ACS Applied Materials & Interfaces, 2025, 17(6): 8794. DOI:10.1021/acsami.4c19590 |
| 17. | Xiaofei Chen, Bin Tang, Beibei Wei, et al. Interaction between dynamic recrystallization and phase transformation of Ti-43Al-4Nb-1Mo-0.2B alloy during hot deformation. Journal of Materials Science & Technology, 2025, 214: 130. DOI:10.1016/j.jmst.2024.05.084 |
| 18. | Hongxi Chen, Yanbin Du, Qiang Liang, et al. Effect of double aging treatment on the tribological properties of 15-5PH coating on 17-4PH stainless steel by laser cladding. Journal of Materials Research and Technology, 2025, 35: 4378. DOI:10.1016/j.jmrt.2025.02.104 |
| 19. | Haoyuan Zheng, Yuxiao Jia, Chen Jin, et al. Experimental and theoretical study on high hydrogen storage performance of Mg(NH2)2–2LiH composite system driven by nano CeO2 oxygen vacancies. Journal of Materials Science & Technology, 2025, 223: 173. DOI:10.1016/j.jmst.2024.09.050 |
| 20. | He Zhang, Zhihui Ma, Zhen Wang, et al. Tuning of Zr content in TiMn2 based multinary alloys by powder metallurgy to fabricate superior hydrogen storage properties. Journal of Colloid and Interface Science, 2025, 682: 1040. DOI:10.1016/j.jcis.2024.12.043 |
| 21. | Mohammed Faraj Saeid, B.A. Abdulkadir, S.Z. Abidin, et al. Nanoconfinement of magnesium hydride in porous scaffolds for hydrogen storage: Kinetics, thermodynamics, and future prospects. Materials Science in Semiconductor Processing, 2025, 188: 109225. DOI:10.1016/j.mssp.2024.109225 |
| 22. | Vladimir P. Zhdanov. Elementary Steps of Catalytic Reactions Occurring on Metallic Alloy Nanoparticles. ChemPhysChem, 2025, 26(1) DOI:10.1002/cphc.202400521 |
| 23. | Zijie Meng, Cunsheng Zhang, Yingzhi Li, et al. Low cycle fatigue behavior and cyclic deformation mechanism of 2195 Al-Li alloy at low temperatures. Journal of Materials Science & Technology, 2025, 235: 274. DOI:10.1016/j.jmst.2025.03.011 |
| 24. | Xue-Shan Niu, Ming Lv, Yan-Peng Feng, et al. Novel transformation mechanism among precipitates in Mg-Gd alloys. Acta Materialia, 2025, 286: 120746. DOI:10.1016/j.actamat.2025.120746 |
| 25. | Longfei Shao, Xi Lin, Xue Yang, et al. Magnesium-based hydrogen storage tanks: A review of research, development and simulation models. Renewable and Sustainable Energy Reviews, 2025, 211: 115332. DOI:10.1016/j.rser.2025.115332 |
| 26. | Fang Wang, Jing Jiang, Guangli Bi, et al. Effects of Al addition on microstructure, mechanical properties and thermal conductivity of an extruded Mg-Y-Zn-Co alloy. Materials Today Communications, 2025, 46: 112499. DOI:10.1016/j.mtcomm.2025.112499 |
| 27. | Yurui Wang, Peixuan Hao, Dongdong Wang, et al. Efficient elevated temperature hydrogen direct purification and separation technology. The Canadian Journal of Chemical Engineering, 2025. DOI:10.1002/cjce.25699 |
| 28. | Bofei Wang, Zhen Wu, Honghao Liu, et al. Low-energy and accelerated hydrogen release from MgH2–5 wt% NaTiO H catalyzed hydrogen storage reactor by graphite responsive microwave. Journal of Magnesium and Alloys, 2025. DOI:10.1016/j.jma.2025.03.002 |
| 29. | Wenfeng Qiao, Wanqiang Liu, Dongming Yin, et al. Comprehensive improvement of AB2 hydrogen storage alloy: Substitution of rare earth elements for different A-side alloys. Chemical Engineering Journal, 2024, 495: 153489. DOI:10.1016/j.cej.2024.153489 |
| 30. | Yunsheng Yang, Wei Sun, Qi Fang, et al. Effect of ball milling nanocrystallization on hydrogen storage performance of Mg95Ni2Pr3 hydrogen storage alloy. Materials Today Communications, 2024, 40: 109380. DOI:10.1016/j.mtcomm.2024.109380 |
| 31. | Hafiz Hamid Raza, Ghulam Murtaza, Zeesham Abbas, et al. The structural, mechanical, phonon and pressure induced thermodynamic properties of X4Mg4H12 (X = Rb and Cs) for hydrogen storage applications via PBE-GGA and TB-mBJ potentials. Materials Science and Engineering: B, 2024, 300: 117072. DOI:10.1016/j.mseb.2023.117072 |
| 32. | Zhuohan Zhang, Ying Cheng, Zhichao Yu, et al. Improving the Hydrogen Storage Property of Sm6.5Mg93.5-TiMn2 by Accelerating H2 Dissociation/Recombination and H Diffusion. ACS Sustainable Chemistry & Engineering, 2024, 12(49): 17702. DOI:10.1021/acssuschemeng.4c06311 |
| 33. | Han-Yang Kong, Qing-Feng Xie, Chao-Ling Wu, et al. Vanadium-based alloy for hydrogen storage: a review. Rare Metals, 2024, 43(12): 6201. DOI:10.1007/s12598-024-02839-x |
| 34. | Lu Yang, Xiaojiang Hou, Kaiming Hou, et al. Hydrolysis hydrogen generation behavior of Mg10Ni10Ce alloy catalytic modified by isomeric carbon materials. International Journal of Hydrogen Energy, 2024, 49: 1204. DOI:10.1016/j.ijhydene.2023.09.088 |
| 35. | M.A. Motalib Hossain, M.A. Hannan, Sieh Kiong Tiong, et al. Exploring nanoporous carbon architectures for enhanced solid-state hydrogen storage: Recent progress and future prospects. International Journal of Hydrogen Energy, 2024, 110: 271. DOI:10.1016/j.ijhydene.2025.02.262 |
| 36. | Bowen Zhang, Zhiqiang Zeng, Jincheng Li, et al. Microstructure and hydrogen storage properties of magnesium–gallium binary alloys. Journal of Physics and Chemistry of Solids, 2024, 190: 112028. DOI:10.1016/j.jpcs.2024.112028 |
| 37. | Hui Yun, Jing Bai, Xuesong Wang, et al. Hydrolytic H2 production behavior and mechanism of surface activated AZ91D alloy waste by borohydrides in neutral solution at room temperature. Journal of Alloys and Compounds, 2024, 980: 173612. DOI:10.1016/j.jallcom.2024.173612 |
| 38. | Dario Massa, Efthimios Kaxiras, Stefanos Papanikolaou. Alloy informatics through ab initio charge density profiles: Case study of hydrogen effects in face-centred cubic crystals. Acta Materialia, 2024, 268: 119773. DOI:10.1016/j.actamat.2024.119773 |
| 39. | Yingyan Zhao, Yunfeng Zhu, Rui Shi, et al. Magnesium nickel hydride monocrystalline nanoparticles for reversible hydrogen storage. Materials Reports: Energy, 2024, 4(1): 100246. DOI:10.1016/j.matre.2023.100246 |
| 40. | Zefeng Li, Yangfan Lu, Jingfeng Wang, et al. Improved hydrogen storage kinetics of MgH2 using TiFe0.92Mn0.04Co0.04 with in-situ generated α-Fe as catalyst. Materials Reports: Energy, 2024, 4(1): 100247. DOI:10.1016/j.matre.2023.100247 |
| 41. | Ankita Bishnoi, Pratibha Sharma. Effect of industrial grade raw materials and its associated impurities on first hydrogenation of BCC solid solution alloys. International Journal of Hydrogen Energy, 2024, 56: 471. DOI:10.1016/j.ijhydene.2023.12.134 |
| 42. | Songqin Xia, Wenping Yang, Yong Zhang. Prediction of the optimal hydrogen storage in high entropy alloys. Materials Chemistry and Physics, 2024, 328: 130010. DOI:10.1016/j.matchemphys.2024.130010 |
| 43. | Fuqiang Zhang, Xianfei Ding, Leming Xu, et al. Microstructure evolution and phase transformation of the mushy zone in a quenched β-solidifying TiAl alloy. Journal of Materials Science & Technology, 2024, 169: 28. DOI:10.1016/j.jmst.2023.05.070 |
| 44. | Hongyuan Wang, Jie Li, Xinlin Wei, et al. Thermodynamic and Kinetic Regulation for Mg‐Based Hydrogen Storage Materials: Challenges, Strategies, and Perspectives. Advanced Functional Materials, 2024, 34(42) DOI:10.1002/adfm.202406639 |
| 45. | Yu Wang, Siqi Wen, Jiaming Guo, et al. Sulfidized nanoiron-loaded carbon for efficient removal of Cr(VI) from wastewater. Materials Chemistry and Physics, 2024, 327: 129918. DOI:10.1016/j.matchemphys.2024.129918 |
| 46. | Yaofeng Luo, Yan Wang, Li Wang, et al. Effect of Al2O3 fiber on twin intersections-induced dynamic recrystallization in fine-grained TiAl matrix composite. Journal of Materials Science & Technology, 2024, 172: 1. DOI:10.1016/j.jmst.2023.07.013 |
| 47. | L.J. Huang, H. Wang, L.Z. Ouyang, et al. Decorating crystalline YFe2–Al on the Mg60La10Ni20Cu10 amorphous alloy as “hydrogen pump” to realize fast de/hydrogenation. Journal of Materials Science & Technology, 2024, 173: 72. DOI:10.1016/j.jmst.2023.07.022 |
| 48. | Xudong Zhang, Wei Fu, Xiaoguo Song, et al. Ultrasonic-assisted soldering W90 Tungsten heavy alloy to AZ31B Mg alloy using Sn-xAl alloy. Journal of Materials Science & Technology, 2024, 175: 132. DOI:10.1016/j.jmst.2023.07.048 |
| 49. | Chao Sun, Huan Liu, Ziyue Xu, et al. Refining 18R-LPSO phase into sub-micron range by pre-kinking design and its prominent strengthening effect on Mg97Y2Zn1 alloy. Journal of Materials Science & Technology, 2024, 176: 13. DOI:10.1016/j.jmst.2023.07.051 |
| 50. | Qiuju Zheng, Jing Wu, Tian Chen, et al. Microstructural evolution and corrosion behavior of Al-20Mg2Si composites with trace La addition. Journal of Materials Science & Technology, 2024, 175: 223. DOI:10.1016/j.jmst.2023.07.057 |
| 51. | Xiao Xing, Fengying Li, Jianguo Liu, et al. Molecular dynamics modeling of hydrogen-induced plastic deformation and cracking of ɑ-iron. Journal of Materials Science & Technology, 2024, 176: 119. DOI:10.1016/j.jmst.2023.07.058 |
| 52. | Wei Luo, Teng Xue, Ding Zuo, et al. Formation and strengthening mechanism of kink bands in an ultra-coarse-grained Fe-Cr-Al alloy. Journal of Materials Science & Technology, 2024, 186: 1. DOI:10.1016/j.jmst.2023.11.017 |
| 53. | Runze Wang, Hongyun Luo, Sujun Wu, et al. Anisotropic growth of nano‐precipitates governed by preferred orientation and residual stress in an Al‐Zn‐Mg‐Cu alloy. Journal of Materials Science & Technology, 2024, 188: 234. DOI:10.1016/j.jmst.2023.11.022 |
| 54. | Yong-Si Wei, Cheng Wang, Jiang You, et al. Substantial grain refinement of Al-Mn-Si alloys mediated by collaborative effect of Al-5Ti-1B refiner and sub-rapid solidification. Journal of Materials Science & Technology, 2024, 187: 230. DOI:10.1016/j.jmst.2023.11.025 |
| 55. | Yuliang Yang, Yuxin Liu, Shuang Jiang, et al. Achieving exceptional strength and ductility combination in a heterostructured Mg-Y alloy with densely refined twins. Journal of Materials Science & Technology, 2024, 189: 132. DOI:10.1016/j.jmst.2023.11.042 |
| 56. | S.X. Wang, S.F. Li, X.M. Gan, et al. Insights into the microstructural design of high-performance Ti alloys for laser powder bed fusion by tailoring columnar prior-β grains and α-Ti morphology. Journal of Materials Science & Technology, 2024, 187: 156. DOI:10.1016/j.jmst.2023.11.055 |
| 57. | Sang-Cheol Jin, Ye Jin Kim, Dong Hee Lee, et al. Recrystallization behavior and microstructure evolution of Mg–5Bi–3Al alloy during very high-speed extrusion. Journal of Materials Science & Technology, 2024, 191: 233. DOI:10.1016/j.jmst.2023.11.074 |
| 58. | Yi Wang, Hanqing Gu, Yong Lu, et al. The synergistic effect of Lewis acidic etching V4C3(MXene)@CuSe2/CoSe2 as an advanced cathode material for aluminum batteries. Journal of Materials Science & Technology, 2024, 177: 205. DOI:10.1016/j.jmst.2023.09.005 |
| 59. | Xinzhi Li, Xuewei Fang, Mugong Zhang, et al. Enhanced strength-ductility synergy of magnesium alloy fabricated by ultrasound assisted directed energy deposition. Journal of Materials Science & Technology, 2024, 178: 247. DOI:10.1016/j.jmst.2023.09.021 |
| 60. | Yingjie Huang, Yingchun Wan, Chuming Liu, et al. Effect of forging temperature on the microstructure, subsequent aging precipitation behavior, and mechanical properties of Mg-Gd-Y-Zr-Ag alloy. Journal of Materials Science & Technology, 2024, 181: 41. DOI:10.1016/j.jmst.2023.09.024 |
| 61. | Yi-Tong Liu, Hao-Jie Liang, Miao Du, et al. Ester-based anti-freezing electrolyte achieving ultra-low temperature cycling for sodium-ion batteries. Journal of Materials Science & Technology, 2024, 182: 111. DOI:10.1016/j.jmst.2023.09.040 |
| 62. | Guanjiu Wu, Yichao Xie, Yuan Li, et al. Effect of Y, Al Co-Doping on Hydrogen Storage Properties of La–Mg–Ni-Based Alloys. Acta Metallurgica Sinica (English Letters), 2024, 37(8): 1399. DOI:10.1007/s40195-024-01709-w |
| 63. | Hu Wang, Zhiwen Wang, David S-K. Ting, et al. Structural strength and fatigue analyses of large-scale underwater compressed hydrogen energy storage accumulator. Marine Structures, 2024, 98: 103684. DOI:10.1016/j.marstruc.2024.103684 |
| 64. | Jia-Xin Zhang, Xin Ding, Rui-Run Chen, et al. Diversification of interfaces triggered hydrogen storage properties enhancement. Rare Metals, 2024, 43(5): 2324. DOI:10.1007/s12598-023-02594-5 |
| 65. | Hui Yun, Haiyan Wang, Jing Bai, et al. Activation and hydrogen storage properties of Mg-based composites synthesized by catalytic mechanochemical hydrogenation strategy. International Journal of Hydrogen Energy, 2024, 50: 1025. DOI:10.1016/j.ijhydene.2023.08.311 |
| 66. | Nuo Xu, Haoran Zhou, Mingqiang Zhang, et al. Synergistic effect of Pd single atoms and clusters on the de/re-hydrogenation performance of MgH2. Journal of Materials Science & Technology, 2024, 191: 49. DOI:10.1016/j.jmst.2024.01.009 |
| 67. | Ruixian Wang, Yanshuang Teng, Jinyang Xi, et al. Design of La3-xYxNi9 (x=0–3) alloys with good cyclic stability considering crystal structure and subunit volume. International Journal of Hydrogen Energy, 2024, 83: 745. DOI:10.1016/j.ijhydene.2024.08.172 |
| 68. | Jianhui Zhu, Xi Lin, Lijun Lv, et al. The relationship between thermal management methods and hydrogen storage performance of the metal hydride tank. Journal of Materials Science & Technology, 2024, 203: 66. DOI:10.1016/j.jmst.2024.03.018 |
| 69. | Marcello Baricco, Erika M. Dematteis, Jussara Barale, et al. Hydrogen storage and handling with hydrides. Pure and Applied Chemistry, 2024, 96(4): 511. DOI:10.1515/pac-2023-1134 |
| 70. | Dongsheng Zhou, Dongliang Zhao, Hanfeng Sun, et al. Two-dimensional material MXene and its derivatives enhance the hydrogen storage properties of MgH2: A review and summary. International Journal of Hydrogen Energy, 2024, 71: 279. DOI:10.1016/j.ijhydene.2024.05.227 |
| 71. | Xin Du, Zhaoxin Du, Tianhao Gong, et al. Deformation behavior of Gd alloyed CoCrFeNi high entropy alloy at high temperature under the influence of local nano-ordered structure and misorientation. Materials Science and Engineering: A, 2024, 917: 147413. DOI:10.1016/j.msea.2024.147413 |
| 72. | Chaochao Dun, Xinyi Wang, Linfeng Chen, et al. Nano-enhanced solid-state hydrogen storage: Balancing discovery and pragmatism for future energy solutions. Nano Research, 2024, 17(10): 8729. DOI:10.1007/s12274-024-6876-y |
| 73. | Dong-qiang GAO, Fu-ying WU, Zhi ZHANG, et al. Graphene-loaded nickel−vanadium bimetal oxides as hydrogen pumps to boost solid-state hydrogen storage kinetic performance of magnesium hydride. Transactions of Nonferrous Metals Society of China, 2024, 34(8): 2645. DOI:10.1016/S1003-6326(24)66566-0 |
| 74. | Saeedeh Rastgar, Hassan Rezaei, Habibollah Younesi, et al. Photocatalytic degradation of methylene blue (MB) dye under UV light irradiation by magnetic diesel tank sludge (MDTS). Biomass Conversion and Biorefinery, 2024, 14(17): 20451. DOI:10.1007/s13399-023-04062-7 |
| 75. | Xuejian Wang, Chunquan Liu, Enyu Guo, et al. Toward strength-ductility synergy in as-rolled Mg-Zn-Gd alloy achieved by annealing-induced solute segregation. Journal of Rare Earths, 2024. DOI:10.1016/j.jre.2024.12.010 |
| 76. | Zhaozhe Ren, Jianyi Xu, He Mi, et al. Phase structure and electrochemical properties of A5B19 La0.8-Pr Mg0.2Ni3.8 (x = 0–0.3) hydrogen storage alloy anode material. Journal of Alloys and Compounds, 2024, 1002: 175412. DOI:10.1016/j.jallcom.2024.175412 |
| 77. | Lei Guo, Jinchi Tan, Junyue Ren, et al. Methane catalytic cracking by solid materials and molten media for hydrogen production: A review. Journal of Renewable and Sustainable Energy, 2024, 16(2) DOI:10.1063/5.0188819 |
| 78. | Anshul Gupta, Mohammad Faisal. Magnesium based multi-metallic hybrids with soot for hydrogen storage. International Journal of Hydrogen Energy, 2024, 53: 93. DOI:10.1016/j.ijhydene.2023.12.020 |
| 79. | Yuchen Liu, Djafar Chabane, Omar Elkedim. Optimization of LaNi5 hydrogen storage properties by the combination of mechanical alloying and element substitution. International Journal of Hydrogen Energy, 2024, 53: 394. DOI:10.1016/j.ijhydene.2023.12.038 |
| 80. | Chen Li, Wenhui Ma, Yang Li, et al. Metallurgical performance evaluation of space-weathered Chang’e-5 lunar soil. International Journal of Minerals, Metallurgy and Materials, 2024, 31(6): 1241. DOI:10.1007/s12613-023-2800-9 |
| 81. | Xiaofen Tan, Tim Williams, Philip N.H. Nakashima, et al. In situ growth and shrinkage of coated voids in aluminium. Materials Characterization, 2024, 214: 114022. DOI:10.1016/j.matchar.2024.114022 |
| 82. | Bin Li, Xuan Sun, Hao Chen, et al. Enhancing Mg-Li alloy hydrogen storage kinetics by adding molecular sieve via friction stir processing. Journal of Materials Science & Technology, 2024, 180: 45. DOI:10.1016/j.jmst.2023.04.051 |
| 83. | Yongyang Zhu, Mili Liu, liming Zeng, et al. In situ formed Mg(BH4)2 for improving hydrolysis properties of MgH2. Journal of Magnesium and Alloys, 2024, 12(3): 1204. DOI:10.1016/j.jma.2022.06.017 |
| 84. | Na Lin, Jiliang Wu, Xiaoqiu Ye, et al. Thermodynamic and kinetic isotope effects on hydrogen absorption by Pd–Al2O3 pellets. International Journal of Hydrogen Energy, 2024, 50: 21. DOI:10.1016/j.ijhydene.2023.06.210 |
| 85. | Tabrez Qureshi, Mohammad Mohsin Khan, Harveer Singh Pali. The future of hydrogen economy: Role of high entropy alloys in hydrogen storage. Journal of Alloys and Compounds, 2024, 1004: 175668. DOI:10.1016/j.jallcom.2024.175668 |
| 86. | Dongsheng Zhou, Hanfeng Sun, Shihai Guo, et al. Hydrogen storage properties of Mg-based alloys modified with metal-organic frameworks and carbon-based porous materials: A review and summary. International Journal of Hydrogen Energy, 2024, 57: 1373. DOI:10.1016/j.ijhydene.2024.01.127 |
| 87. | Cui Zhenjie, Jiang Haichang, Zhang Duo, et al. Influence of Mn on the precipitates in 6082 aluminum alloy. Journal of Materials Science, 2024, 59(22): 9734. DOI:10.1007/s10853-023-09291-9 |
| 88. | Fucheng Qiu, Tuo Cheng, Yuchao Song, et al. Achieving superior performance in powder-metallurgy near-β titanium alloy by combining hot rolling and rapid heat treatment followed by aging. Journal of Materials Science & Technology, 2024, 171: 24. DOI:10.1016/j.jmst.2023.06.034 |
| 89. | Kejia Pan, Xiaotao Liu, Bao Wang, et al. The rapid densification behavior of powder metallurgy Ti alloys by induction heating sintering. Journal of Materials Science & Technology, 2024, 181: 152. DOI:10.1016/j.jmst.2023.10.009 |
| 90. | Zunhong Wen, Yanglin Wang, Wensheng Zhao, et al. Effects of Ni addition on the order–disorder transitions of Fe–Pt intermetallic compounds: An experimental study on Fe–Ni–Pt phase diagrams. Journal of Materials Science & Technology, 2024, 182: 54. DOI:10.1016/j.jmst.2023.10.015 |
| 91. | Wenhao Yang, Dan You, Bingnan Deng, et al. Three-dimensional Ti3C2 structure design and in-situ growth of nano-TiO2 crystals to realize high performance lithium-sulfur battery. Journal of Materials Science & Technology, 2024, 193: 187. DOI:10.1016/j.jmst.2023.10.058 |
| 92. | Safia Harrat, Chaker Briki, Mounir Sahli, et al. Experimental investigation of the hydrogen storage capacity in LaNi3.6Al0.4Mn0.3Co0.7 alloy. International Journal of Hydrogen Energy, 2024, 77: 33. DOI:10.1016/j.ijhydene.2024.06.055 |
| 93. | Anshul Gupta, Mohammad Faisal, Flamina A, et al. Enhanced hydrogen storage in Mg catalysed by Cu–Ni–Co–Fe quaternary multi-component alloy. International Journal of Hydrogen Energy, 2024, 50: 932. DOI:10.1016/j.ijhydene.2023.08.243 |
| 94. | Longfei Shao, Xi Lin, Liansen Bian, et al. Engineering control strategy of hydrogen gas direct-heating type Mg-based solid state hydrogen storage tanks: A simulation investigation. Applied Energy, 2024, 375: 124134. DOI:10.1016/j.apenergy.2024.124134 |
| 95. | Hsiu-Chung Tu, Yu-Lin Hsiao, Yi-Dong Lin, et al. Multi-functional hydrogen- and oxygen-capturing FeCo-N-C catalyst with improved hydrogenation of nitroarenes and ORR activity. Chemical Engineering Journal, 2024, 487: 150623. DOI:10.1016/j.cej.2024.150623 |
| 96. | Congwen Duan, Jinhui Wu, Poqian Liang, et al. CNTs-Pd as Efficient Bidirectional Catalyst for Improving Hydrogen Absorption/Desorption Kinetics of Mg/MgH2. Energy & Fuels, 2024, 38(10): 8979. DOI:10.1021/acs.energyfuels.4c01138 |
| 97. | Chang Zhou, Lihua Zhan, Chunhui Liu, et al. Dislocation density-mediated creep ageing behavior of an Al-Cu-Li alloy. Journal of Materials Science & Technology, 2024, 174: 204. DOI:10.1016/j.jmst.2023.08.011 |
| 98. | Yuanyuan Wang, Chengbao Liu, Zuojun Jiao, et al. Corrosion behavior and mechanical property of Mg-4Li-1Ca alloys under micro-compressive stress. Journal of Materials Science & Technology, 2024, 175: 170. DOI:10.1016/j.jmst.2023.08.019 |
| 99. | Qiang Yang, Shuhui Lv, Bo Deng, et al. Degraded creep resistance induced by static precipitation strengthening in high-pressure die casting Mg–Al–Sm alloy. Journal of Materials Science & Technology, 2024, 178: 48. DOI:10.1016/j.jmst.2023.08.035 |
| 100. | Changlu Zhou, Ruihao Yuan, Baolong Su, et al. Creep rupture life prediction of high-temperature titanium alloy using cross-material transfer learning. Journal of Materials Science & Technology, 2024, 178: 39. DOI:10.1016/j.jmst.2023.08.046 |
| 101. | Rui Wang, Dongtao Wang, Hiromi Nagaumi, et al. The novel strategy for enhancing mechanical properties and corrosion resistance via regulating multi-scale microstructure characteristics in Al-Si-Cu-Mg-Zr cast alloy. Journal of Materials Science & Technology, 2024, 180: 102. DOI:10.1016/j.jmst.2023.08.058 |
| 102. | Hongwei Yang, Zichun Zhang, Jun Shu, et al. Gradient nanostructure, enhanced surface integrity and fatigue resistance of Ti-6Al-7Nb alloy processed by surface mechanical attrition treatment. Journal of Materials Science & Technology, 2024, 188: 252. DOI:10.1016/j.jmst.2023.12.011 |
| 103. | Ziyuan Zhao, Daoxiu Li, Xirui Yan, et al. Insights into the dual effects of Ti on the grain refinement and mechanical properties of hypoeutectic Al–Si alloys. Journal of Materials Science & Technology, 2024, 189: 44. DOI:10.1016/j.jmst.2023.12.014 |
| 104. | Feipeng Yang, Jianying Wang, Tao Wen, et al. Double-peak age strengthening of an Al-Mg-Si-Zn alloy processed by laser powder bed fusion. Journal of Materials Science & Technology, 2024, 192: 82. DOI:10.1016/j.jmst.2023.12.040 |
| 105. | Yong Zhang, Lantian Zhang, Xiang Gao, et al. Tailoring precipitate distribution in 2024 aluminum alloy for improving strength and corrosion resistance. Journal of Materials Science & Technology, 2024, 194: 16. DOI:10.1016/j.jmst.2023.12.055 |
| 106. | Ran Liu, Yating Peng, Wan Rong, et al. Thermodynamics and kinetics hydrogen isotope effects of hydrogen/deuterium absorption in Pd-5wt.%Pt alloy. International Journal of Hydrogen Energy, 2024, 50: 637. DOI:10.1016/j.ijhydene.2023.07.329 |
| 107. | Alfonso Magliano, Carlos Perez Carrera, Carmine Maria Pappalardo, et al. A Comprehensive Literature Review on Hydrogen Tanks: Storage, Safety, and Structural Integrity. Applied Sciences, 2024, 14(20): 9348. DOI:10.3390/app14209348 |
| 108. | Yang Zhang, Yuanyuan Bai, Jin Xu, et al. Prediction of electrochemical properties of La–Y–Ni-based hydrogen storage alloys based on machine learning. International Journal of Hydrogen Energy, 2024, 94: 687. DOI:10.1016/j.ijhydene.2024.11.113 |
| 109. | Ran Wu, Xin Zhao, Dandan Ke, et al. Microstructure and hydrogen storage properties of Ti1-Ce V0.45Mn1.5 (x = 0, 0.05, 0.10, 0.15, and 0.20) alloys. Journal of Alloys and Compounds, 2024, 976: 173163. DOI:10.1016/j.jallcom.2023.173163 |
| 110. | Fanqi Bu, Ali Wajid, Na Yang, et al. Fabrication of amorphous TiO2 hydrogen channels and graphene wrappers to enhance the hydrogen storage properties of MgH2 with extremely high cycle stability. Journal of Materials Chemistry A, 2024, 12(20): 12190. DOI:10.1039/D4TA00722K |
| 111. | Xun Zeng, Haoran Yi, Zhuoran Zeng, et al. Track-Rex: A universal toolbox for tracking recrystallization nucleation and grain growth behaviors in polycrystalline materials. Journal of Materials Science & Technology, 2024, 197: 149. DOI:10.1016/j.jmst.2024.02.013 |
| 112. | Guang Han, Yangfan Lu, Hongxing Jia, et al. Magnesium-based energy materials: Progress, challenges, and perspectives. Journal of Magnesium and Alloys, 2023, 11(11): 3896. DOI:10.1016/j.jma.2023.08.009 |
| 113. | Xi Lin, Cheng-long Yin, Li Ren, et al. A one- and three-dimensional coupled model and simulation investigation for the large-scale oil-heating type Mg-based hydrogen storage tank. Chemical Engineering Journal, 2023, 472: 144943. DOI:10.1016/j.cej.2023.144943 |
| 114. | Qun Luo, Xingrui Li, Qian Li, et al. Achieving grain refinement of α-Al and Si modification simultaneously by La‒B‒Sr addition in Al‒10Si alloys. Journal of Materials Science & Technology, 2023, 135: 97. DOI:10.1016/j.jmst.2022.07.009 |
| 115. | Zhongze Yang, Wenchen Xu, Weiqing Zhang, et al. Effect of power spinning and heat treatment on microstructure evolution and mechanical properties of duplex low-cost titanium alloy. Journal of Materials Science & Technology, 2023, 136: 121. DOI:10.1016/j.jmst.2022.07.022 |
| 116. | Haibin Ma, Xuejing Yang, Zhili Wang, et al. Engineering the interface of porous CoMoO3 nanosheets with Co3Mo nanoparticles for high-performance electrochemical overall water splitting. Journal of Materials Science & Technology, 2023, 137: 184. DOI:10.1016/j.jmst.2022.07.044 |
| 117. | Xingpu Zhang, Zhongkang Han, Liangliang Xu, et al. Evolution of precipitate and precipitate/matrix interface in Al-Zn-Mg-Cu (-Ag) alloys. Journal of Materials Science & Technology, 2023, 138: 157. DOI:10.1016/j.jmst.2022.07.049 |
| 118. | Fanjin Yao, Guoqiang You, Sheng Zeng, et al. Reaction-tunable diffusion bonding to multilayered Cu mesh/ZK61 Mg foil composites with thermal conductivity and lightweight synergy. Journal of Materials Science & Technology, 2023, 139: 10. DOI:10.1016/j.jmst.2022.07.060 |
| 119. | Yuxiao Jia, Xuancheng Wang, Leijie Hu, et al. Carbon composite support improving catalytic effect of NbC nanoparticles on the low-temperature hydrogen storage performance of MgH2. Journal of Materials Science & Technology, 2023, 150: 65. DOI:10.1016/j.jmst.2022.11.044 |
| 120. | Jingjing Zhang, Bing Zhang, Xiubo Xie, et al. Recent advances in the nanoconfinement of Mg-related hydrogen storage materials: A minor review. International Journal of Minerals, Metallurgy and Materials, 2023, 30(1): 14. DOI:10.1007/s12613-022-2519-z |
| 121. | Hui Wu, Zhennan Xiong, Yiyang Mao, et al. MoS2/MoO2 nanosheets anchored on carbon cloth for high-performance magnesium- and sodium-ion storage. Journal of Materials Science & Technology, 2023, 143: 43. DOI:10.1016/j.jmst.2022.09.039 |
| 122. | Heng Lu, Jianbo Li, Tianyu Xie, et al. Synergistic Catalytic Effects of AlH3–TiF3 Composites on the Hydrogen Storage Performance of MgH2. The Journal of Physical Chemistry C, 2023, 127(1): 92. DOI:10.1021/acs.jpcc.2c07370 |
| 123. | Yuhuan Wang, Zhiwei Peng, Chengwang Yin, et al. Sodium fluotitanate with the formation of multicomponent catalytic species for superior hydrogen storage of magnesium hydride. Journal of Alloys and Compounds, 2023, 938: 168605. DOI:10.1016/j.jallcom.2022.168605 |
| 124. | Jinshu Xie, Jinghuai Zhang, Zhi Zhang, et al. Corrosion mechanism of Mg alloys involving elongated long-period stacking ordered phase and intragranular lamellar structure. Journal of Materials Science & Technology, 2023, 151: 190. DOI:10.1016/j.jmst.2023.01.005 |
| 125. | Xing Zhu, Zhiguang Zhu, Tingting Liu, et al. Crack-free and high-strength AA2024 alloy obtained by additive manufacturing with controlled columnar-equiaxed-transition. Journal of Materials Science & Technology, 2023, 156: 183. DOI:10.1016/j.jmst.2023.01.012 |
| 126. | Jing Feng, Yanfeng Han, Xiaocang Han, et al. Atomic insights into heterogeneous nucleation and growth kinetics of Al on TiB2 particles in undercooled Al-5Ti-1B melt. Journal of Materials Science & Technology, 2023, 156: 72. DOI:10.1016/j.jmst.2023.01.027 |
| 127. | Jiangchuan Liu, Qinke Tang, Yunfeng Zhu, et al. Assisting Ni catalysis by CeO2 with oxygen vacancy to optimize the hydrogen storage properties of MgH2. Journal of Materials Science & Technology, 2023, 159: 62. DOI:10.1016/j.jmst.2023.03.010 |
| 128. | Xiao Li, Yigang Yan, Torben R. Jensen, et al. Magnesium borohydride Mg(BH4)2 for energy applications: A review. Journal of Materials Science & Technology, 2023, 161: 170. DOI:10.1016/j.jmst.2023.03.040 |
| 129. | Yaxiong Yang, Xin Zhang, Lingchao Zhang, et al. Recent advances in catalyst-modified Mg-based hydrogen storage materials. Journal of Materials Science & Technology, 2023, 163: 182. DOI:10.1016/j.jmst.2023.03.063 |
| 130. | Ivo Spacil, David Holec, Mihaela Albu, et al. Revealing effects of solute Ta on solidification and precipitation of Al-7Si-0.3Mg based alloys. Materialia, 2023, 30: 101846. DOI:10.1016/j.mtla.2023.101846 |
| 131. | Hao Dong, Yuzeng Chen, Yongchun Guo, et al. A nanostructured Ag/Cu multilayered composite exhibiting high hardness and high electrical conductivity prepared by a novel multicomponent accumulative roll bonding. Materials Characterization, 2023, 196: 112613. DOI:10.1016/j.matchar.2022.112613 |
| 132. | Nan Ding, Wanqiang Liu, Bingbing Chen, et al. Interface and body engineering via aluminum hydride enabling Ti-V-Cr-Mn alloy with enhanced hydrogen storage performance. Chemical Engineering Journal, 2023, 470: 144143. DOI:10.1016/j.cej.2023.144143 |
| 133. | Qiang Zhang, Yongsheng Sun, Yuexin Han, et al. Reaction behavior and non-isothermal kinetics of suspension magnetization roasting of limonite and siderite. International Journal of Minerals, Metallurgy and Materials, 2023, 30(5): 824. DOI:10.1007/s12613-022-2523-3 |
| 134. | Xingxin Xu, Hualiang Huang. The corrosion inhibition mechanism of Ca(H2PO4)2 on AZ91D magnesium alloy in 3.5 wt% NaCl solution. New Journal of Chemistry, 2023, 47(42): 19726. DOI:10.1039/D3NJ04280D |
| 135. | Li Wang, Yuyuan Zhao, Xu Zhang, et al. Hydrogen storage and electrochemical properties of 3R- and 2H-A5B19 structures in La-Y-Ni-based alloys. Journal of Alloys and Compounds, 2023, 960: 170951. DOI:10.1016/j.jallcom.2023.170951 |
| 136. | Mojtaba Komeili, Hadi Arabi, Faiz Pourarian. Structural investigation and hydrogenation properties of TiZrXMnFeNi (X = Cr, Mo, and W) high entropy alloys. Journal of Alloys and Compounds, 2023, 967: 171672. DOI:10.1016/j.jallcom.2023.171672 |
| 137. | Qun Luo, Qi Cai, Qinfen Gu, et al. Negative thermal expansion and phase transition of low-temperature Mg2NiH4. Journal of Magnesium and Alloys, 2023, 11(9): 3338. DOI:10.1016/j.jma.2022.09.012 |
| 138. | Wengang Bu, Wenlian Peng, Qinghai Liu, et al. Nanocrystalline structure and electrochemical hydrogen storage properties of the as-milled Mg–V–Ni–Fe–Zn-based materials. International Journal of Hydrogen Energy, 2023, 48(19): 6937. DOI:10.1016/j.ijhydene.2022.03.163 |
| 139. | Siow Mean Loh, David M. Grant, Gavin S. Walker, et al. Substitutional effect of Ti-based AB2 hydrogen storage alloys: A density functional theory study. International Journal of Hydrogen Energy, 2023, 48(35): 13227. DOI:10.1016/j.ijhydene.2022.12.083 |
| 140. | Yang Xinglin, Lu Xiaohui, Zhang Jiaqi, et al. Progress in improving hydrogen storage properties of Mg-based materials. Materials Today Advances, 2023, 19: 100387. DOI:10.1016/j.mtadv.2023.100387 |
| 141. | Pu Zhao, Zhengwei Li, Xinzhu Du, et al. High-strength joining of 6063Al alloys by an Zn–Sn hypereutectic interlayer in air based on liquid and solid phase diffusion. Journal of Materials Research and Technology, 2023, 26: 6108. DOI:10.1016/j.jmrt.2023.08.310 |
| 142. | Zhiyu Lu, Jiahuan He, Mengchen Song, et al. Bullet-like vanadium-based MOFs as a highly active catalyst for promoting the hydrogen storage property in MgH2. International Journal of Minerals, Metallurgy and Materials, 2023, 30(1): 44. DOI:10.1007/s12613-021-2372-5 |
| 143. | KaiLong Zheng, Hui Xing, Lanting Zhang, et al. The mechanism of nano-network structure formed by friction-induced pozzolanic silicate. Vacuum, 2023, 210: 111858. DOI:10.1016/j.vacuum.2023.111858 |
| 144. | Jiwei Yao, Yang Zhao, Hui Yong, et al. Characterizing hydrogen storage behavior of Mg-based materials catalyzed by S2− and O2− ions. Journal of Physics and Chemistry of Solids, 2023, 174: 111153. DOI:10.1016/j.jpcs.2022.111153 |
| 145. | Shenglan Yang, Jing Zhong, Jiong Wang, et al. A novel computational model for isotropic interfacial energies in multicomponent alloys and its coupling with phase-field model with finite interface dissipation. Journal of Materials Science & Technology, 2023, 133: 111. DOI:10.1016/j.jmst.2022.04.057 |
| 146. | Yan Yang, Xiaoming Xiong, Jing Chen, et al. Research advances of magnesium and magnesium alloys worldwide in 2022. Journal of Magnesium and Alloys, 2023, 11(8): 2611. DOI:10.1016/j.jma.2023.07.011 |
| 147. | Hao-yu ZHANG, Gui-bin TIAN, Fu-ying WU, et al. Catalytic effect of two-dimensional Mo2TiC2 MXene for tailoring hydrogen storage performance of MgH2. Transactions of Nonferrous Metals Society of China, 2023, 33(11): 3465. DOI:10.1016/S1003-6326(23)66347-2 |
| 148. | Jin Liu, Zhiyong Du, Jinlong Su, et al. Effect of quenching residual stress on precipitation behaviour of 7085 aluminium alloy. Journal of Materials Science & Technology, 2023, 132: 154. DOI:10.1016/j.jmst.2022.06.010 |
| 149. | Wei Fu, Pengfei Dang, Shengwu Guo, et al. Heterogeneous fiberous structured Mg-Zn-Zr alloy with superior strength-ductility synergy. Journal of Materials Science & Technology, 2023, 134: 67. DOI:10.1016/j.jmst.2022.06.021 |
| 150. | Sheng-Lan Yang, Jing Zhong, Kai Wang, et al. Complex hexagonal close-packed dendritic growth during alloy solidification by graphics processing unit-accelerated three-dimensional phase-field simulations: demo for Mg–Gd alloy. Rare Metals, 2023, 42(10): 3468. DOI:10.1007/s12598-023-02365-2 |
| 151. | Chunquan Liu, Xianhua Chen, Domonkos Tolnai, et al. Annealing hardening effect aroused by solute segregation in gradient ultrafine-grained Mg-Gd-Zr alloy. Journal of Materials Science & Technology, 2023, 144: 70. DOI:10.1016/j.jmst.2022.10.015 |
| 152. | Xuelian Zhang, Xin Zhang, Lingchao Zhang, et al. Remarkable low-temperature hydrogen cycling kinetics of Mg enabled by VH nanoparticles. Journal of Materials Science & Technology, 2023, 144: 168. DOI:10.1016/j.jmst.2022.10.029 |
| 153. | Zhiwen Zheng, Cong Peng, Qingan Zhang. Structural features of 18R-type long-period stacking ordered phase in Mg85Zn6Y9 alloy and the Ni doping effect on its hydrogen storage properties. Journal of Materials Science & Technology, 2023, 145: 148. DOI:10.1016/j.jmst.2022.10.057 |
| 154. | Xuancheng Wang, Yuxiao Jia, Xuezhang Xiao, et al. Robust architecture of 2D nano Mg-based borohydride on graphene with superior reversible hydrogen storage performance. Journal of Materials Science & Technology, 2023, 146: 121. DOI:10.1016/j.jmst.2022.10.059 |
| 155. | Kaveh Edalati, Etsuo Akiba, Walter J. Botta, et al. Impact of severe plastic deformation on kinetics and thermodynamics of hydrogen storage in magnesium and its alloys. Journal of Materials Science & Technology, 2023, 146: 221. DOI:10.1016/j.jmst.2022.10.068 |
| 156. | Hongcan Chen, Tianci Xie, Quan Liu, et al. Mechanism and prediction of aging time related thermal conductivity evolution of Mg-Zn alloys. Journal of Alloys and Compounds, 2023, 930: 167392. DOI:10.1016/j.jallcom.2022.167392 |
| 157. | Houqun Xiao, Huazhou Hu, Jie Li, et al. Enhanced hydrogen storage properties of Ti–Cr–Nb alloys by melt-spin and Mo-doping. International Journal of Hydrogen Energy, 2023, 48(58): 22174. DOI:10.1016/j.ijhydene.2023.03.100 |
| 158. | Yaokun Fu, Lu Zhang, Yuan Li, et al. Catalytic effect of MOF-derived transition metal catalyst FeCoS@C on hydrogen storage of magnesium. Journal of Materials Science & Technology, 2023, 138: 59. DOI:10.1016/j.jmst.2022.08.019 |
| 159. | Zeng-Yi Li, Yu-Jia Sun, Chen-Chen Zhang, et al. Optimizing hydrogen ad/desorption of Mg-based hydrides for energy-storage applications. Journal of Materials Science & Technology, 2023, 141: 221. DOI:10.1016/j.jmst.2022.08.047 |
| 160. | Zhi Zhang, Jinshu Xie, Jinghuai Zhang, et al. Simultaneously improving mechanical and anti-corrosion properties of extruded Mg-Al dilute alloy via trace Er addition. Journal of Materials Science & Technology, 2023, 150: 49. DOI:10.1016/j.jmst.2022.12.014 |
| 161. | Kun Li, Chen Ji, Shengwen Bai, et al. Selective laser melting of magnesium alloys: Necessity, formability, performance, optimization and applications. Journal of Materials Science & Technology, 2023, 154: 65. DOI:10.1016/j.jmst.2022.12.053 |
| 162. | Pu Zhao, Zhengwei Li, Zhiwu Xu, et al. Migrating behaviors of interfacial elements and oxide layers during diffusion bonding of 6063Al alloys using Zn interlayer in air. Journal of Materials Science & Technology, 2023, 155: 119. DOI:10.1016/j.jmst.2022.12.067 |
| 163. | Jianwei Tang, Liang Chen, Zhigang Li, et al. Suppressing abnormal grain growth and switching precipitation behaviors in ZK60 Mg profile by inducing pre-tension. Journal of Materials Science & Technology, 2023, 155: 89. DOI:10.1016/j.jmst.2022.12.077 |
| 164. | Rohit Y. Sathe, T.J. Dhilip Kumar, Rajeev Ahuja. Furtherance of the material-based hydrogen storage based on theory and experiments. International Journal of Hydrogen Energy, 2023, 48(34): 12767. DOI:10.1016/j.ijhydene.2022.11.306 |
| 165. | Zhenyu Feng, Hong Zhong, Bin Yang, et al. Improved Hydrogen Storage Properties of Ti23V40Mn37 Alloy Doped with Zr7Ni10 by Rapid Solidification. Acta Metallurgica Sinica (English Letters), 2023, 36(7): 1211. DOI:10.1007/s40195-022-01518-z |
| 166. | Hui Tong, Yi Li, Gaoqiang Mao, et al. Regeneration of spent LiFePO4 as a high-performance cathode material by a simultaneous coating and doping strategy. International Journal of Minerals, Metallurgy and Materials, 2023, 30(6): 1162. DOI:10.1007/s12613-022-2577-2 |
| 167. | Nuo Xu, Zirui Yuan, Zhihong Ma, et al. Effects of highly dispersed Ni nanoparticles on the hydrogen storage performance of MgH2. International Journal of Minerals, Metallurgy and Materials, 2023, 30(1): 54. DOI:10.1007/s12613-022-2510-8 |
| 168. | Zixiang Li, Baohua Chang, Dongqi Zhang, et al. Effect of post-heat treatment on Ti2AlNb-based alloy fabricated by twin-wire alternating dual-electron beam additive manufacturing technology. Journal of Materials Science & Technology, 2023, 157: 130. DOI:10.1016/j.jmst.2023.02.021 |
| 169. | Haoyu Pang, Yingang Liu, Jiao Luo, et al. Phase/grain boundary assisted-3D static globularization mechanism of TC17 alloy based on the microstructure reconstruction and in-situ TEM observation. Journal of Materials Science & Technology, 2023, 157: 246. DOI:10.1016/j.jmst.2023.02.043 |
| 170. | Daoxiu Li, Xirui Yan, Yong Fan, et al. An anti Si/Zr-poisoning strategy of Al grain refinement by the evolving effect of doped complex. Acta Materialia, 2023, 249: 118812. DOI:10.1016/j.actamat.2023.118812 |
| 171. | Sheng-Xiang Wu, Li Wang, Hui-Ping Yuan, et al. Experimental investigation and thermodynamic assessment of La–Y–Ni ternary system in Ni-rich corner. Rare Metals, 2023, 42(4): 1316. DOI:10.1007/s12598-022-02105-y |
| 172. | Li Wang, Shujuan Zhou, Xu Zhang, et al. Insights into the structure–performance relationship in La–Y–Ni-based hydrogen storage alloys. International Journal of Hydrogen Energy, 2023, 48(66): 25797. DOI:10.1016/j.ijhydene.2023.03.329 |
| 173. | Xiaofen Tan, Tim Williams, Min Song, et al. WITHDRAWN: In situ growth and shrinkage of coated voids in aluminium. Journal of Materials Science & Technology, 2023. DOI:10.1016/j.jmst.2023.06.045 |
| 174. | Tongwen Huang, Chengshang Zhou. Surface Diffusion-Controlled Jonhson–Mehl–Avrami–Kolmogorov Model for Hydrogenation of Mg-based Alloys. The Journal of Physical Chemistry C, 2023, 127(28): 13900. DOI:10.1021/acs.jpcc.3c02650 |
| 175. | Zeli Jia, Xiaomeng Fan, Jiangyi He, et al. Evolution of microstructure and electromagnetic interference shielding performance during the ZrC precursor thermal decomposition process. International Journal of Minerals, Metallurgy and Materials, 2023, 30(7): 1398. DOI:10.1007/s12613-023-2619-4 |
| 176. | Mengchen Song, Runkai Xie, Liuting Zhang, et al. Combined “Gateway” and “Spillover” effects originated from a CeNi5 alloy catalyst for hydrogen storage of MgH2. International Journal of Minerals, Metallurgy and Materials, 2023, 30(5): 970. DOI:10.1007/s12613-022-2529-x |
| 177. | Saeed Nekoonam, Fathollah Pourfayaz. Selection of appropriate configuration for optimal cascaded thermal energy storage system under the effect of outlet threshold temperature constraint. Journal of Energy Storage, 2023, 66: 107417. DOI:10.1016/j.est.2023.107417 |
| 178. | M.V. Lototskyy, B.P. Tarasov, V.A. Yartys. Gas-phase applications of metal hydrides. Journal of Energy Storage, 2023, 72: 108165. DOI:10.1016/j.est.2023.108165 |
| 179. | Yaşar KARATAŞ, Adem RÜZGAR. Poli(N-vinil-2-pirolidon) ile Kararlaştırılmış Ru-Fe Nanokümelerinin Sentezlenmesi, Tanımlanması ve Metilamin-Boran’ın Hidroliz Tepkimesinde Katalitik Etkinliğinin Araştırılması. Iğdır Üniversitesi Fen Bilimleri Enstitüsü Dergisi, 2023, 13(2): 1142. DOI:10.21597/jist.1271619 |
| 180. | Ismail Hilali, Ahmet Akbas, Vehbi Balak, et al. An experimental study to validate optimum distance between metal hydride tanks with staggered arrangement for effective thermal management. International Journal of Hydrogen Energy, 2022, 47(45): 19732. DOI:10.1016/j.ijhydene.2022.03.201 |
| 181. | Xuan Liu, Gaoyang Liu, Jilai Xue, et al. Hydrogen as a carrier of renewable energies toward carbon neutrality: State-of-the-art and challenging issues. International Journal of Minerals, Metallurgy and Materials, 2022, 29(5): 1073. DOI:10.1007/s12613-022-2449-9 |
| 182. | Heng Lu, Jianbo Li, Tianyu Xie, et al. Mg/MgH2 hydrogen storage system destabilized by recyclable AlH3–NaBH4 composite. International Journal of Hydrogen Energy, 2022, 47(84): 35737. DOI:10.1016/j.ijhydene.2022.08.156 |
| 183. | Xiong Lu, Liuting Zhang, Jiaguang Zheng, et al. Construction of carbon covered Mg2NiH4 nanocrystalline for hydrogen storage. Journal of Alloys and Compounds, 2022, 905: 164169. DOI:10.1016/j.jallcom.2022.164169 |
| 184. | Tianliang Zhao, Zhexu Wang, Yujun Feng, et al. Synergistic corrosion inhibition of sodium phosphate and sodium dodecyl sulphate on magnesium alloy AZ91 in 3.5 wt% NaCl solution. Materials Today Communications, 2022, 31: 103568. DOI:10.1016/j.mtcomm.2022.103568 |
| 185. | Qi Zhao, Magd Abdel Wahab, Yong Ling, et al. Fatigue crack propagation across grain boundary of Al-Cu-Mg bicrystal based on crystal plasticity XFEM and cohesive zone model. Journal of Materials Science & Technology, 2022, 126: 275. DOI:10.1016/j.jmst.2022.03.020 |
| 186. | Bowei Yang, Yu Wang, Minqiang Gao, et al. Microstructural evolution and strengthening mechanism of Al–Mg alloys with fine grains processed by accumulative continuous extrusion forming. Journal of Materials Science & Technology, 2022, 128: 195. DOI:10.1016/j.jmst.2022.03.032 |
| 187. | Yanning Chen, Liang Wu, Wenhui Yao, et al. Development of metal-organic framework (MOF) decorated graphene oxide/MgAl-layered double hydroxide coating via microstructural optimization for anti-corrosion micro-arc oxidation coatings of magnesium alloy. Journal of Materials Science & Technology, 2022, 130: 12. DOI:10.1016/j.jmst.2022.03.039 |
| 188. | Kai Chen, Qunbo Fan, Jiahao Yao, et al. Composition design of a novel Ti-6Mo-3.5Cr-1Zr alloy with high-strength and ultrahigh-ductility. Journal of Materials Science & Technology, 2022, 131: 276. DOI:10.1016/j.jmst.2022.03.040 |
| 189. | Rui Li, Yi Zeng, Xiang Xiong, et al. Oxidation Behavior of the Si-B-X (X = Mo, Cr, or Ti) Alloys in the Temperature Range of 1000–1400 °C. ACS Omega, 2022, 7(17): 15145. DOI:10.1021/acsomega.2c01085 |
| 190. | Qian Li, Lishun Han, Qun Luo, et al. Towards Understanding the Corrosion Behavior of Zinc‐Metal Anode in Aqueous Systems: From Fundamentals to Strategies. Batteries & Supercaps, 2022, 5(4) DOI:10.1002/batt.202100417 |
| 191. | Wengang Bu, Qinghai Liu, Wenlian Peng, et al. Hydrogen storage kinetics and thermodynamics of Mg‐based alloys by rare earth doping and Ni substitution. Journal of Chemical Technology & Biotechnology, 2022, 97(5): 1180. DOI:10.1002/jctb.7002 |
| 192. | Kaiming Hou, Xiaojiang Hou, Xiaohui Ye, et al. Carbon nanotubes and (Mg10Ni)85Ce15 synergistically activate Mg-Al alloy waste for efficiently hydrolysis hydrogen generation. Fuel, 2022, 324: 124829. DOI:10.1016/j.fuel.2022.124829 |
| 193. | Huafeng Fu, Jia Hu, Yangfan Lu, et al. Synergistic Effect of a Facilely Synthesized MnV2O6 Catalyst on Improving the Low-Temperature Kinetic Properties of MgH2. ACS Applied Materials & Interfaces, 2022, 14(29): 33161. DOI:10.1021/acsami.2c06642 |
| 194. | Aobo Hu, Shuizhou Cai. Spatial phase structure and oxidation process of Al-W alloy powder with high sphericity. Journal of Materials Science & Technology, 2022, 114: 62. DOI:10.1016/j.jmst.2021.10.004 |
| 195. | Zhao Ding, Yuting Li, Hang Yang, et al. Tailoring MgH2 for hydrogen storage through nanoengineering and catalysis. Journal of Magnesium and Alloys, 2022, 10(11): 2946. DOI:10.1016/j.jma.2022.09.028 |
| 196. | Qian Zhang, Hongcan Chen, Qun Luo, et al. The design of Ti–Cu–Ni–Zr titanium alloy solder: thermodynamic calculation and experimental validation. Journal of Materials Science, 2022, 57(12): 6819. DOI:10.1007/s10853-022-07063-5 |
| 197. | F. Liu, Z.Y. Liu, G.Y. He, et al. Dislocation ordering and texture strengthening of naturally aged Al-Cu-Mg alloy. Journal of Materials Science & Technology, 2022, 118: 1. DOI:10.1016/j.jmst.2021.12.011 |
| 198. | Farai Michael Nyahuma, Liuting Zhang, Mengchen Song, et al. Significantly improved hydrogen storage behaviors in MgH2 with Nb nanocatalyst. International Journal of Minerals, Metallurgy and Materials, 2022, 29(9): 1788. DOI:10.1007/s12613-021-2303-5 |
| 199. | Shuai Zhang, Qianqian Li, Hongcan Chen, et al. Icosahedral quasicrystal structure of the Mg40Zn55Nd5 phase and its thermodynamic stability. International Journal of Minerals, Metallurgy and Materials, 2022, 29(8): 1543. DOI:10.1007/s12613-021-2391-2 |
| 200. | Yanfei Chen, Zhengqiang Zhu, Jixue Zhou. Study on the strengthening mechanism of rare earth yttrium on magnesium alloys. Materials Science and Engineering: A, 2022, 850: 143513. DOI:10.1016/j.msea.2022.143513 |
| 201. | J. Christudasjustus, C.S. Witharamage, Ganesh Walunj, et al. The influence of spark plasma sintering temperatures on the microstructure, hardness, and elastic modulus of the nanocrystalline Al-xV alloys produced by high-energy ball milling. Journal of Materials Science & Technology, 2022, 122: 68. DOI:10.1016/j.jmst.2022.02.008 |
| 202. | Kesong Miao, Meng Huang, Yiping Xia, et al. Unexpected de-twinning of strongly-textured Ti mediated by local stress. Journal of Materials Science & Technology, 2022, 125: 231. DOI:10.1016/j.jmst.2022.02.039 |
| 203. | Ying Zhang, Dongsheng Li, Xiaoqiang Li, et al. Creep deformation and strength evolution mechanisms of a Ti-6Al-4V alloy during stress relaxation at elevated temperatures from elastic to plastic loading. Journal of Materials Science & Technology, 2022, 126: 93. DOI:10.1016/j.jmst.2022.02.042 |
| 204. | J. Wang, X.L. Lu, Y. Tian, et al. An insight into a novel Mg2InSm prismatic plate in Mg-In-Sm alloy. Journal of Materials Science & Technology, 2022, 125: 222. DOI:10.1016/j.jmst.2022.02.046 |
| 205. | Dongxu Li, Guoying Zhang, Gang Lu, et al. Precipitation of Ti2Al phases at lamellar interfaces in a high-Nb-containing TiAl alloy during thermal exposure. Journal of Materials Science & Technology, 2022, 126: 132. DOI:10.1016/j.jmst.2022.02.048 |
| 206. | Qinyang Zhao, Leandro Bolzoni, Yongnan Chen, et al. Processing of metastable beta titanium alloy: Comprehensive study on deformation behaviour and exceptional microstructure variation mechanisms. Journal of Materials Science & Technology, 2022, 126: 22. DOI:10.1016/j.jmst.2022.02.050 |
| 207. | Jinzhe Lyu, Viktor Kudiiarov, Andrey Lider. Experimentally Observed Nucleation and Growth Behavior of Mg/MgH2 during De/Hydrogenation of MgH2/Mg: A Review. Materials, 2022, 15(22): 8004. DOI:10.3390/ma15228004 |
| 208. | Qingfu Wang, Mingxing Zhang, Chuntian Yang, et al. Oral microbiota accelerates corrosion of 316L stainless steel for orthodontic applications. Journal of Materials Science & Technology, 2022, 128: 118. DOI:10.1016/j.jmst.2022.04.012 |
| 209. | Changzheng Li, Huan Liu, Yunchang Xin, et al. Achieving ultra-high strength using densely ultra-fine LPSO phase. Journal of Materials Science & Technology, 2022, 129: 135. DOI:10.1016/j.jmst.2022.04.036 |
| 210. | Jianyue Zhang, Xuzhe Zhao, De’an Meng, et al. Utilization of surface nanocrystalline to improve the bendability of AZ31 Mg alloy sheet. International Journal of Minerals, Metallurgy and Materials, 2022, 29(7): 1413. DOI:10.1007/s12613-022-2414-7 |
| 211. | Ahmad Alzahrani, Senthil Kumar Ramu, Gunapriya Devarajan, et al. A Review on Hydrogen-Based Hybrid Microgrid System: Topologies for Hydrogen Energy Storage, Integration, and Energy Management with Solar and Wind Energy. Energies, 2022, 15(21): 7979. DOI:10.3390/en15217979 |
| 212. | Gaoyang Liu, Faguo Hou, Shanlong Peng, et al. Process and challenges of stainless steel based bipolar plates for proton exchange membrane fuel cells. International Journal of Minerals, Metallurgy and Materials, 2022, 29(5): 1099. DOI:10.1007/s12613-022-2485-5 |
| 213. | Zhongyue Hu, Fuliang Ma, Luqi Liu, et al. Fluorine-free superhydrophobic coating with mechanical interlocking and high corrosion resistance. Progress in Organic Coatings, 2022, 168: 106871. DOI:10.1016/j.porgcoat.2022.106871 |
| 214. | Karim Lahmer. Numerical investigation of thermal and electrical management during hydrogen reversible solid-state storage using a novel heat exchanger based on thermoelectric modules. International Journal of Hydrogen Energy, 2022, 47(71): 30580. DOI:10.1016/j.ijhydene.2022.07.005 |
| 215. | Qi Yin, Kai Zhang, Xian-Zhu Fu, et al. Rapid coating preparation strategy for chromium nitride coated titanium bipolar plates of proton exchange membrane fuel cells. International Journal of Hydrogen Energy, 2022, 47(73): 31435. DOI:10.1016/j.ijhydene.2022.07.057 |
| 216. | Jing Bai, Danting Li, Qianhong Cao, et al. Hydrolysis H2 generation behavior of AM50 alloy waste coactivated by Mg-based master alloys. International Journal of Hydrogen Energy, 2022, 47(73): 31191. DOI:10.1016/j.ijhydene.2022.07.068 |
| 217. | Jing Bai, Danting Li, Qianhong Cao, et al. H2 Production of As‐Cast Multialloying Mg‐Rich Alloys by Electrochemical Hydrolysis in NaCl Solution. Energy Technology, 2022, 10(5) DOI:10.1002/ente.202200088 |
| 218. | Bernd Gamisch, Lea Huber, Matthias Gaderer, et al. On the Kinetic Mechanisms of the Reduction and Oxidation Reactions of Iron Oxide/Iron Pellets for a Hydrogen Storage Process. Energies, 2022, 15(21): 8322. DOI:10.3390/en15218322 |
| 219. | Hongcan Chen, Wei Xu, Qun Luo, et al. Thermodynamic prediction of martensitic transformation temperature in Fe-C-X (X=Ni, Mn, Si, Cr) systems with dilatational coefficient model. Journal of Materials Science & Technology, 2022, 112: 291. DOI:10.1016/j.jmst.2021.09.060 |
| 220. | Wang Yi, Guangchen Liu, Zhao Lu, et al. Efficient alloy design of Sr-modified A356 alloys driven by computational thermodynamics and machine learning. Journal of Materials Science & Technology, 2022, 112: 277. DOI:10.1016/j.jmst.2021.09.061 |
| 221. | Heng Lu, Jianbo Li, Yangfan Lu, et al. ZrO2@Nb2CT composite as the efficient catalyst for Mg/MgH2 based reversible hydrogen storage material. International Journal of Hydrogen Energy, 2022, 47(90): 38282. DOI:10.1016/j.ijhydene.2022.09.013 |
| 222. | Biao Tang, Jian-Bo Li, Jun-Liu Ye, et al. Strengthening Mechanism and Microstructure of Deformable Ti Particles Reinforced AZ91 Composite. Acta Metallurgica Sinica (English Letters), 2022, 35(12): 1935. DOI:10.1007/s40195-022-01428-0 |
| 223. | John Olorunfemi Abe, Olawale Muhammed Popoola, Abimbola Patricia Popoola. Study of the Influence of Refractory Nitride Additives on Hydrogen Storage Properties of Ti6Al4V-Based Materials Produced by Spark Plasma Sintering. 2024 International Conference on Electrical, Computer and Energy Technologies (ICECET, DOI:10.1109/ICECET61485.2024.10698608 |
| 224. | Safia Harrat, Chaker Briki, Mounir Sahli, et al. Hydrogen Storage Efficiency of LaNi3.6AL0.4Mn0.3Co0.7 Metal Hydride Powder. 2023 14th International Renewable Energy Congress (IREC), DOI:10.1109/IREC59750.2023.10389414 |
| 225. | Magnesium‐Based Energy Storage Materials and Systems. DOI:10.1002/9783527842612.ref |
| 226. | Paul Arévalo, Marcos Tostado-Véliz, Daniel Icaza-Álvarez, et al. Hydrogen Energy Conversion and Management. DOI:10.1016/B978-0-443-15329-7.00002-8 |
Figures(10) / Tables(4)
Copyright©2019 Editorial Office of International Journal of Minerals, Metallurgy and Materials 京ICP备13030111号
Supported by:
Beijing Renhe Information Technology Co., Ltd.
Email:
info@rhhz.net
| No. | HSA | Test conditions | RCS | E / (kJ∙mol−1) | Ref. |
| 1 | LaNi5 | 293–333 K, P − Peq = 100 kPa | Chemisorption | 19.66 (ab) | [57] |
| 2 | LaNi4.5Al0.5 | 273–343 K, P − Peq = 32.4 kPa | Chemisorption | 39.77 (ab) | [58] |
| 3 | MmNi4.2Al0.8 | 288–308 K, 0.013 MPa | Diffusion of hydrogen | 48.09 (de) | [59] |
| 4 | La1.5Ni0.5Mg17 | 523–573 K, 0.755 MPa | Diffusion of hydrogen | 90 (ab) | [60] |
| 5 | ZrCo | 544–603 K, P/P0 = 0.9–1 MPa | Nucleation and growth | 120 (ab) | [61] |
| 6 | TiFe | 243–298 K, 0.02 MPa | Chemisorption | 3.35 (ab) | [62] |
| 7 | TiFe0.8Ni0.2 | 373–423 K, |Peq − P0.5|/Peqa | Diffusion of hydrogen | 53.13 (ab) | [63] |
| 8 | Zr0.2Ho0.8Co2 | 323–473 K, 0–5 MPa | ― | 15 (ab) | [64] |
| 9 | Ti33V20Cr47 | 293–353 K, 3.5 MPa | Diffusion of hydrogen | 25.7 (ab) | [65] |
| 10 | Mg2Ni | 528–623 K, 4 MPa | Diffusion of hydrogen | 44 (ab) | [22] |
| 11 | Mg1.9Ag0.1Ni | 523–573 K, 0.768 MPa | Diffusion of hydrogen | 52 (ab) | [66] |
| 12 | MgH2−5at%V | 453–573 K, 0.015 MPa | ― | 62 (de) | [67] |
| Note: aP0.5 is the pressure at the reaction fraction of 0.5. | |||||
DownLoad:
CSV
| No. | HSA | Test conditions | RCS | g(P, Peq) | Ref. |
| 1 | LaNi5 | P − Peq = 50−200 kPa, 303 K | Chemisorption | P − Peq | [57] |
| 2 | LaNi4.5Al0.5 | P − Peq = 25.3−66.9 kPa, 298 K | Chemisorption | P − Peq | [58] |
| 3 | La1.5Ni0.5Mg17 | 0.256–0.992 MPa, 553 K | Diffusion of hydrogen | [(P − Peq)/Peq]2 | [60] |
| 4 | Mg2Ni | 0.275–1.133 MPa, 553 K | Diffusion of hydrogen | P1/2 − P_{\rm eq}^{1/2} | [22] |
| 5 | MgH2−5at%V | 0.007–0.4 MPa, 533–673 K | ― | 1 − P/Peq | [68] |
| 6 | Mg−10wt%Ni | P − Peq = 20.1–54.6 kPa, 573 K | ― | [P − Peq]1.25 | [69] |
| 7 | ZrCo | <1 MPa, 300 K | Chemisorption | P2 | [70] |
| 8 | TiFe | 1.717–2.626 MPa, 294 K | Chemisorption | P − Peq | [62] |
| 9 | TiFe0.8Ni0.2 | 0.246–0.733 MPa, 408 K | ― | (Peq − P)/Peq | [71] |
DownLoad:
CSV
| No. | Test conditions | Kinetic model | RCS | E / (kJ·mol−1) | Ref. |
| 1 | 288–353 K, <1 MPa | CV | Chemical reaction | 32.2 | [75] |
| 2 | 273–363 K, 0.5 MPa | ― | Nucleation and growth | 31.8 | [76] |
| 3 | 333–338 K, 2 MPa | ― | Mixed (chemisorption and diffusion of hydrogen) | ― | [77] |
| 4 | 298–323 K, Pr = 2–5a | C-JMAK (n = 1) | Nucleation and growth (one-dimensional diffusion) | 27 | [78] |
| 5 | 298–313 K, Pr = 2–5 | C-JMAK (n = 1) | Nucleation and growth (one-dimensional diffusion) | 30–40 | [79] |
| 6 | 303–333 K, Pr = 2 | Jander | Diffusion of hydrogen | 27.7 | [80] |
| 7 | 303 K, 0.6–1 MPa | Chou | Diffusion of hydrogen | ― | [24] |
| Note: a Pr is the ratio of pressure to equilibrium pressure. | |||||
DownLoad:
CSV
| No. | HSAs | Preparation methods | Test conditions | Kinetic model | RCS | E / (kJ∙mol−1) | Ref. |
| 1 | Mg−30wt% LaNi5 | MA; HC | 302−423 K, 1 MPa | Chou | Surface penetration; Diffusion of hydrogen | 28.0 (ab); 25.2 (ab) | [25] |
| 2 | La1.5Ni0.5Mg17 | HC | 523−573 K, 0.755 MPa | Jander | Diffusion of hydrogen | 90 (ab) | [60] |
| 3 | Nd4Mg80Ni8 | Melting | 373−623 K, 3.4 MPa; 564−620 K, Vacuum | Chou | Diffusion of hydrogen (ab); Surface penetration (de) | 82.3 (ab) 97.5 (de) | [101] |
| 4 | Mg18In1Ni3 | MA | 493−583 K, Vacuum | C-JMAK (n = 1) | Nucleation and growth (one-dimensional diffusion) | 107 (de) | [102] |
| 5 | LaNiMg17 | MA | 553−623 K, 0.755 MPa | Chou | Diffusion of hydrogen | 71 (ab) | [103] |
| 6 | Mg−Y2O3; Mg−Y | Arc melting | 473−573 K, 3 MPa | C-JMAK | ― | 79.9 (ab) 56.2 (ab) | [104] |
| 7 | Mg80Ce18Ni2 | Melting | 523−585 K, 3.5 MPa | C-JMAK (n = 0.53) | Nucleation and growth (one-dimensional diffusion) | 63 (de) | [105] |
| 8 | Mg12NiY | Melting | 523−623 K, Vacuum | C-JMAK (n = 0.6−0.8) | ― | 44.96 (de) | [106] |
| 9 | Mg2In0.1Ni | Melting | 467−507 K, Vacuum | C-JMAK (n = 0.6−0.8) | Nucleation and growth (one-dimensional diffusion) | 28.9 (de) | [107] |
| 10 | Mg−TiH1.971−TiH1.5 | HC | 298−673 K, 4 MPa; 473−673 K, Vacuum | C-JMAK (n = 0.3−1.1) | Nucleation and growth (one-dimensional diffusion) | 12.5 (ab); 46.2 (de) | [108] |
DownLoad:
CSV
