Uniform nanoplating of metallic magnesium film on titanium dioxide nanotubes as a skeleton for reversible Na metal anode

Jinshan Wang; Feng Li; Si Zhao; Lituo Zheng; Yiyin Huang; Zhensheng Hong

doi:10.1007/s12613-023-2685-7

Volume 30 Issue 10

Oct. 2023

Turn off MathJax

Article Contents

Article Navigation > International Journal of Minerals, Metallurgy and Materials > 2023 > 30(10): 1868-1877

Jinshan Wang, Feng Li, Si Zhao, Lituo Zheng, Yiyin Huang, and Zhensheng Hong, Uniform nanoplating of metallic magnesium film on titanium dioxide nanotubes as a skeleton for reversible Na metal anode, Int. J. Miner. Metall. Mater., 30(2023), No. 10, pp. 1868-1877. https://doi.org/10.1007/s12613-023-2685-7

Cite this article as:

Jinshan Wang, Feng Li, Si Zhao, Lituo Zheng, Yiyin Huang, and Zhensheng Hong, Uniform nanoplating of metallic magnesium film on titanium dioxide nanotubes as a skeleton for reversible Na metal anode, Int. J. Miner. Metall. Mater., 30(2023), No. 10, pp. 1868-1877. https://doi.org/10.1007/s12613-023-2685-7

Citation:

PDF( 22306 KB)

Research Article

Uniform nanoplating of metallic magnesium film on titanium dioxide nanotubes as a skeleton for reversible Na metal anode

+ Author Affiliations

Corresponding authors:
Lituo Zheng E-mail: zhenglituo@fjnu.edu.cn

Zhensheng Hong E-mail: zshong@fjnu.edu.cn
Received: 27 March 2023; Revised: 22 May 2023; Accepted: 29 May 2023; Available online: 31 May 2023

Abstract

Abstract

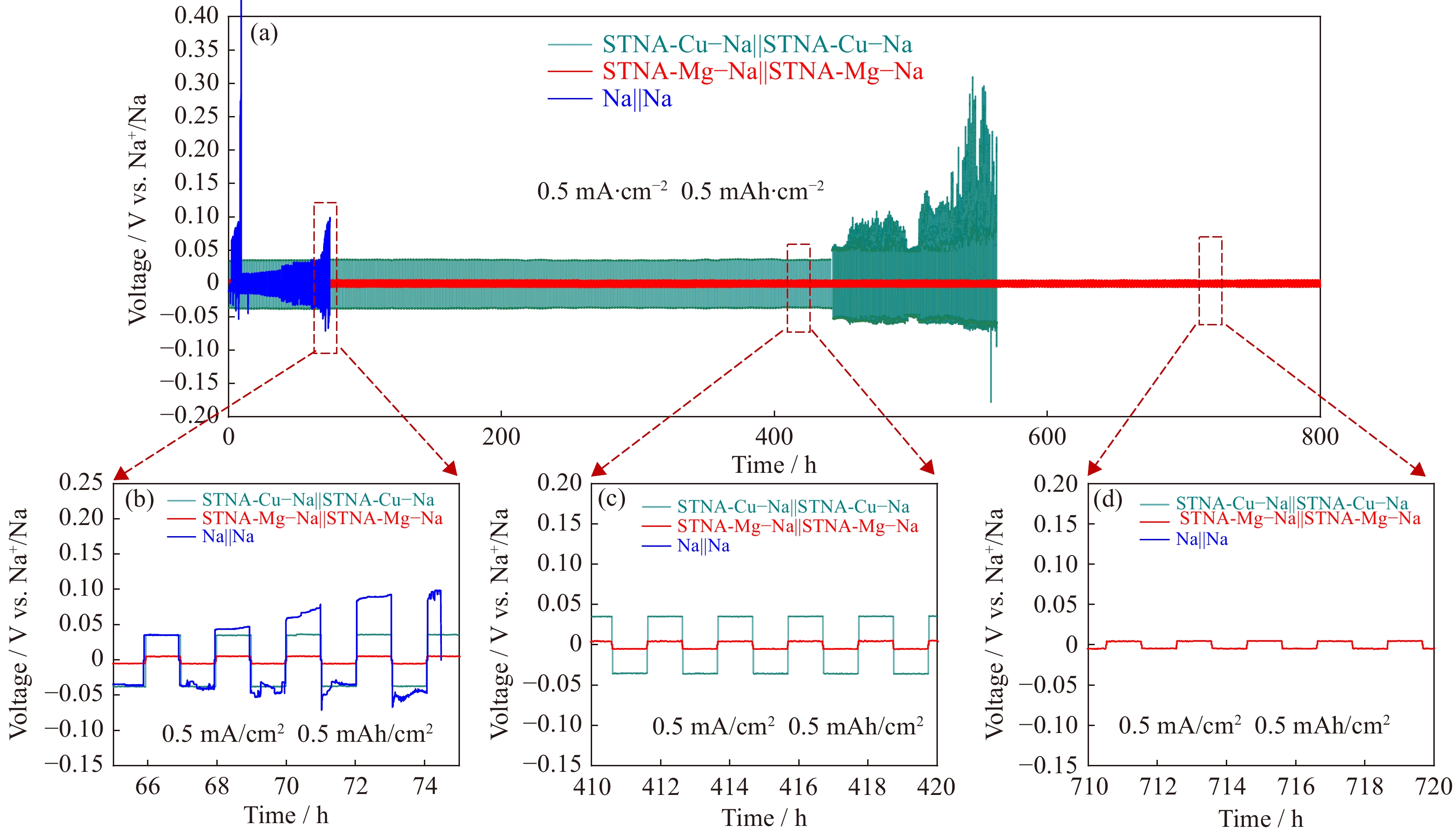

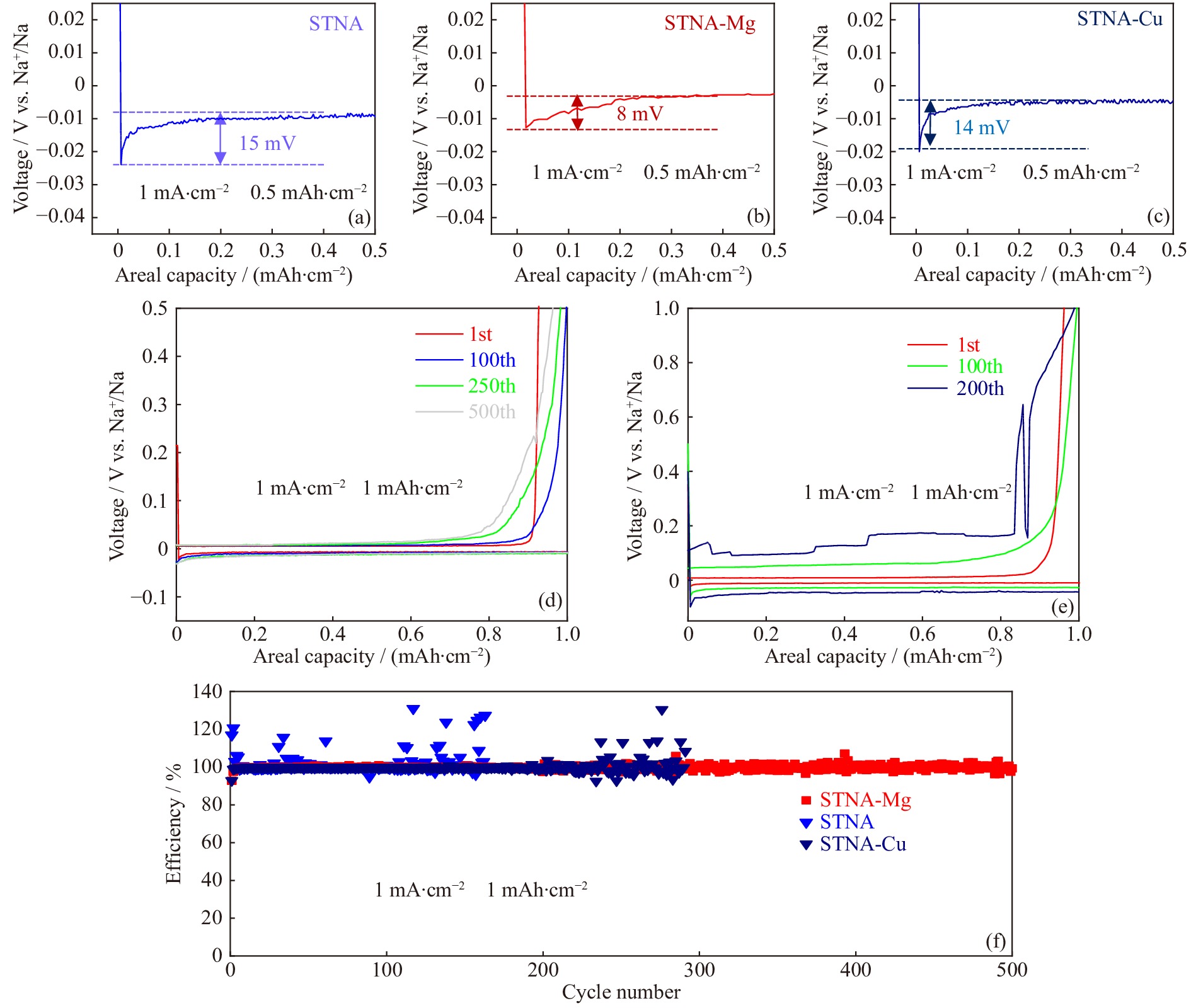

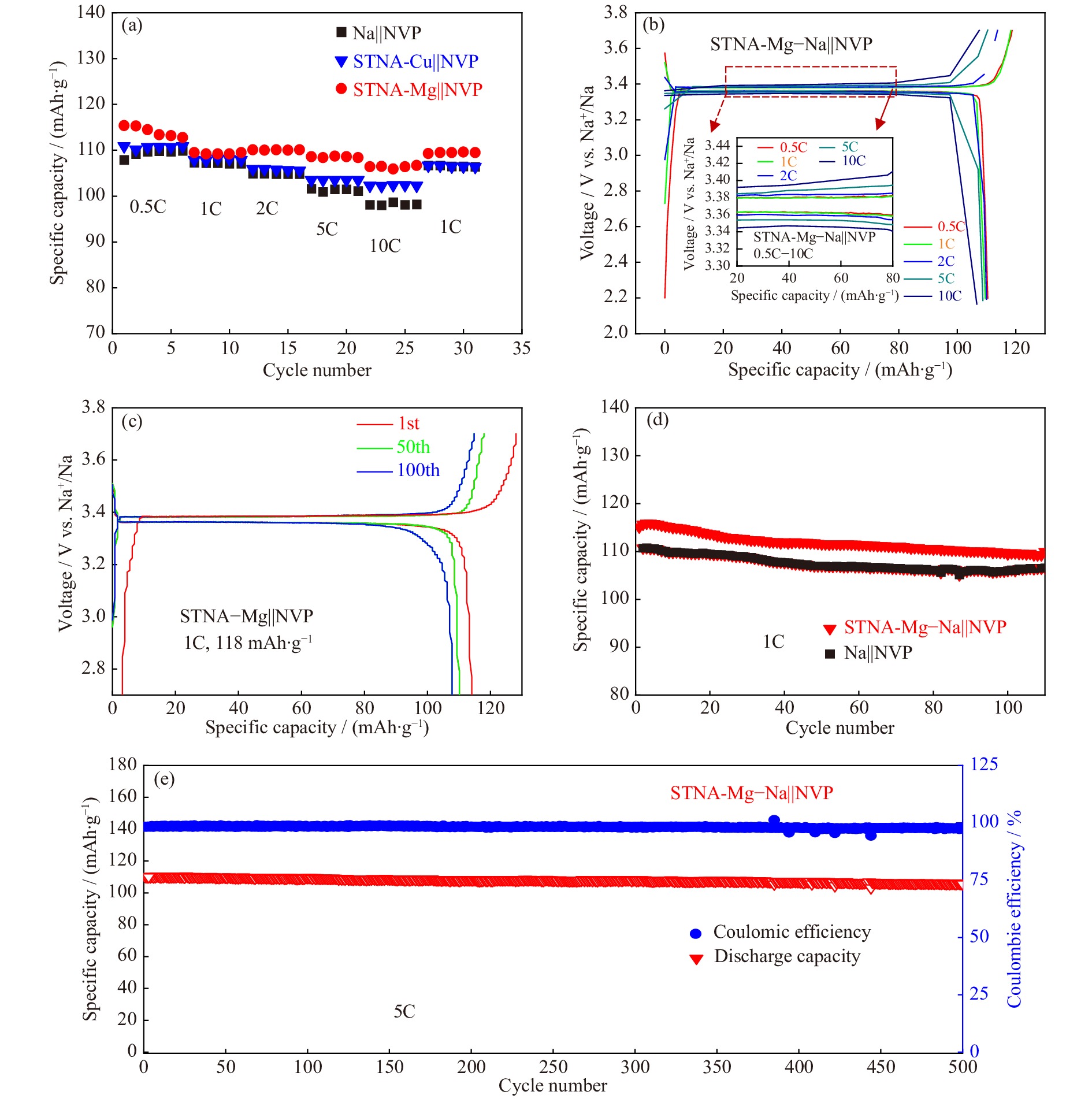

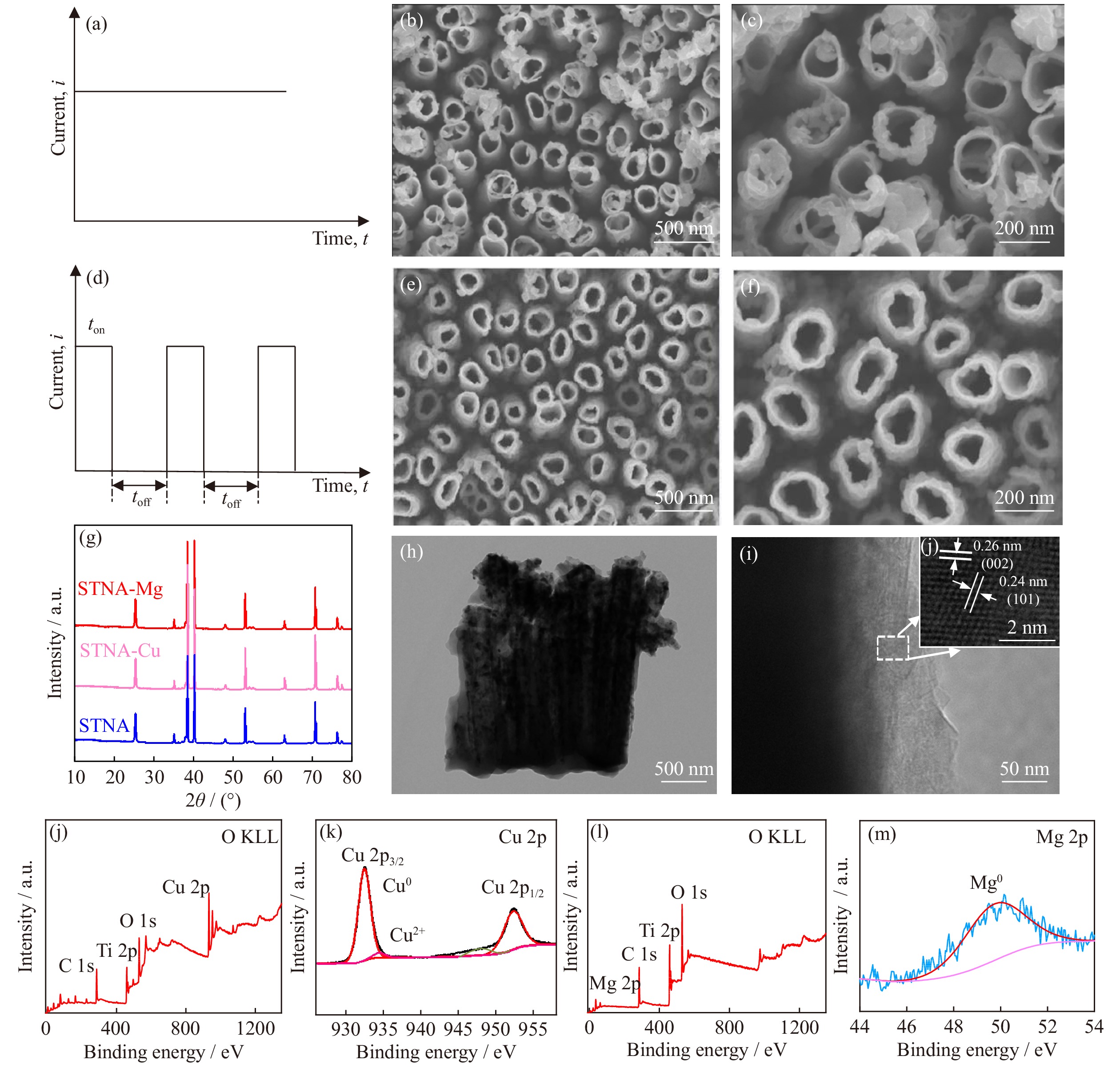

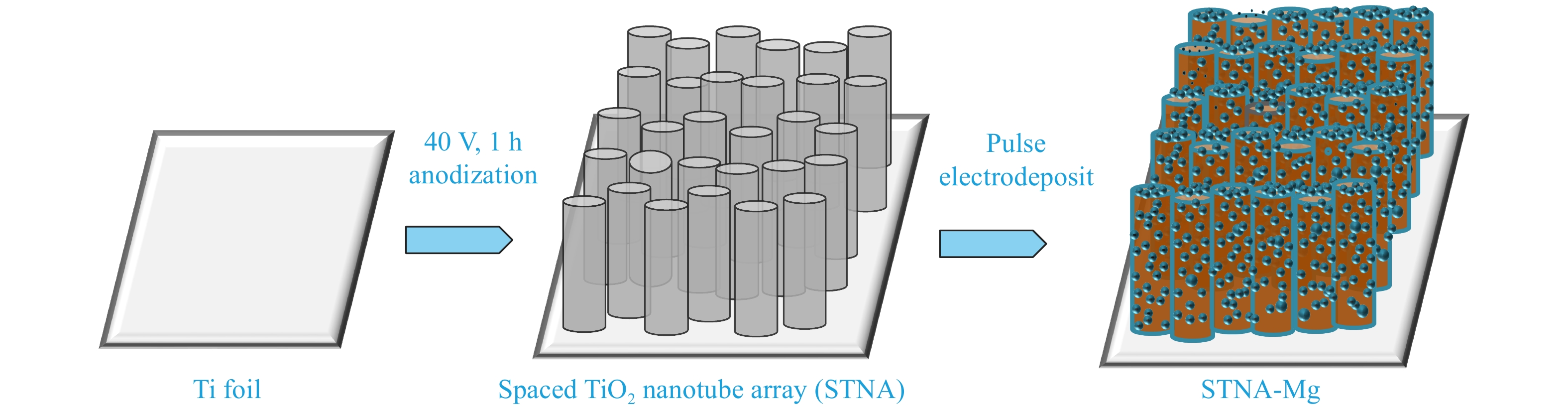

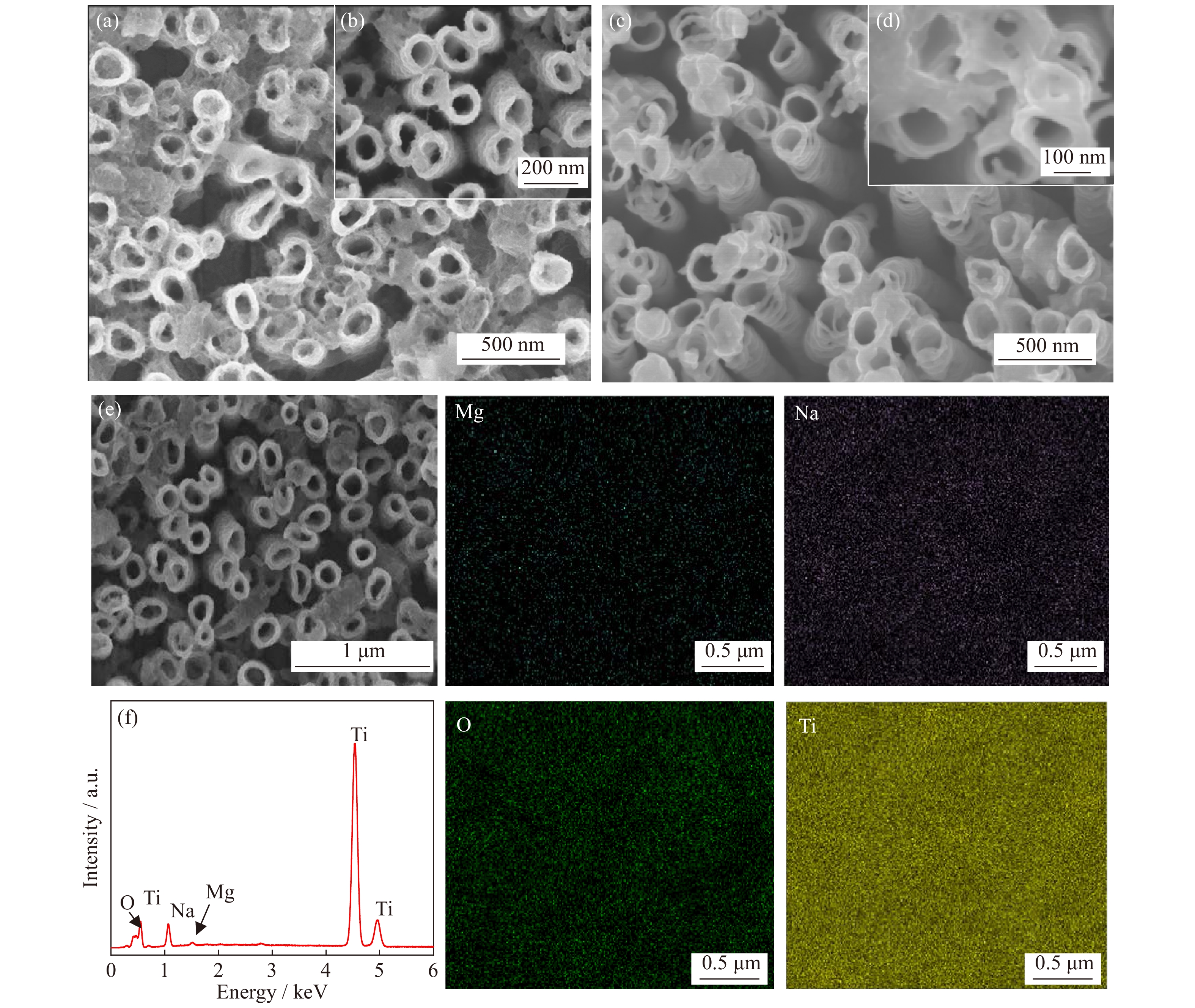

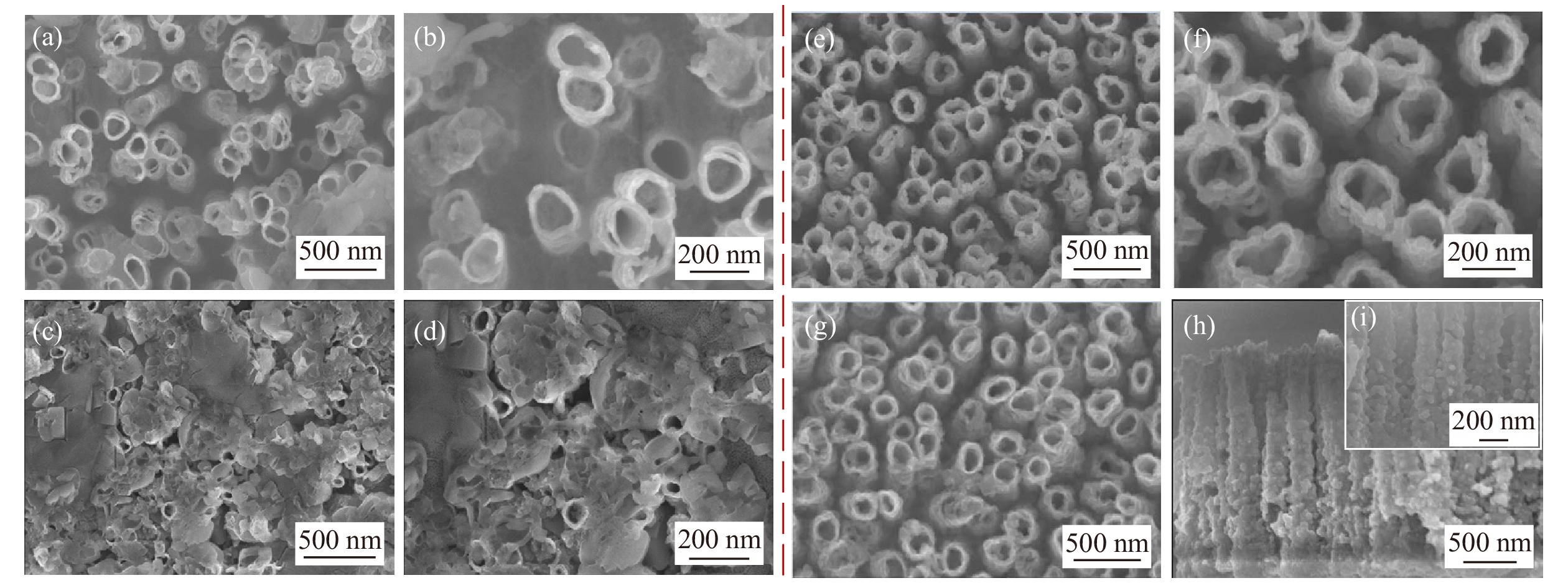

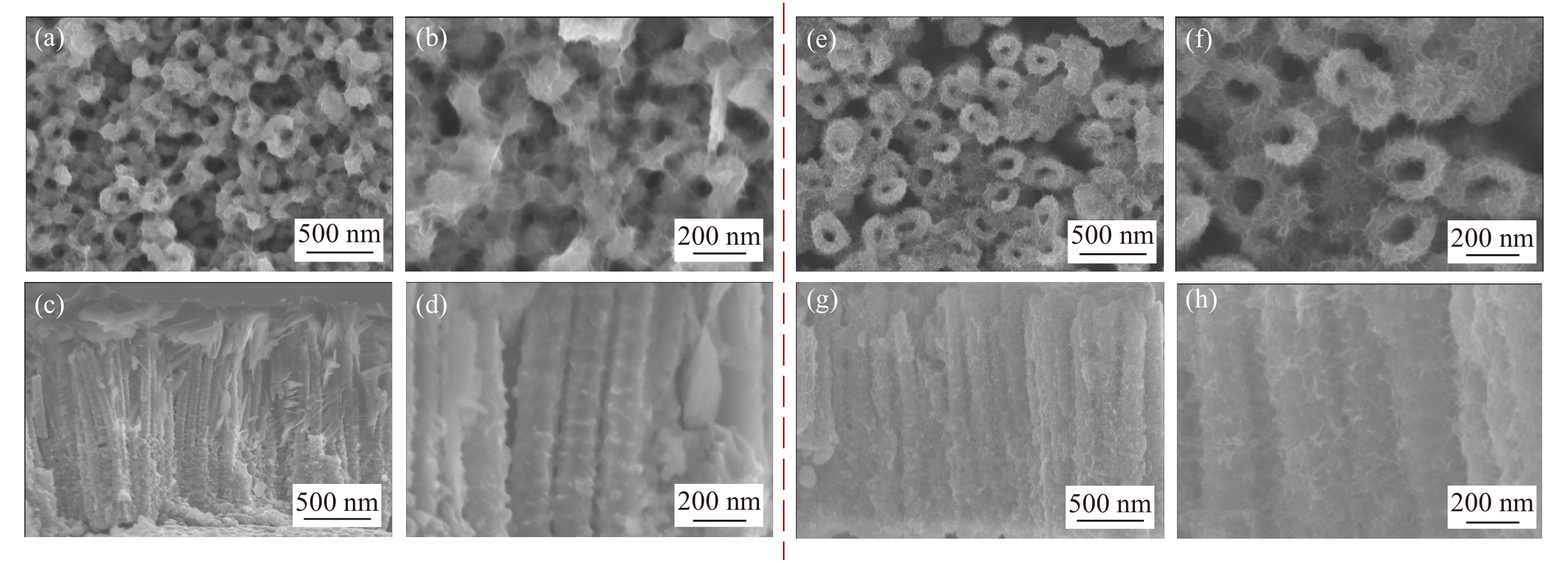

To meet the low-cost concept advocated by the sodium metal anode, this paper reports the use of a pulsed electrodeposition technology with ionic liquids as electrolytes to achieve uniform nanoplating of metallic magnesium films at around 20 nm on spaced titanium dioxide (TiO₂) nanotubes (STNA-Mg). First, the sodiophilic magnesium metal coating can effectively reduce the nucleation overpotential of sodium metal. Moreover, three-dimensional STNA can limit the volume expansion during sodium metal plating and stripping to achieve the ultrastable deposition and stripping of sodium metals with a high Coulombic efficiency of up to 99.5% and a small voltage polarization of 5 mV in symmetric Na||Na batteries. In addition, the comparative study of sodium metal deposition behavior of STNA-Mg and STNA-Cu prepared by the same route further confirmed the advantage of magnesium metal to guide sodium metal growth. Finally, the prepared STNA-Mg–Na metal anode and commercial sodium vanadium phosphate cathode were assembled into a full cell, delivering a discharge capacity of 110.2 mAh·g⁻¹ with a retention rate of 95.6% after 110 cycles at 1C rate.
- sodium metal anode;
- titanium dioxide nanotubes;
- skeleton;
- electrodeposition;
- metallic magnesium coating
