Xu Zhao, Naitao Gao, Shengcheng Wu, Shaozhen Li, and Sujuan Wu, Enhancing performance of low-temperature processed CsPbI2Br all-inorganic perovskite solar cells using polyethylene oxide-modified TiO2, Int. J. Miner. Metall. Mater., 31(2024), No. 4, pp.786-794. https://dx.doi.org/10.1007/s12613-023-2742-2
|
Perovskite solar cells (PSCs) have exhibited a bright future for the next generation of photovoltaic technology due to their low-cost, simple process, and high power conversion efficiency (PCE) [1]. Among them, inorganic cesium lead halide perovskite has attracted great interests because of their good thermal stability [2–3]. Efficiency of all-inorganic PSCs without hole transport layer (HTL) has increased from 2.9% in 2015 to 18.05% in 2023 [4–5]. Although the CsPbI3 has the most suitable band gap (1.73 eV), it is easy to change from the cubic phase (α-CsPbI3) to non-photoactive δ-phase due to its high humidity sensitivity [6]. The CsPbBr3 material reveals high moisture-sustained property, but its band-gap (close to 2.3 eV) is too large as a light-harvesting layer, which will seriously decrease the PCE of devices [7]. Fortunately, CsPbI2Br material is a good choice among the cesium lead halide perovskites due to its appropriate band gap (1.91 eV) and excellent thermal stability. Although the CsPbI2Br is a particularly popular perovskite material, the PCE of CsPbI2Br PSCs is lower than its theoretical limit (over 22%) [6]. Recently, CsPbI2Br-based PSCs develop rapidly. The CsPbI2Br-based PSCs with SnO2/ZnO bilayer electron transport layer (ETL) have achieved a PCE of 14.6% [8]. Thereafter, the PCE of CsPbI2Br PSCs has been increased to 15.25% by EU(AC)3 doping into the precursor solution of CsPbI2Br and 16.42% by using Cs2CO3 as interfacial layer at the ZnO/CsPbI2Br interface, respectively [9–10]. Tang’s group [11] has achieved a PCE of 14.14% by inserting a dynamic healing interface in all-inorganic CsPbI2Br PSCs.
TiO2 film is usually used as an ETL in PSCs. However, the low conductivity and large oxygen vacancy in low-temperature processed TiO2 film limit its further development. Modifying or doping TiO2 film is one of the most popular methods to further enhance the PCE of PSCs based on TiO2 ETL. Yang’s group [12] has used yttrium-doped TiO2 to promote electron extraction and transfer, but the high trap density caused by oxygen vacancies at the TiO2/perovskite interface is still unresolved. To solve this problem, some efforts have been tried. It has been found that TiO2 film modified by RbX (X = Br, I) can prepare high-quality CsPbI2Br layer on it [13]. Borophene quantum dots can passivate TiO2 film and form a cascade energy alignment to reduce charge recombination at TiO2/CsPbI2Br interface [14]. Wang et al. [15] have found that modification of TiO2 surface by TiCl4 and TiCl3 mixture can increase the PCE of carbon-based CsPbI2Br PSCs. A Sn-doped TiO2 ETL is used to fabricated an efficient all-inorganic CsPbI2Br PSC and improve the stability of devices [16]. Furthermore, modification of TiO2 film by amorphous antimony sulfide can prepare a multi-contact ETL, resulting in an efficient carbon-based CsPbI2Br PSC with good thermal stability [17].
In fact, the introduction of appropriate organic polymers such as heparin sodium as a passivation layer can also effectively reduce recombination and improve PCE and stability of PSCs [18]. Polyethylene oxide (PEO) buffer layer has been employed to modify CsPbBr3 surface to improve crystallinity and prolong carrier lifetime, leading to enhance PCE and stability of PSCs [19–20]. The mixture of PEO and polyethylene glycol are used as additives to improve the stability of CH3NH3PbI3-based PSCs [21]. Based on above reports, it can be inferred that the PEO can promote the crystallization and improve the stability of perovskite material. Until now, PEO has not been used to optimize the TiO2/CsPbI2Br interface. In order to further passivate trap states and promote carrier transport, low-temperature processed TiO2 ETL has been treated by PEO in this work. On the other hand, even though the PCE of PSCs has been greatly enhanced, organic HTL and evaporated Ag electrode both increase cost and reduce stability of PSCs. To address these issues, CsPbI2Br all-inorganic PSCs are studied.
In this work, the F-doped SnO2 glass (FTO) is used as substrate. All-inorganic planar PSCs with a structure of FTO/TiO2/CsPbI2Br/carbon have been studied. Here, CsPbI2Br perovskite layer is prepared by a low-temperature process and annealed only at 160°C. For the convenience of demonstration, two kinds of CsPbI2Br films/PSCs are investigated: the PEO-film/PSC and reference-film/PSC are related to CsPbI2Br film deposited on TiO2 film with and without PEO modification, respectively. The TiO2/PEO film corresponds to the TiO2 film with PEO modification. The concentrations of PEO solution have been optimized. The champion PCE of PEO-PSC is increased to 11.24% from 9.13% of Reference-PSC at the optimal process. Moreover, PEO-PSCs demonstrate less hysteresis behavior and better stability. The PCE of unsealed PEO-PSC can remain close to 90% of its original value after 20 d stored in air with a (20 ± 5)% humidity at 25°C. The characterizations confirm that PEO passivation layer can effectively reduce defects and non-radiative recombination at TiO2/CsPbI2Br interface and perovskite film to promote charge transfer.
Polyethylene oxide (PEO, M.W. 100000) was purchased from Alfa Aesar. PEO solutions were prepared by dissolving the PEO in chlorobenzene (CB) solvent with different concentrations and stirred for overnight, respectively. The PEO solution was deposited on TiO2 surface at 4000 r/min for 30 s, then annealed at 100°C for 10 min. The CsPbI2Br precursor solution with 277 mg PbI2, 312 mg CsI, and 220 mg PbBr2 in 1 mL DMSO solvent was spin-coated on TiO2 films at 2500 r/min for 30 s. Next, these films were annealed at 160°C for 10 min. The area of PSCs was 0.095 cm2. The photo-current of PEO/TiO2 and TiO2 films were gotten from conductive atomic force microscopy (C-AFM) measurements under 10 mW/cm2 irradiance with a white LED by an atomic force microscope (AFM) (Asylum Research, Cypher). Elemental distribution (EDS) mapping images were studied by a scanning electron microscopy (SEM, ZEISS ULTRA 55). The photo-voltage (TPV) and photo-current (TPC) decay were recorded by an electrochemical workstation (Zahner, Zennium) in dark. Contact angle was measured by an optical contact angle instrument (Dataphysics OCA Pro 15). All of characterizations were carried out in air. Other experimental materials, fabrication process of TiO2 film and carbon electrode, and characterization methods agree with our reported work [22].

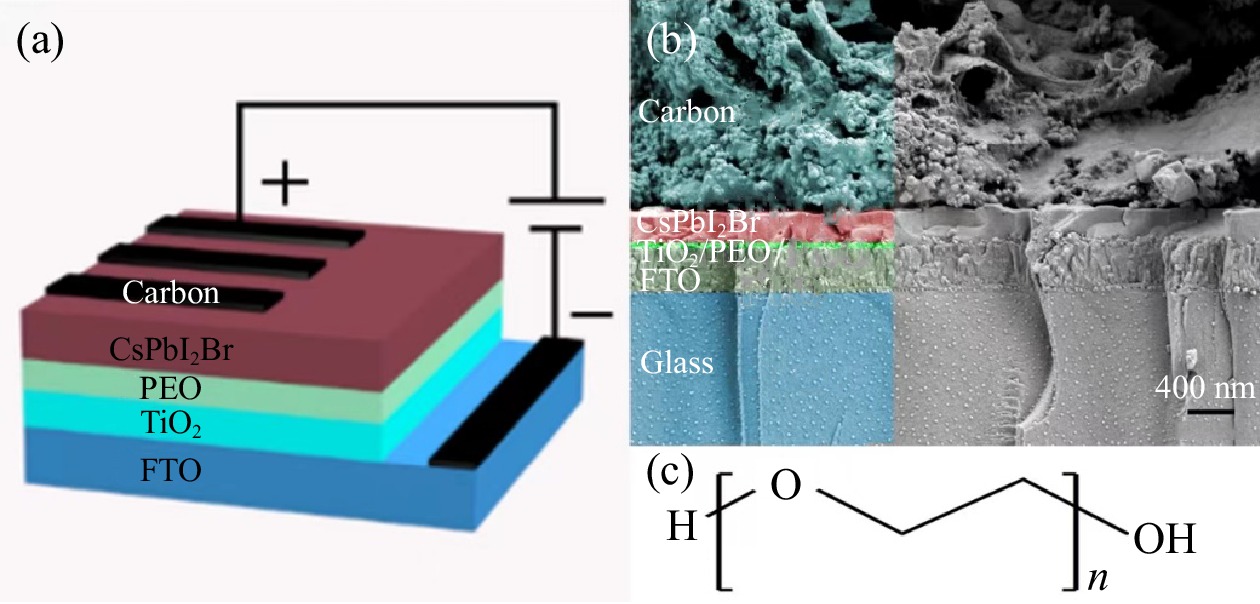

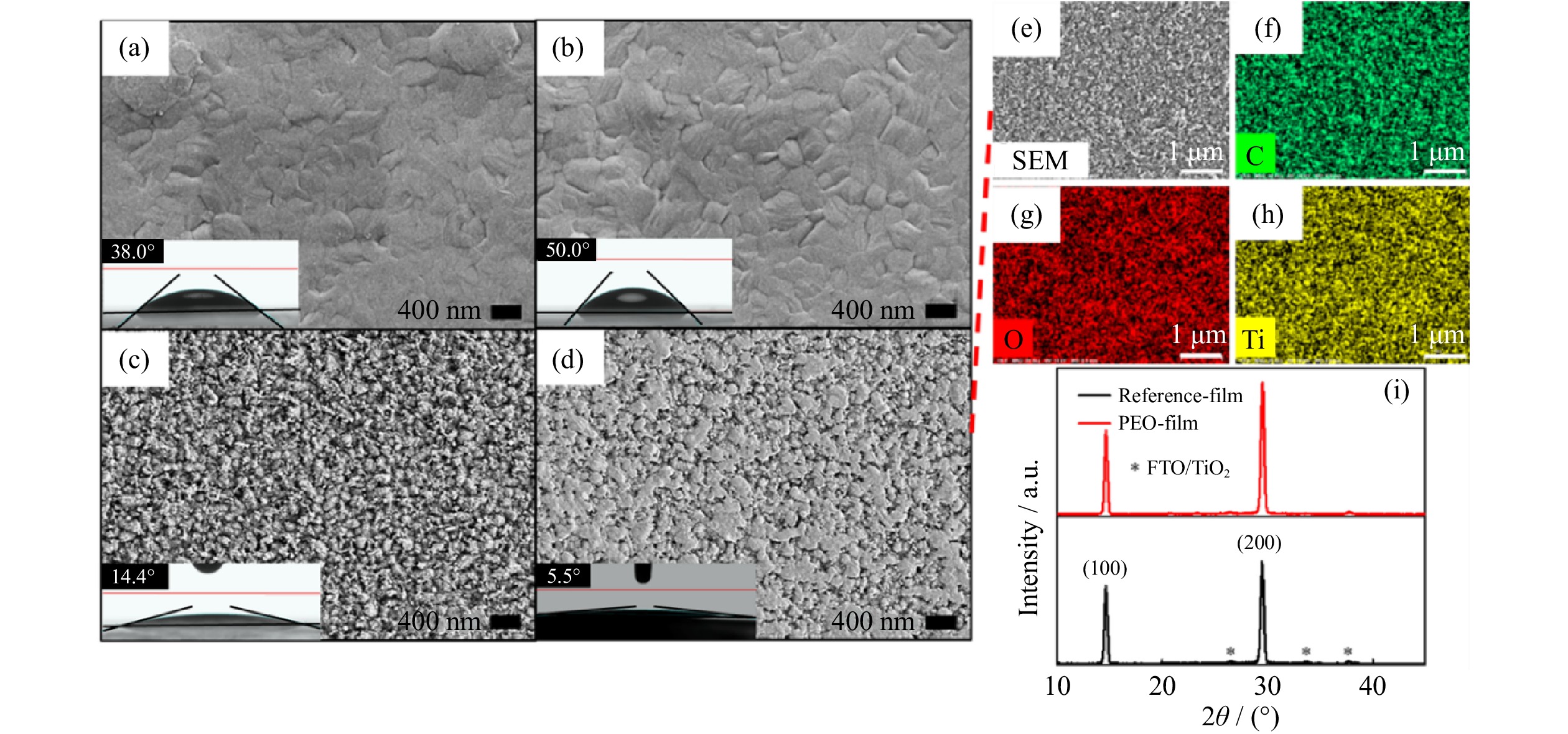

Fig. 1 demonstrates structure diagram of PEO-PSC, cross-sectional SEM micrograph of PEO-PSC, and PEO molecular structure. As presented in Fig. 1(b), a clear layer-by-layer structure can be seen in PEO-PSC. According to Fig. S1, average thicknesses of TiO2 and TiO2/CsPbI2Br films are 31 and 339.7 nm, respectively. The PEO layer is too thin to be seen in this scale. As presented in Fig. S1(c), it is about 4.83 nm. Fig. 2(a) and (b) presents SEM micrographs of Reference- and PEO-film. Compared to Reference-film, there are some smaller crystals in PEO-film and their grain boundaries tightly bound together with almost no pinholes on the surface. This phenomenon can be attributed to the fact that PEO polymer film uniformly triggers a heterogeneous nucleation with the perovskite precursor film at the solvent drying stage, resulting in smaller size and more uniform perovskite films [23]. On the other hand, the Fourier transform infrared (FTIR) characterizations confirm the interaction of ETL (or perovskite layer) and PEO in this report, which can help to improve electron transfer from perovskite to cathode for the superior photovoltaic performance of PSCs. This will be discussed in the following. Meanwhile, the inserted contact angles in PEO- and Reference-film are 50.0° and 38.0°, respectively. A larger contact angle in PEO-film is beneficial to improve hydrophobicity and inhibit the water invasion in perovskite film. Fig. 2(c) and (d) demonstrates the SEM images of TiO2 and TiO2/PEO films. The contact angles between TiO2 (or TiO2/PEO) and CB (the solvent of CsPbI2Br precursor solution) are inserted in Fig. 2(c) and (d). They are 14.4° and 5.5°, respectively. This result indicates that the TiO2/PEO surface makes the CsPbI2Br precursor solution easier to wet on it, which will help to prepare better CsPbI2Br film [19]. In order to confirm the existence of PEO on TiO2 film, Fig. 2(e)–(h) demonstrates EDS mapping images of TiO2/PEO film. The C element of PEO has been observed, confirming appearance of PEO on TiO2. To further explore the impact of PEO modification on CsPbI2Br layer. Fig. S2 demonstrates X-ray diffraction patterns (XRD) and transmittance spectra of FTO/TiO2 and FTO/TiO2/PEO. Noted that the PEO modification hardly affect the crystallinity and transmittance of TiO2 film. Fig. 2(i) demonstrates XRD of PEO- and Reference-film. The FTO/TiO2 refers to TiO2 film deposited on FTO substrate. Diffraction peaks locating at 14.6° and 29.5° correspond to the (100) and (200) crystal planes, respectively [7,22]. The diffraction peak position in PEO-film has not changed, indicating that PEO modification has no effect on perovskite crystal structure. The peak intensity in PEO-film is generally stronger than that of Reference-film, confirming that the PEO modification slightly increases the crystallinity of CsPbI2Br film. The PEO concentrations have been optimized by photovoltaic (PV) performance. Fig. S3 demonstrates current density–voltage (J–V) curves and PV parameters of PEO-PSCs as a function of PEO concentrations. Specific PV parameters are presented in Table S1. The PEO-PSCs achieve the best PV performance at the PEO concentration of 0.18 mg/mL. Thus, this is the condition of PEO-PSC/film from Figs. 3 to 8 in all our other experiments.

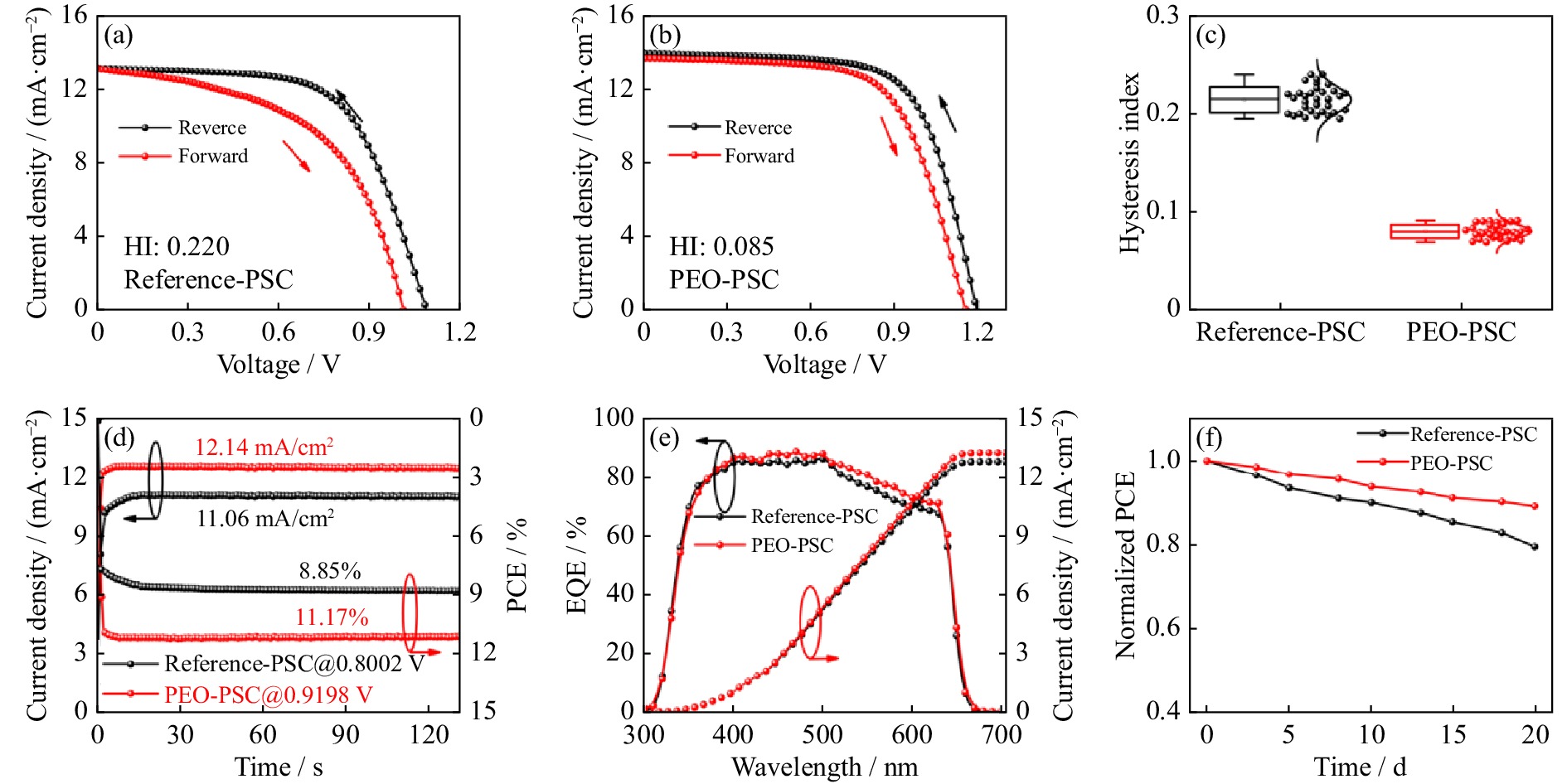

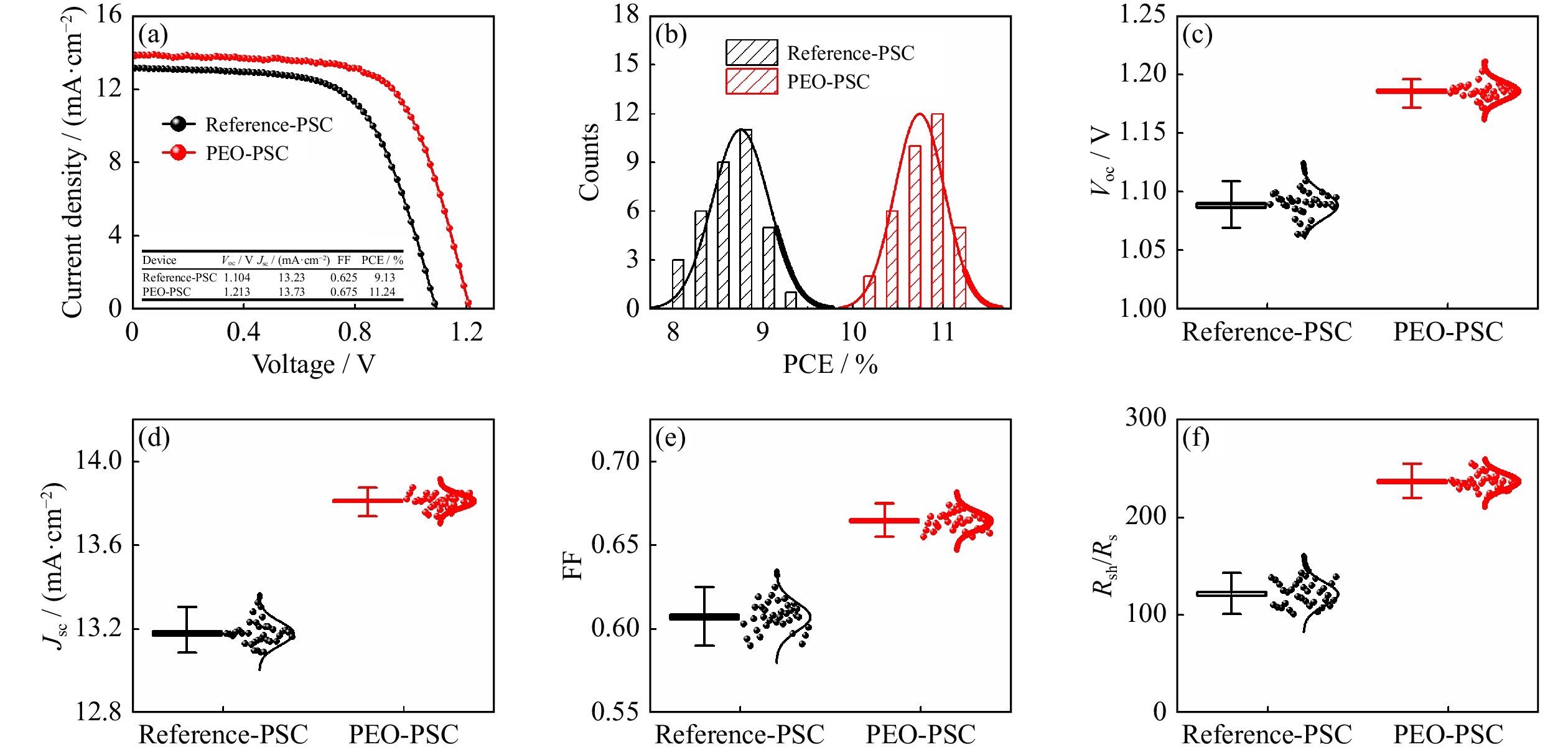

Fig. 3(a) presents J–V characteristics of PEO- and Reference-PSC measured under reverse (RS) scanning direction. Noted that the PCE, open circuit voltage (Voc), short-circuit current density (Jsc), fill factor (FF), and the ratio of parallel resistance to series resistance (Rsh/Rs) of PEO-PSCs are larger than those of Reference-PSCs, resulting in an increased champion PCE of 11.24% in PEO-PSCs compared to the 9.13% of Reference-PSCs. Table S2 lists the reported PV parameter statistics about carbon-based CsPbI2Br PSCs. Although the champion PCE of PEO-PSCs is not the best, the PCE of PEO-PSCs has comparability with the reported works. Moreover, our carbon-based HTL-free inorganic PEO-PSCs are prepared by a low-temperature process. In future work, we will try to further improve the PCE by optimizing fabrication process and introducing additives. The FF correlates with Rsh/Rs and larger FF in PEO-PSCs can be mainly owed to higher Rsh/Rs ratio. Fig. 3(b)–(f) shows the distributions of PV parameters and Rsh/Rs from 35 devices for Reference- and PEO-PSCs. As seen in Fig. 3(b)–(e) and S4, the PV performance of PEO-PSCs has been improved and PV parameters distribute narrower in PEO-PSCs compared to those of Reference-PSCs. Detailed parameters corresponding to Fig. S4 are listed in Tables S3 and S4. The average PCE values for Reference- and PEO-PSCs are 8.70% and 10.89%, respectively. These results confirm that PEO-PSCs have better PV performance and reproductivity [24–25]. To study the impact of PEO modification on hysteresis effect of PSCs, Fig. 4(a) and (b) presents J–V curves of PEO- and Reference-PSC measured under RS and forward (FS) scanning directions. Their specific PV parameters are displayed in Table 1. Hysteresis index (HI) is usually employed to refer hysteresis effect of PSCs using Eq. (1) [26]:
| Device | Scan direction | Voc / V | Jsc / (mA·cm−2) | FF | PCE / % | HI |
| Reference-PSC | RS | 1.104 | 13.23 | 0.625 | 9.13 | 0.212 |
| FS | 1.027 | 13.09 | 0.535 | 7.19 | ||
| PEO-PSC | RS | 1.213 | 13.73 | 0.675 | 11.24 | 0.085 |
| FS | 1.156 | 13.71 | 0.648 | 10.28 |
DownLoad:
CSV
|
HI=PCERS−PCEFSPCERS |
(1) |
where PCERS and PCEFS refer to the PCE measured in RS and FS scanning directions, respectively. As displayed in Fig. 4(a) and (b) and Table 1, the HI values decrease from 0.220 in Reference-PSC to 0.085 in PEO-PSC. The HI distributions from 35 devices for Reference- and PEO-PSCs are displayed in Figs. 4(c) and S5. Table S5 lists HI values of Reference- and PEO-PSCs from 35 devices each batch. The average HI values for Reference- and PEO-PSCs are 0.214 and 0.081, respectively. Obviously, there is a much lower average HI in PEO-PSCs compare to Reference-PSCs, confirming that hysteresis effects in PEO-PSC have been inhibited. The exact reasons and mechanisms about hysteresis behavior are still a controversial issue. Photo-induced ionic migration, charge recombination, ferroelectric properties, and imbalance of electron and hole mobility are possibly the major reasons of PV hysteresis [27–28]. The hysteresis behavior relates to steady-state current density output. The shorter time to reach steady-state, a smaller HI value is [29]. To verify the authenticity of J–V results, their steady-state PCE and current density (Isc) output for PEO-PSCs (@0.9198V) and Reference-PSC (@0.8002V) at their respective voltages and maximum power point with a standard sun have been measured. As displayed in Fig. 4(d), the Isc in PEO-PSCs reaches a stable value faster than that of Reference-PSC. Thus, it takes less time to reach steady-state in PEO-PSCs, which can also indirectly explain the lower HI in PEO-PSCs [30–31]. At the same time, the PCE values of PEO- and Reference-PSC stabilize at 11.17% and 8.85%, respectively. Their Isc values are 12.14 and 11.06 mA/cm2, respectively. Furthermore, the integrated Isc and external quantum efficiency (EQE) curves of PEO- and Reference-PSC are demonstrated in Fig. 4(e). The respective integrated Isc are 13.26 and 12.86 mA/cm2, which are very close to their Jsc values obtained by the J–V curves (error less than 5%). To investigate the stability of PEO-PSCs, the normalized PCE evolution of unencapsulated Reference- and PEO-PSCs are observed in atmosphere with a (20 ± 5)% humidity at 25°C. As demonstrated in Fig. 4(f), the PCE of unsealed PEO-PSC still remains close to 90% (89.1%) of their original values after 20 d, while the PCE of Reference-PSC only remains 79.5% of their original values. This suggests that the PEO modification can improve the stability of devices.

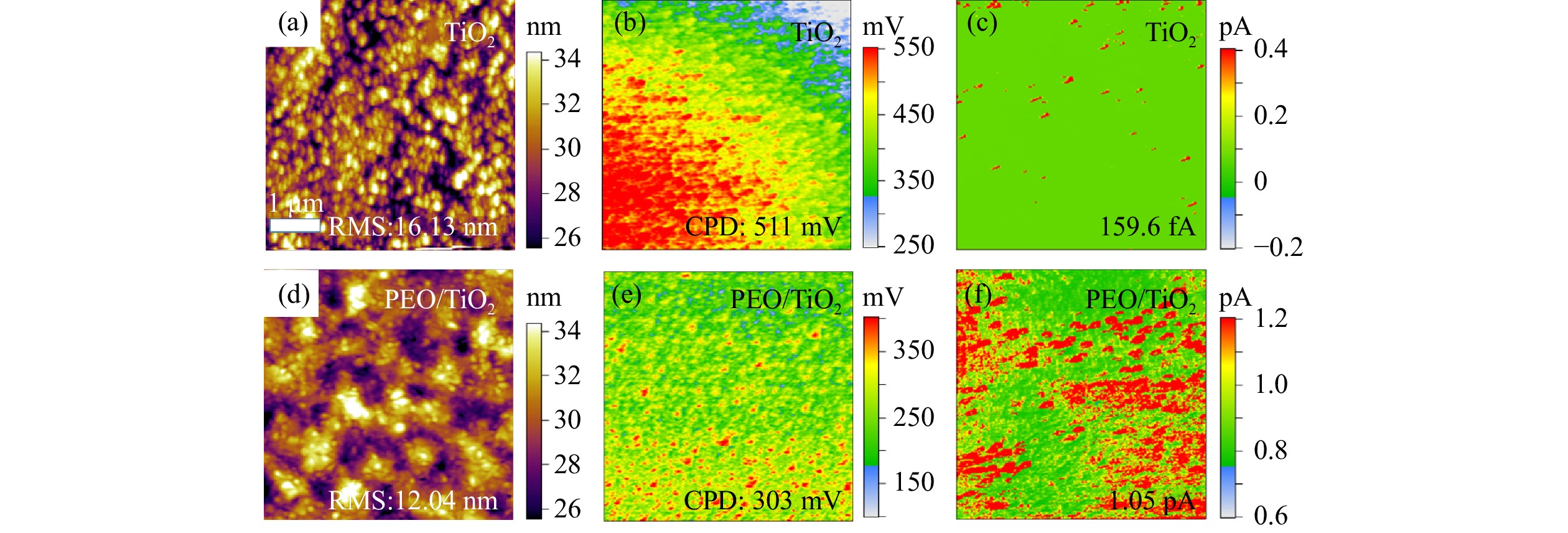

Fig. 5 displays AFM micrographs of TiO2 and TiO2/PEO films. Root means square (RMS) roughness values for TiO2/PEO and TiO2 are 12.04 and 16.13 nm, respectively. The result confirms that TiO2/PEO film is smoother compared to TiO2 film, which will benefit to improve the contact at TiO2/CsPbI2Br interface. It is known that Kelvin probe atomic force microscopy (KPFM) can map surface potentials on local grains and grain boundaries. Fig. 5(b) and (e) demonstrates KPFM images of TiO2 and TiO2/PEO samples. Obviously, the average contact potential difference (CPD) of TiO2 (511 mV) is higher than that of TiO2/PEO (303 mV). The lower average CPD means that the work function is lower in TiO2/PEO, which is consistent with the reported work [23]. It is reported that the reduced ETL work function can increase the built in potential inside the devices. These will not only increase Voc, but also promote carrier extraction and increase Jsc [31–32]. This agree with the increased Voc in PEO-PSCs. Fig. 5(c) and (f) shows C-AFM images and average current of TiO2 and TiO2/PEO film. Obviously, the average current in TiO2/PEO film is higher than that of the TiO2 film. As reported, local current agrees with the local photocurrent characteristics of device [33]. The increased photocurrent in C-AFM measurement confirms the enhanced Jsc in PEO-PSCs [32].
To research the reasons for the increased PCE in PEO-PSC, trap-state density (Nt) of ETL is characterized. The space charge-limited current (SCLC) method is introduced to quantify Nt of ETL [33–34]. Fig. 6 shows the dark current–voltage (I–V) curves and the device structure. As shown in the horizontal coordinate of Fig. 6, the linear region at the low bias voltage corresponds to the ohmic type response. As the bias voltage increases in the middle region, a significant increase in current injection is considered to be the trap-filling process (TFL) [35–36]. The intersection between these two regions is defined as the trap-filling limit voltage (VTFL). The VTFL can be gotten from the I–V measurement, as displayed in Fig. 6. The Nt value can be calculated by the following Eq. (2) [35–36]:
|
Nt=2εε0VTFLqL2 |
(2) |
where q is the element charge (1.6 × 10−19 C); L is the thickness of TiO2/PEO or TiO2 film; the ε and ε0 are the relative permittivity of ETL (about 50) and vacuum permittivity (about 8.854 × 10−12 F/m), respectively. As presented in Fig. 6, the values of VTFL in TiO2 and TiO2/PEO are 1.313 and 0.803 V, respectively. Therefore, the corresponding Nt values of TiO2 and TiO2/PEO are 7.56 × 1015 and 3.43 × 1015 cm−3, respectively. This indicates that PEO modification can indeed reduce the Nt of TiO2 ETL to promote electron transport and collection [35,37].
Fig. 7(a) presents UV–vis spectra of Reference- and PEO-film. Noted that the PEO modification does not affect the absorbance of CsPbI2Br perovskite layer. Therefore, the PEO modification hardly influence on the optical absorbance and bandgap of CsPbI2Br perovskite film [37]. Fig. 7(b) presents steady-state photoluminescence (PL) of PEO- and Reference-film. There is a weaker PL peak intensity in PEO-film than in the Reference-film. As shown in the device structure diagram inserted in Fig. 7(b), the CsPbI2Br perovskite film are deposited on the FTO/TiO2 and FTO/TiO2/PEO substrates, respectively. The intensity of PL peak in PEO-film reduces, suggesting that the PEO modification is more conducive to the transport and extraction of electrons at the interface [37–38]. This result is consistent with J–V measurements. Thus, there is a higher electron extraction efficiency in PEO-film than the Reference-film.
The electrochemical impedance spectra (EIS) are often applied to study interface charge transfer and recombination process. Fig. 7(c) demonstrates Nyquist curves of PEO- and Reference-PSC measured under illumination with a bias of −1.1 V. Measured data are fitted by the equivalent-circuit inserted in Nyquist plots. The solid lines and dots correspond to the fitted results and measured data, respectively. Noted that dots and solid lines in Fig. 7(c) coincide well, indicating that the fitting circuit is feasible. In the fitted plots, series resistance (Rs) is related to the sheet resistance of FTO substrate and the contact resistance of PSCs, transport resistance (Rtra) refers to the transfer resistance at TiO2/perovskite/C interface, and the recombination resistance (Rrec) is the composite resistance of device [39–41]. To better fit experimental results, the phase angle element (CPE) is employed to replace original capacitor (C) [42]. The detailed parameters are displayed in Table S6. The similar Rs indicate that the external resistance is homologous in Reference- and PEO-PSC. However, the value of Rtra is lower and Rrec is larger in PEO-PSC compared to Reference-PSC, as presented in Fig. 7(d). In this work, the perovskite/carbon interface is similar. Thus, the Rtra and Rrec values correlated with the carrier recombination and transport process at TiO2/CsPbI2Br interface and perovskite film. A lower Rtra and a higher Rrec in PSCs suggest the promoted charge transport and inhibited carrier recombination in PEO-PSC, which can contribute to obtain better PV performance [43–44]. These confirm that photogenerated electrons can be extracted easier and there is a lower recombination rates at the TiO2/CsPbI2Br interface of PEO-PSC than those of Reference-PSCs.

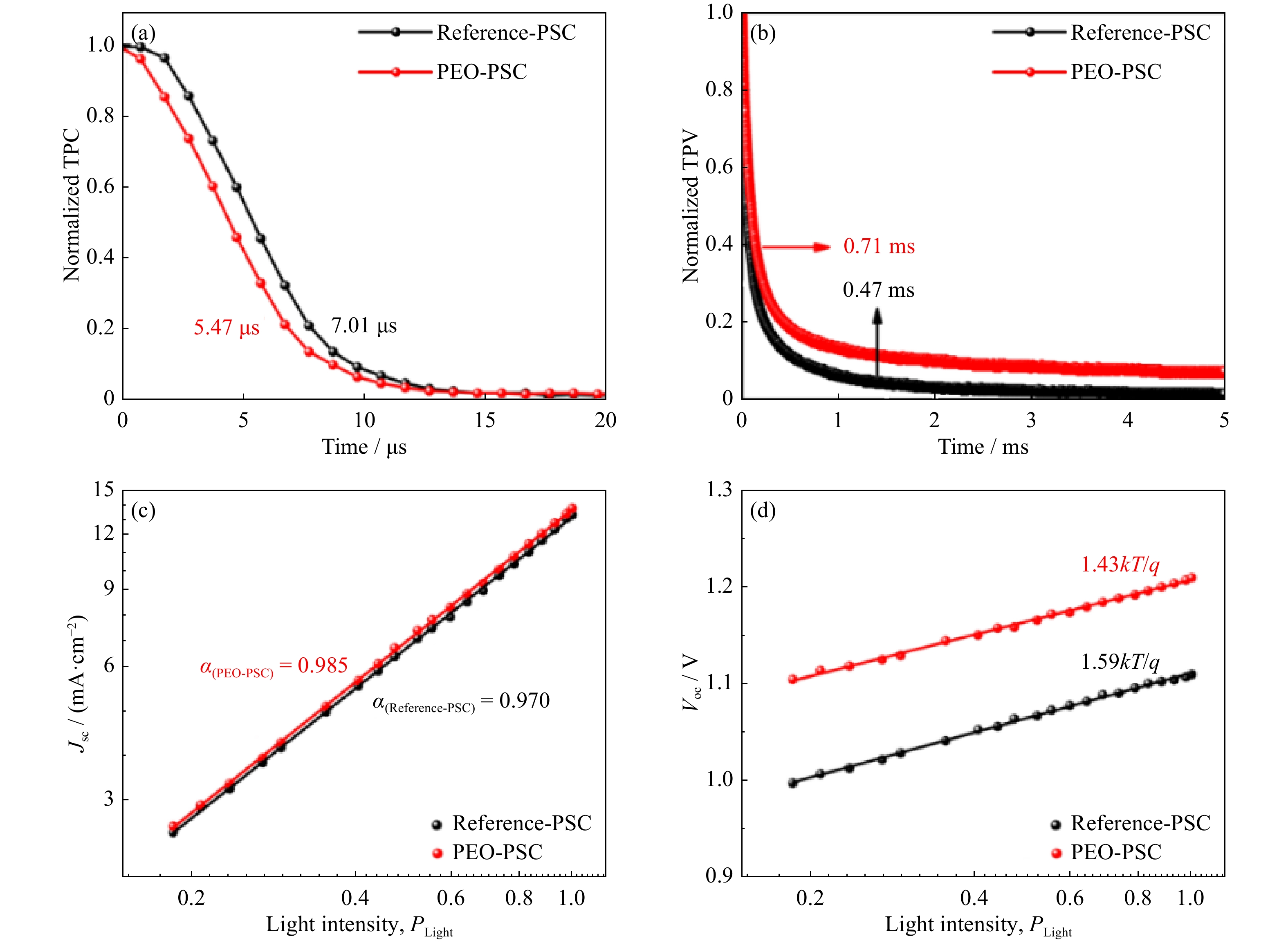

To further explore charge transport characteristics in the two different PSCs, Fig. 8(a) and (b) displays the TPC and TPV curves. The TPC response decrease from 7.01 μs of Reference-PSC to 5.47 μs of PEO-PSCs, indicating that there is more efficient charge transport in PEO-PSC, which is more favorable to increase FF and Jsc of device [45]. The TPV decay relates to carrier recombination lifetime. As presented in Fig. 8(b), the TPV response time increase from 0.47 ms of Reference-PSC to 0.71 ms of PEO-PSC. The longer lifetime suggests that charge recombination in PEO-PSC is effectively reduced [46–47]. This result confirms that PEO modification can effectively reduce carrier recombination rates at TiO2/CsPbI2Br interface, leading to increasing Voc of PEO-PSC. The curves of Voc and Jsc change with the natural logarithms of various light intensities (Plight) are tested. The dependence of Jsc and Voc on Plight follows Eq. (3) [45,48]:
|
Jsc∝Pαlight(α≤1) |
(3) |
where α is an exponential factor. The α value is nearby 1 in PSCs if space charges do not have impact on it [45,49]. As listed in Fig. 8(c), the α values of PEO- and Reference-PSC are 0.985 and 0.970, respectively. They are all close to 1, suggesting that the bimolecular recombination is negligible in PEO- and Reference-PSC. The following Eq. (4) can be used to study the linear relationship between Voc and Plight [45,50–51].
|
Voc=nkTqln(Plight)+c |
(4) |
where n is the ideal factor, T represent the absolute temperature, k corresponds to the boltzmann constant, and c refer to a constant [45,50–51]. It is reported that the slope is higher than that of kT/q, suggesting that additional trap-assisted recombination appears in PSCs [52]. As listed in Fig. 8(d), the slopes of Voc versus Plight are 1.59kT/q of Reference-PSC and 1.43kT/q of PEO-PSC, respectively. Obviously, the slope in PEO-PSC is smaller than that of Reference-PSC. This result means that the energy loss caused by trap-assisted recombination in PEO-PSC is lower, confirming that PEO modification reduces charge recombination at TiO2/CsPbI2Br interface and perovskite film. All these measurements confirm that the PEO modification can decrease charge recombination rates and lead to improving PV performance.
In this work, a simple approach is employed to improve the PV performance and stability of low-temperature processed all-inorganic CsPbI2Br PSCs by introducing a facile and efficient interface passivation material PEO to modify the TiO2/CsPbI2Br interface. The PEO modification does not change the morphology and transmittance of TiO2 layer. Moreover, the inserted PEO layer can facilitate electron extraction and inhibit carrier recombination at TiO2/CsPbI2Br interface and perovskite film. At the optimal PEO concentration, PEO-PSCs without encapsulation achieve a champion PCE of 11.24% and steady-state PCE of 11.17% with less hysteresis behavior and better reproducibility, compare to the champion PCE of 9.13% in Reference-PSC. Furthermore, the unsealed PEO-PSCs demonstrate better stability in ambient air than the Reference PSC. This study provides a simple and efficient interfacial engineering method to fabricate efficient, stable, and low-cost PSCs by low-temperature process.
This work was financially supported by the Guangzhou Basic and Applied Basic Research Foundation, China (No. 303523).
All authors declare no conflict of interest.
The online version contains supplementary material available at https://doi.org/10.1007/s12613-023-2742-2.
